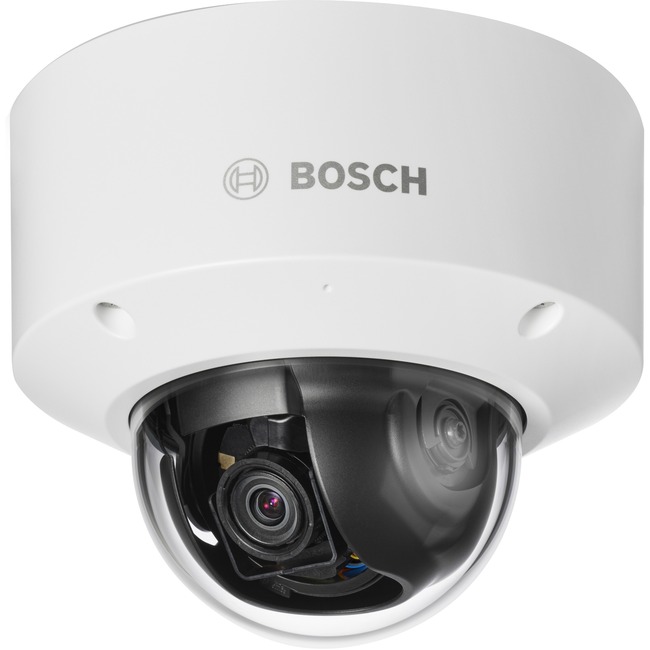

Bosch FLEXIDOME IP NDV-8502-R 2 Megapixel Indoor Full HD Network Camera - Color, Monochrome - Dome - Infrared Night Vision - H.264, MJPEG, H.265/HEVC, H.265 - 1920 x 1080 - 3 mm- 9 mm Varifocal Lens - CMOS - Surface Mount - IK10 - IP54 - Rain Resistant, Snow Resistant, Wind Resistance, Water Resistant
Infrared Night Vision - H.264, MJPEG, H.265/HEVC, H.265 - 1920 x 1080 - 3 mm- 9 mm Varifocal Lens - CMOS - Surface Mount - IK10 - IP54 - Rain Resistant, Snow Resistant, Wind Resistance, Water Resistant
| Field of View | Wide: 117º x 59º (H x V); Tele: 37º x 21º (H x V) |
| Impact Protection Rating | IK10 |
| Indoor/Outdoor | Indoor |
| Ingress Protection Rating | IP54 |
| Maximum Aperture | f/1.2 |
| Minimum Aperture | f/2.3 |
| Minimum Focal Length | 3 mm |
| Minimum Operating Temperature | -4°F (-20°C) |
| Night Vision Type | Infrared |
| Operating Humidity | 93% |
| Brand Name | Bosch |
| Color Supported | Monochrome |
| Color Supported | Color |
| Connectivity technology | Wired |
| Country of origin | Portugal |
| Diameter | 7" |
| Durability | Wind Resistance |
| Durability | Water Resistant |
| Durability | Rain Resistant |
| Durability | Snow Resistant |
| Effective Camera Resolution | 2 Megapixel |
| Environmental Certification | RoHS |
| Environmental Certification | REACH |
| Environmental Certification | China RoHS |
| Environmental Certification | WEEE |
| Environmentally Friendly | Yes |
| Features | Face Detection |
| Features | Region of Interest |
| Features | Privacy Masking |
| Features | Mirror |
| Features | Automatic Defog |
| Features | Day/Night |
| Features | Automatic White Balance |
| Features | Motion Detection |
| Features | Wide Dynamic Range |
| Features | Noise Reduction |
| Features | Cross Line Detection |
| Form factor | Dome |
| Height | 5.8" |
| Image Sensor Type | CMOS |
| Lens Type | Varifocal |
| Longest Shutter Speed | 1/25 Second |
| Manufacturer | The Bosch Group |
| Manufacturer Part Number | NDV-8502-R |
| Manufacturer Website Address | http://www.bosch.com |
| Marketing Information | The FLEXIDOME IP indoor 8000i - 2 MP series camera offers a 1/2.8" sensor starlight and High Dynamic Range technology at 1080p resolution. It provides crisp and highly detailed images even in extreme lowlight situations.
The camera's remote commissioning functionality makes sure installation and commissioning can be done in very little time. Using a PC or a mobile device with the Bosch Project Assistant app you can pan tilt roll and zoom (PTRZ) and point the camera to the required field of view with a single click - without ever having to touch the camera or lens.
Functions
Full Remote Commissioning
Installing a professional IP video surveillance camera has never been so easy. In fact as an installer you'll never want to go back to the old methods of installing cameras again. We've simplified the installation and commissioning stages to such a degree that they can be done in very little time.
With the FLEXIDOME IP indoor 8000i camera's remote commissioning functionality there's no need to go up and down ladders. Using a PC or a mobile device with the Bosch Project Assistant app you can pan tilt roll and zoom (PTRZ) and point the camera to the required field of view with a single click - without ever having to touch the camera or lens.
Remote configuration and commissioning can also be done at a later stage once all cameras have been installed. Simply connect to the camera remotely via the network using the Bosch Project Assistant app the camera's web interface or the Bosch Configuration Manager.
Fast performance
The high sensor resolution together with a frame rate of 30 frames per second makes this camera an ideal solution for capturing fast moving objects in high detail and at the same time providing situational awareness.
Starlight performance
The latest sensor technology combined with the sophisticated image processing and noise suppression results in an exceptional sensitivity in color. The lowlight performance is so good that the camera continues to provide excellent color performance even with a minimum of ambient light.
High Dynamic Range
The high dynamic range mode is based on a multipleexposure process that captures more details in the highlights and in the shadows even in the same scene. The result is that you can easily distinguish objects and features for example faces with bright backlight. The actual dynamic range of the camera is measured using Opto-Electronic Conversion Function (OECF) analysis according to IEC 62676 Part 5.
Scene modes
Nine configurable modes are provided with the best settings for a variety of applications. In one click fully optimized image settings can be selected to suit the conditions. Different scene modes can be selected for different situations such as traffic or retail environments. |
| Maximum Focal Length | 9 mm |
| Maximum frame rate | 60 fps |
| Maximum Operating Temperature | 131°F (55°C) |
| Maximum Video Resolution | 1920 x 1080 |
| Mount Type | Surface Mount |
| Package Contents | - 1x FLEXIDOME IP indoor 8000i - 2 MP series camera
- 1x T-20 security torx bit
- 1x Quick installation guide
- 1x Safety information
- 1x Cable conduit for side entry
- 1x Washer for cable conduit
- 1x Adapter plate for cable conduit (Ø 3/4" / M25)
- 1x Adapter plate for cable conduit (Ø 1/2" / M20)
- 3x Identification labels
|
| Power source type | PoE |
| Product color | White |
| Product Family | FLEXIDOME IP 8000i |
| Product Line | FLEXIDOME IP |
| Product Name | Fixed dome 2MP HDR 3-9mm PTRZ |
| Product Series | 8000i |
| Product Type | Network Camera |
| Recording Formats | Full HD |
| Shortest Shutter Speed | 1/5000 Second |
| Storage Type | Memory Card |
| Video Formats | MJPEG |
| Video Formats | H.264 |
| Video Formats | H.265/HEVC |
| Video Formats | H.265 |
| Weight (Approximate) | 4.38 lb |
