Kramer HDMI HDCP 2.2 Wall Plate Transmitter over PoC Long-Reach DGKat

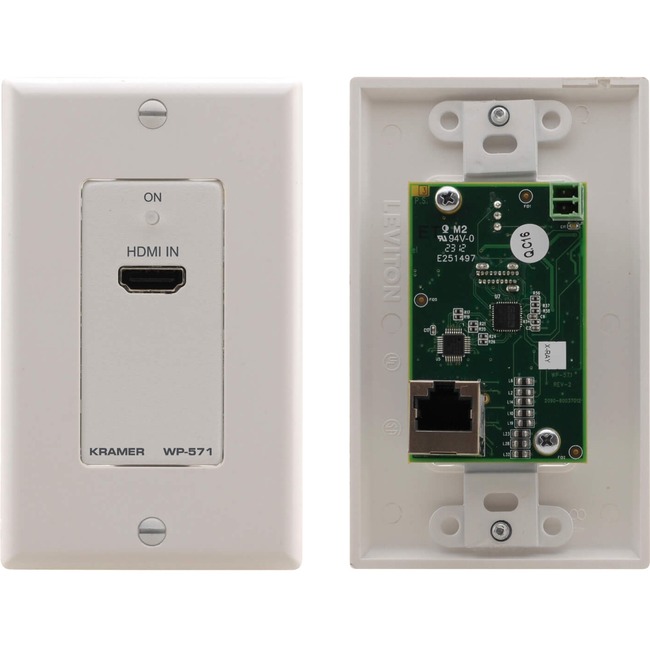

The WP-571 is a PoC DGKat™ wall plate transmitter for HDMI signals. The WP-571 converts an HDMI signal to a DGKat™ twisted pair signal that it transmits to a WP-572.

• Max. Data Rate - 4.95Gbps (1.65Gbps per graphic channel).
• HDTV Compatible.
• HDCP Compliant.
• DGKat™ Signal Integration - Kramer's unique technology for converting TMDS as well as control and communication to signals that run over twisted pair cables.
• HDMI Support - HDMI Uncompressed Audio Channels Dolby TrueHD DTS-HD.
• 3D Pass-Through.
• System Range - Up to 90m (295ft) at 1080i @60hz or up to 70m (230ft) at 1080p @ 60hz when using Kramer DGKat cables.
  Note: Transmission range depends on the signal resolution graphics card and display used. If using third-party shielded CAT cables both ends of the shield must be soldered to the connectors for the products to function properly.
• EDID PassThru - Passes EDID signals between the source and display.
• Active Power Indication - The ON LED lights red when receiving power only orange when either input or output and power are attached and green when both an active input and output are attached.
• Power Connect™ System - A single connection to the transmitter or the receiver powers the system when the devices are within 90m (295ft) of each other.

• HDMI HDCP 2.2 Wall Plate Transmitter over PoC Long-Reach DGKat
• Power Supply
