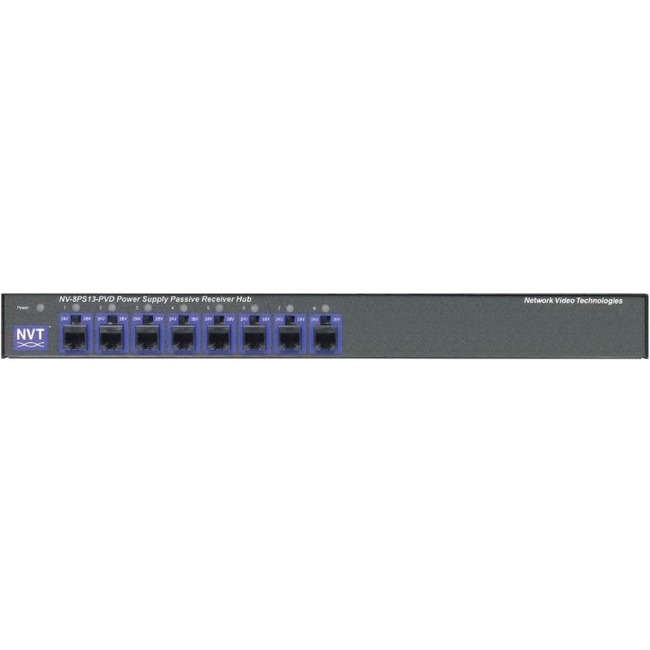

NVT Phybridge Power Supply Passive Video Receiver Hub - 750 ft Range - 10 x Network (RJ-45) - Twisted Pair - Category 5e - Rack-mountable, Wall Mountable, Desktop
750 ft Range - 10 x Network (RJ-45) - Twisted Pair - Category 5e - Rack-mountable, Wall Mountable, Desktop
| Receiver Depth | 12" |
| Receiver Height | 1.73" |
| Receiver Weight (Approximate) | 14 lb |
| Receiver Width | 19" |
| Brand Name | NVT Phybridge |
| Connectivity technology | Wired |
| Environmental Certification | WEEE |
| Environmental Certification | RoHS |
| Environmentally Friendly | Yes |
| Form factor | Wall Mountable |
| Form factor | Desktop |
| Form factor | Rack-mountable |
| Limited Warranty | Lifetime |
| Manufacturer | Phybridge Inc |
| Manufacturer Part Number | NV-8PS13-PVD |
| Manufacturer Website Address | http://www.phybridge.com |
| Marketing Information | Features:
- Provides Class 2 SELV camera power while receiving video transmission and delivering P/T/Z telemetry all over a single 4-pair Cat5e cable
- Standard telecom/datacom structured cabling pinouts per EIA/TIA 568B
- Independently selectable 24VAC-OFF-28VAC with 1 Amp per channel
- Automatic-reset fault protection; transient protection
- Individually floating outputs ensure total ground-loop immunity
- Frequency response DC to 10MHz
- Diagnostic LEDs show load/no load miswires and overload conditions
- Use with the NV-216A-PV NV-218A-PVD or NV-226J-PV transceiver at the camera
- Power cameras via UTP over significant distances (see Power Distance Chart)
- 1U high; 8" deep; wall desk or rack-mountable 2ft (60cm) BNC Cables included
- Limited lifetime warranty
The 8-channel NV-8PS13-PVD is a key hybrid component that consolidates all CCTV system cabling using standard EIA/TIA 568B structured building wiring. Designed for installation in the IDF/Telecom Closet or MDF/Equipment Room the Power Supply Passive Video Receiver Hub has independently selectable 24VAC-OFF-28VAC outputs that can support at-distance camera loads up to 1 Amp per channel. Use with NVT's PVDTM transceivers for cable runs under 750ft (225m). A built-in passive receiver hub allows connection to DVR or an encoder for IP transmission. Per-channel diagnostic LEDs display load /no-load miswires or fault conditions at a glance. Automatic-reset fault protection transient protection and ground loop free individually floating outputs. |
| Maximum Operating Distance | 750 ft |
| Media Type Supported | Twisted Pair |
| Number of Network (RJ-45) Ports | 10 |
| Package Contents | - Power Supply Passive Video Receiver Hub
- Rack Mount "L" Brackets
- Rubber Feet
- 8 x 2ft (60cm) Coax Jumpers
- Molded IEC power inlet cord 7ft (200cm)
|
| Product Name | Power Supply Passive Video Receiver Hub |
| Product Type | Video Extender Receiver |
| Twisted Pair Cable Standard | Category 5e |
