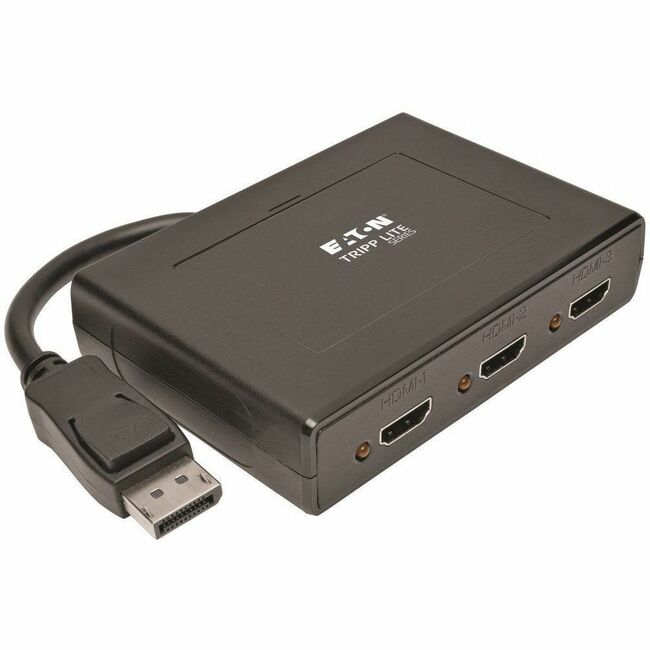

Tripp Lite 3-Port DisplayPort to HDMI Multi Stream Transport Hub MST 4Kx2K@24/30Hz

Name: Tripp Lite 3-Port DisplayPort to HDMI Multi Stream Transport Hub MST 4Kx2K@24/30Hz
Brand: Tripp Lite by Eaton
SKU: 4G5714
Price: 73.12 USD
Availability: InStock

New

Tripp Lite 3-Port DisplayPort to HDMI Multi Stream Transport Hub MST 4Kx2K@24/30Hz - 3840 × 2160 - DisplayPort - HDMI Out

0 Review(s) Item: B156-003-HD-V2 | By: Tripp Lite | 67 In Stock

$73.12 Retail $198.40

Supports UHD video resolutions up to 3840 x 2160 (4K x 2K)
Built-in 6 in. cable connects directly to DisplayPort source
Supports up to 48-bit Deep Color (16 bits per channel)
Works with all operating systems
Supports DTS-HD, Dolby TrueHD and 7.1-channel surround sound

More Details

100% Quality & Money Back Guaranteed!

You may be also interested

Description
Reviews

Tripp Lite 3-Port DisplayPort to HDMI Multi Stream Transport Hub MST 4Kx2K@24/30Hz - 3840 × 2160 - DisplayPort - HDMI Out
3840 × 2160 - DisplayPort - HDMI Out

Product Specifications

Number of DisplayPort Inputs	1
Brand Name	Tripp Lite
Country of origin	Taiwan
Depth	3"
Environmental Certification	RoHS
Environmental Certification	REACH
Environmentally Friendly	Yes
Height	0.9"
Input voltage	5 V DC
Limited Warranty	3 Year
Manufacturer	Tripp Lite by Eaton

Manufacturer Part Number	B156-003-HD-V2
Manufacturer Website Address	http://www.tripplite.com
Marketing Information	The B156-003-HD-V2 3-Port DisplayPort 1.2 to HDMI MST Hub connects up to three HDMI monitors to the DisplayPort output on your computer. Ideal for digital signage in schools churches conference rooms trade shows hotels and retail outlets this hub allows you to display the same image on all three monitors extend the desktop across them or combine all three as one large monitor in video wall mode.The B156-003-HD-V2 is compliant with DisplayPort 1.2 and backward compatible with versions 1.1 and 1.1a with the feature set being limited to that of your equipment. It supports Ultra High Definition (UHD) video resolutions up to 3840 x 2160 (4K x 2K) at 24/30 Hz. In video wall mode it supports expanded resolutions such as 5760 x 1080 in a horizontal 1 x 3 monitor configuration or 1920 x 3240 in a vertical 3 x 1 configuration.This MST hub also supports HDCP EDID DDC and 48-bit Deep Color (16 bits per channel) as well as DTS-HD Dolby TrueHD and 7.1-channel surround sound audio. It works with all operating systems. Plug-and-play convenience means no software or drivers are needed. A built-in six-inch cable connects directly to a DisplayPort source. LEDs indicate when the monitors are receiving a signal. The B156-003-HD-V2 complies with the Federal Trade Agreements Act (TAA) for GSA Schedule purchases. Computer with DisplayPort 1.2-compatible graphics card (e.g. AMD Radeon with AMD Eyefinity) required for video wall mode. Backward compatible with most DisplayPort 1.1a equipment running current graphics drivers with feature set limited to that of your equipment. Compatibility with older graphics cards not guaranteed. MST compliant graphics cards are limited to a bandwidth of 21.6 Gbps amongst all monitors with higher resolution monitors using up more bandwidth. 1080p monitors will use up approximately 22% of bandwidth whereas 4K monitors will use 40% or more. As each monitor will be different it is necessary to verify the percentage of bandwidth being used by each monitor in the display settings interface for your graphics card. If the total percentage of bandwidth taken up by all of the connected monitors exceeds 100% an image will not display on one or more of them. System Requirements Computer with DisplayPort 1.2-compatible graphics card (e.g. AMD Radeon with AMD Eyefinity) required for video wall mode. Backward compatible with most DisplayPort 1.1a equipment running current graphics drivers with feature set limited to that of your equipment. Compatibility with older graphics cards not guaranteed. Mac OS X does not support MST for NVIDIA and Intel Graphics Processor Units limiting video display on connected monitors to mirror mode. MST compliant graphics cards are limited to a bandwidth of 21.6 Gbps amongst all monitors with higher resolution monitors using up more bandwidth. 1080p monitors will use up approximately 22% of bandwidth whereas 4K monitors will use 40% or more. As each monitor will be different it is necessary to verify the percentage of bandwidth being used by each monitor in the display settings interface for your graphics card. If the total percentage of bandwidth taken up by all of the connected monitors exceeds 100% an image will not display on one or more of them. Monitor(s) with HDMI input.
Maximum Video Resolution	3840 × 2160
Number of HDMI Outputs	3
Package Contents	B156-003-HD-V2 3-Port DisplayPort 1.2 to HDMI MST Hub External Power Supply with NEMA 1-15P Plug and 5 ft. Cord (Input: 100-240V 50/60 Hz 0.5A; Output: 5V 2A) Owner's Manual
Product Name	B156-003-HD-V2 3-Port DisplayPort 1.2 to HDMI MST Hub
Product Type	Signal Splitter
UPC Alternates	037332193346 818275790478
Weight (Approximate)	3.88 oz
Width	4.3"

Material Safety Data Sheet
A Material Safety Data Sheet (MSDS) is a document that contains information on the potential hazards (health, fire, reactivity and environmental) and how to work safely with the chemical product.

Sorry this product does not have any reviews at this time.
