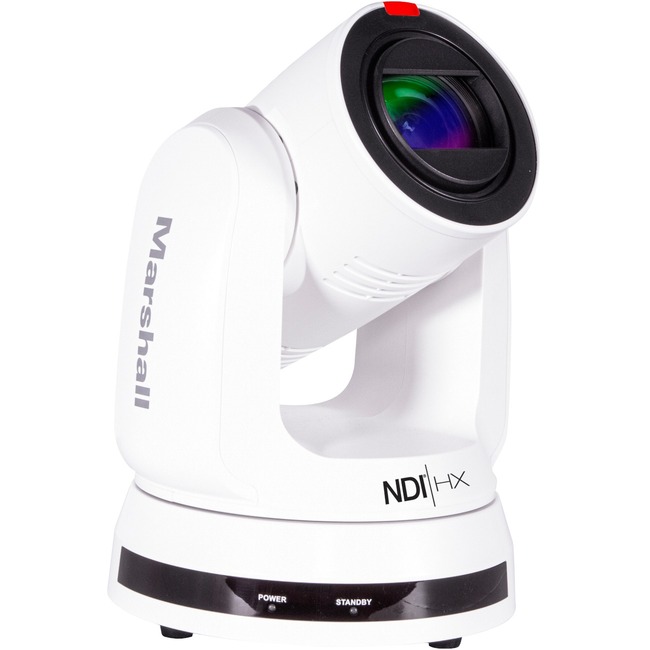

Marshall CV730-NDIW 8.5 Megapixel 4K Network Camera - Color - H.264, H.265 (HEVC), MP4 - 3840 x 2160 - 6.50 mm- 202 mm Zoom Lens - 30x Optical - CMOS - HDMI - Wall Mount
H.264, H.265 (HEVC), MP4 - 3840 x 2160 - 6.50 mm- 202 mm Zoom Lens - 30x Optical - CMOS - HDMI - Wall Mount
| Analog Video Signal Format | 6G-SDI |
| Analog Video Signal Format | 12G-SDI |
| Analog Video Signal Format | 3G-SDI |
| Field of View | 65° Horizontal |
| Minimum Focal Length | 6.50 mm |
| Brand Name | Marshall |
| Color Supported | Color |
| Connectivity technology | Wired |
| Effective Camera Resolution | 8.5 Megapixel |
| Features | PTZ |
| HDMI | Yes |
| Image Sensor Type | CMOS |
| Input voltage | 12 V DC |
| Lens Type | Zoom |
| Longest Shutter Speed | 1/1 Second |
| Manufacturer | Marshall Electronics Inc |
| Manufacturer Part Number | CV730-NDIW |
| Manufacturer Website Address | http://www.mars-cam.com |
| Marketing Information | Marshall CV730-NDI features a 30x optical zoom block and flexible simultaneous 12GSDI and HDMI outputs with NDI HX and crystal clear UHD images up to 3840x2160p at 60fps. NDI HX provides low latency high quality frame-accurate video and audio in real time to IP workflows. NDI Tools opens the ability to integrate more video devices and applications into your production workflow. CV730-NDI is the first UHD60 PTZ camera with NDI HX. Best of Class
Featuring 12GSDI HDMI2.0 and NDI HX from a professional level 8.5MP 1/1.8" UHD sensor and smooth synchronous movements. CV730-NDI is the first to deliver UHD60 performance with NDI HX ease-of-use delivering crystal-clear images up to 3840x2160p at 60fps. NDI HX provides Video Audio Control Tally and Power over one Ethernet cable for remote broadcast-style adjust & match settings control. Flexible Zoom Range
Constructed with a precision 30x optical zoom range starting at just under 65° horizontal angle-of-view at 6.5mm all the way out to 202mm which captures a crystal clear head & shoulder shot at very long distances. Ease of Use
Install one-cable to camera with NDI HX for all functions simple connect to any Ethernet port - THAT'S IT - or use Ethernet for PoE++/Preview and other outputs (12GSDI/HDMI) for simultaneous workflows for streaming production or archiving. Professional Broadcast Performance
Marshall Camera Division continues to develop cutting edge camera products to follow the heritage of Marshall broadcast quality incorporating reliability durability flexibility and most importantly affordability with feature sets that matter to our industry partners. CV730-NDI constitutes the World's first NDI HX PTZ camera with Ultra-HD video quality at 60fps.
|
| Maximum Focal Length | 202 mm |
| Maximum frame rate | 60 fps |
| Maximum Video Resolution | 3840 x 2160 |
| Mount Type | Wall Mount |
| Optical zoom | 30x |
| Package Contents | - 30x UHD60 NDI PTZ Camera
- 12V Power Supply
|
| Product color | White |
| Product Name | 30x UHD60 NDI PTZ Camera |
| Product Type | Network Camera |
| Recording Formats | 4K |
| Shortest Shutter Speed | 1/10000 Second |
| UPC Alternates | 801813226553 |
| Video Formats | H.265 (HEVC) |
| Video Formats | H.264 |
| Video Formats | MP4 |
| Weight (Approximate) | 6.60 lb |
