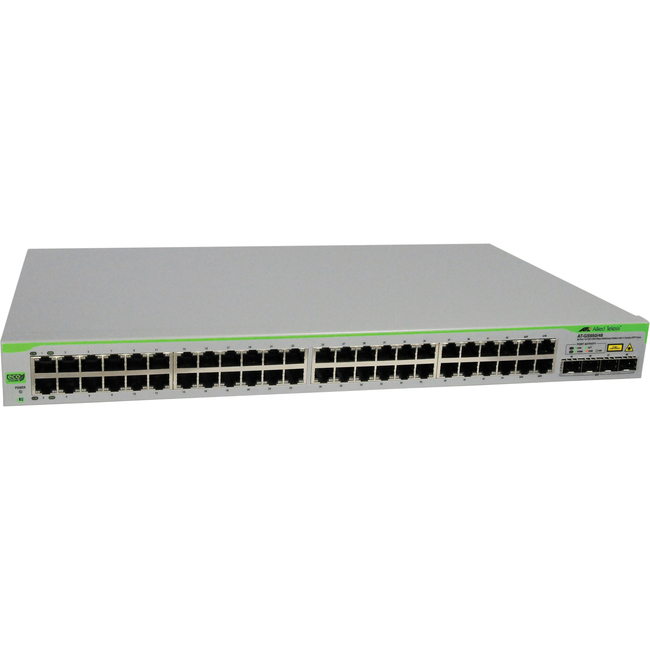

Allied Telesis 48 Port Gigabit WebSmart Switch - 48 Ports - Manageable - 10/100/1000Base-T - 2 Layer Supported - 4 SFP Slots - Wall Mountable, Desktop, Rack-mountable - Lifetime Limited Warranty
48 Ports - Manageable - 10/100/1000Base-T - 2 Layer Supported - 4 SFP Slots - Wall Mountable, Desktop, Rack-mountable - Lifetime Limited Warranty
| Number of Total Expansion Slots | 4 |
| Brand Name | Allied Telesis |
| Certifications & Standards | IEEE Standards:
- 802.3
- 802.3i
- 802.3u
- 802.3z
- 802.3z
- 802.3ab
- 802.3x
- 802.1p
- 802.1x
- 802.1d
- 802.3ad
- 802.1Q
- 802.1d
- 802.1w
Electrical/Mechanical Approvals: - UL 1950
- FCC/EN55022 Class A
- VCCI Class A
- C-Tick
- EN60950 (TUV)
- EN55024
- CE
- CSA/CUL
|
| Country of origin | Taiwan |
| Depth | 10.1" |
| Environmental Certification | 80 Plus |
| Ethernet Technology | Gigabit Ethernet |
| Expansion Slot Type | SFP |
| Flash memory | 8 MB |
| Form factor | Rack-mountable |
| Form factor | Wall Mountable |
| Form factor | Desktop |
| Height | 1.7" |
| Input voltage | 220 V AC |
| Input voltage | 110 V AC |
| Layer Supported | 2 |
| Limited Warranty | Lifetime |
| Manageable | Yes |
| Management | - SNMP v1/2c
- MIB II
- VLAN
- DHCP
- QoS
- Web-based Management
- RMON
|
| Manufacturer | Allied Telesis Inc |
| Manufacturer Part Number | AT-GS950/48PS-10 |
| Manufacturer Website Address | http://www.alliedtelesis.com |
| Marketing Information | ECO-Friendly
The AT-GS950/48 eco-friendly WebSmart switch conforms with Allied Telesis' commitment to environmentally friendly processes and products. It is designed to minimize power consumption through the use of a high efficiency power supply and a low power chipset.
With a low 23W typical power consumption and a reduction in power during after-work hours (overnight mode) - as well as other power saving features included as standard the Allied Telesis AT-GS950/48 truly lives up to it's name as an 'ecofriendly' switch. Not only does this help the planet by reducing the carbon footprint of each switch it also lowers the Total Cost of Ownership (TCO) to the user as the product costs less to run and has improved reliability |
| Media Type Supported | Twisted Pair |
| Memory Technology | DRAM |
| MTBF | 263000 Hour |
| Network Technology | 10/100/1000Base-T |
| Number of Network (RJ-45) Ports | 48 |
| Port/Expansion Slot Details | 48 x Gigabit Ethernet Network |
| Port/Expansion Slot Details | 4 x Gigabit Ethernet Expansion Slot |
| Power source | Power Supply |
| Product Model | AT-GS950/48 |
| Product Name | 48 Port Gigabit WebSmart Switch |
| Product Type | Ethernet Switch |
| Standard Memory | 64 MB |
| Token Ring Port | No |
| UPC Alternates | 767035198170 |
| Weight (Approximate) | 8.93 lb |
| Width | 17.3" |
