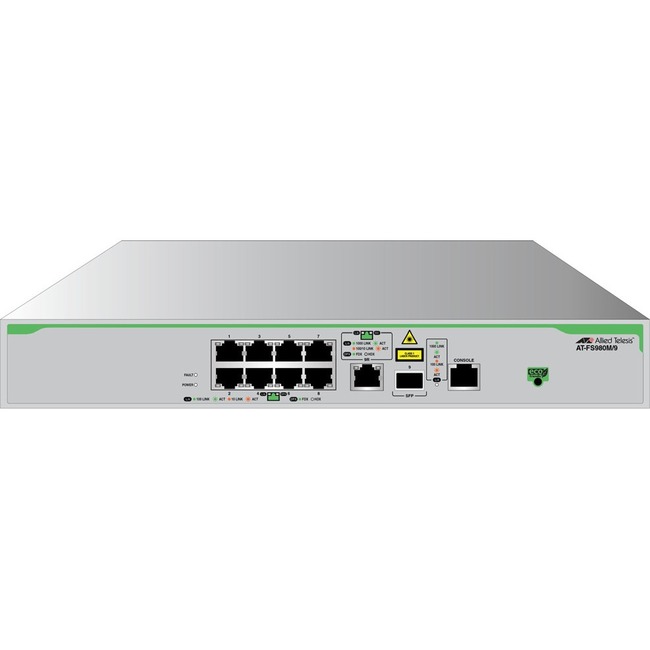

Allied Telesis CentreCOM FS980M/9 Ethernet Switch - 8 Ports - Manageable - Gigabit Ethernet - 10/100/1000Base-T, 1000Base-X - 3 Layer Supported - Modular - 1 SFP Slots - Power Supply - 6.30 W Power Consumption - Optical Fiber, Twisted Pair - 1U High - Wall Mountable, Rack-mountable
8 Ports - Manageable - Gigabit Ethernet - 10/100/1000Base-T, 1000Base-X - 3 Layer Supported - Modular - 1 SFP Slots - Power Supply - 6.30 W Power Consumption - Optical Fiber, Twisted Pair - 1U High - Wall Mountable, Rack-mountable
| Compatible Rack Unit | 1U |
| Compatible Rack Unit | 1U |
| Number of Power Supplies Installed | 1 |
| Number of Power Supplies Installed | 1 |
| Total Number of Network Ports | 8 |
| Total Number of Network Ports | 8 |
| Brand Name | Allied Telesis |
| Brand Name | Allied Telesis |
| Depth | 8" |
| Depth | 8" |
| Environmental Certification | EU RoHS |
| Environmental Certification | EU RoHS |
| Ethernet Technology | Gigabit Ethernet |
| Ethernet Technology | Gigabit Ethernet |
| Expansion Slot Type | SFP (mini-GBIC) |
| Expansion Slot Type | SFP (mini-GBIC) |
| Form factor | Wall Mountable |
| Form factor | Rack-mountable |
| Form factor | Rack-mountable |
| Form factor | Wall Mountable |
| Frequency | 60 Hz |
| Frequency | 50 Hz |
| Frequency | 50 Hz |
| Frequency | 60 Hz |
| Height | 1.7" |
| Height | 1.7" |
| Input voltage | 230 V AC |
| Input voltage | 120 V AC |
| Input voltage | 120 V AC |
| Input voltage | 230 V AC |
| Layer Supported | 3 |
| Layer Supported | 3 |
| Manageable | Yes |
| Manageable | Yes |
| Manufacturer | Allied Telesis Inc |
| Manufacturer | Allied Telesis Inc |
| Manufacturer Part Number | AT-FS980M/9-10 |
| Manufacturer Part Number | AT-FS980M/9-10 |
| Manufacturer Website Address | http://www.alliedtelesis.com |
| Manufacturer Website Address | http://www.alliedtelesis.com |
| Marketing Information | Allied Telesis CentreCOM FS980M switches feature centralized network management via Allied Telesis Autonomous Management Framework™ (AMF) and a redundant system with Virtual Chassis Stacking (VCStack™). These high-performing switches deliver flexible uplink connectivity and lower management costs.
Overview
FS980M switches provide high-performance Fast Ethernet connectivity right where you need it-at the network edge. Flexible and robust the FS980M series provide total security and management features for enterprises of all sizes. They also support video surveillance and Point of Sale (POS) applications.
Reduce network running costs by automating and simplifying many dayto-day tasks-an FS980M is the ideal AMF edge switch when an AMF Master switch is available in the network.
With both copper and Power over Ethernet (PoE) models the FS980M Series has the ideal solution for your network. All models are available with 8 16 24 and 48 × 10/100TX Fast Ethernet ports. PoE models support the IEEE 802.3at (PoE+) standard delivering up to 30 Watts of power per port for video surveillance and security applications. The dual power supply model provides system and PoE redundancy to maximize network and end-point uptime.
Key Features | Allied Telesis Autonomous Management Framework™(AMF)
- AMF is a sophisticated suite of management tools that provides a simplified approach to network management. Common tasks are automated or made so simple that your network can run without the need for highly-trained and expensive network engineers. Powerful features like centralized management auto-backup autoupgrade auto-provisioning and auto-recovery enable Plug-and-Play networking and zero-touch management.
- AMF secure mode increases network security with management traffic encryption authorization and monitoring.
- The FS980M can function as an AMF edge switch when an AMF Master switch is available in the network.
EPSRingTM
- Ethernet Protection Switched Ring (EPSRing) allows several FS980M switches to join a protected ring capable of recovery within as little as 50ms. This feature is perfect for high availability in enterprise networks.
Layer 3 Routing
- The FS980M Series provides static IPv4 routing at the edge of the network as well as support for RIPv1 and RIPv2.
VCStackTM
- FS980M/28 FS980M/28PS FS980M/52 FS980M/52PS FS980M/28DP models.
- Create a VCStack of up to four units with 2 Gbps of stacking bandwidth per each unit. VCStack provides a highly-available system in which network resources are spread out across stacked units minimizing the impact should any unit fail.
|
| Marketing Information | Allied Telesis CentreCOM FS980M switches feature centralized network management via Allied Telesis Autonomous Management Framework™ (AMF) and a redundant system with Virtual Chassis Stacking (VCStack™). These high-performing switches deliver flexible uplink connectivity and lower management costs.
Overview
FS980M switches provide high-performance Fast Ethernet connectivity right where you need it-at the network edge. Flexible and robust the FS980M series provide total security and management features for enterprises of all sizes. They also support video surveillance and Point of Sale (POS) applications.
Reduce network running costs by automating and simplifying many dayto-day tasks-an FS980M is the ideal AMF edge switch when an AMF Master switch is available in the network.
With both copper and Power over Ethernet (PoE) models the FS980M Series has the ideal solution for your network. All models are available with 8 16 24 and 48 × 10/100TX Fast Ethernet ports. PoE models support the IEEE 802.3at (PoE+) standard delivering up to 30 Watts of power per port for video surveillance and security applications. The dual power supply model provides system and PoE redundancy to maximize network and end-point uptime.
Key Features | Allied Telesis Autonomous Management Framework™(AMF)
- AMF is a sophisticated suite of management tools that provides a simplified approach to network management. Common tasks are automated or made so simple that your network can run without the need for highly-trained and expensive network engineers. Powerful features like centralized management auto-backup autoupgrade auto-provisioning and auto-recovery enable Plug-and-Play networking and zero-touch management.
- AMF secure mode increases network security with management traffic encryption authorization and monitoring.
- The FS980M can function as an AMF edge switch when an AMF Master switch is available in the network.
EPSRingTM
- Ethernet Protection Switched Ring (EPSRing) allows several FS980M switches to join a protected ring capable of recovery within as little as 50ms. This feature is perfect for high availability in enterprise networks.
Layer 3 Routing
- The FS980M Series provides static IPv4 routing at the edge of the network as well as support for RIPv1 and RIPv2.
VCStackTM
- FS980M/28 FS980M/28PS FS980M/52 FS980M/52PS FS980M/28DP models.
- Create a VCStack of up to four units with 2 Gbps of stacking bandwidth per each unit. VCStack provides a highly-available system in which network resources are spread out across stacked units minimizing the impact should any unit fail.
|
| Media Type Supported | Optical Fiber |
| Media Type Supported | Twisted Pair |
| Media Type Supported | Twisted Pair |
| Media Type Supported | Optical Fiber |
| Network Technology | 10/100/1000Base-T |
| Network Technology | 1000Base-X |
| Network Technology | 1000Base-X |
| Network Technology | 10/100/1000Base-T |
| Networking standards | IEEE 802.3ad |
| Networking standards | IEEE 802.2 |
| Networking standards | IEEE 802.1ab |
| Networking standards | IEEE 802.1p |
| Networking standards | IEEE 802.1D |
| Networking standards | IEEE 802.1ab |
| Networking standards | IEEE 802.1D |
| Networking standards | IEEE 802.1p |
| Networking standards | IEEE 802.2 |
| Networking standards | IEEE 802.1v |
| Networking standards | IEEE 802.3z |
| Networking standards | IEEE 802.1Q |
| Networking standards | IEEE 802.1x |
| Networking standards | IEEE 802.1w |
| Networking standards | IEEE 802.3z |
| Networking standards | IEEE 802.1w |
| Networking standards | IEEE 802.1x |
| Networking standards | IEEE 802.1Q |
| Networking standards | IEEE 802.3x |
| Networking standards | IEEE 802.1AX |
| Networking standards | IEEE 802.3ab |
| Networking standards | IEEE 802.3 |
| Networking standards | IEEE 802.3 |
| Networking standards | IEEE 802.3ab |
| Networking standards | IEEE 802.1AX |
| Networking standards | IEEE 802.3x |
| Networking standards | IEEE 802.3ad |
| Networking standards | IEEE 802.1v |
| Package Contents | - CentreCOM FS980M/9 Ethernet Switch
- US Power Cord
|
| Package Contents | - CentreCOM FS980M/9 Ethernet Switch
- US Power Cord
|
| Port/Expansion Slot Details | 8 x Gigabit Ethernet Network |
| Port/Expansion Slot Details | 1 x Gigabit Ethernet TP/SFP Combo |
| Port/Expansion Slot Details | 1 x Gigabit Ethernet TP/SFP Combo |
| Port/Expansion Slot Details | 8 x Gigabit Ethernet Network |
| Power consumption | 6.30 W |
| Power consumption | 6.30 W |
| Power source | Power Supply |
| Power source | Power Supply |
| Product Family | CentreCOM FS980M |
| Product Family | CentreCOM FS980M |
| Product Line | CentreCOM |
| Product Line | CentreCOM |
| Product Model | FS980M/9 |
| Product Model | FS980M/9 |
| Product Name | CentreCOM FS980M/9 Ethernet Switch |
| Product Name | CentreCOM FS980M/9 Ethernet Switch |
| Product Series | FS980M |
| Product Series | FS980M |
| Product Type | Ethernet Switch |
