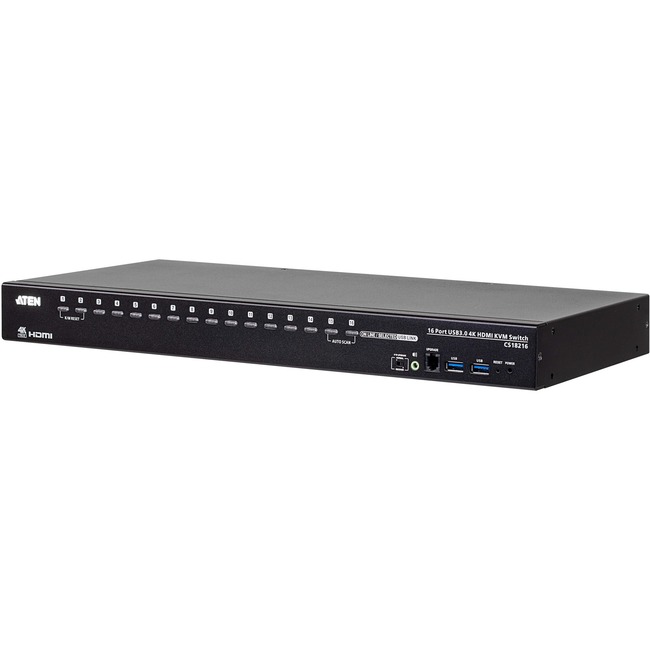

ATEN CS18216 16-Port USB 3.0 4K HDMI KVM Switch with Rack Mounting Kit - 16 Computer(s) - 1 Local User(s) - 4096 x 2160 - 20 x USB - 17 x HDMI - Desktop, Rack-mountable
16 Computer(s) - 1 Local User(s) - 4096 x 2160 - 20 x USB - 17 x HDMI - Desktop, Rack-mountable
| Number of HDMI Ports | 17 |
| Brand Name | ATEN |
| Country of origin | Taiwan |
| Depth | 17" |
| Environmental Certification | China RoHS |
| Environmental Certification | WEEE |
| Environmental Certification | RoHS |
| Environmentally Friendly | Yes |
| Form factor | Desktop |
| Form factor | Rack-mountable |
| Height | 1.7" |
| Manufacturer | ATEN Technology Inc |
| Manufacturer Part Number | CS18216 |
| Manufacturer Website Address | http://www.aten.com/us/en/ |
| Marketing Information | The ATEN CS18216 16-Port USB 3.0 4K HDMI KVM Switch can effectively access and control up to 16 HDMI computers from a single USB keyboard USB mouse and HDMI monitor console. The CS18216 supports high video quality up to 4K DCI (4096 x 2160 @ 60Hz) presenting crystal-clear visuals. To meet the needs of easy expansion and flexibility the CS18216 can control up to 256 computers by cascading to two levels for a single console. Furthermore the CS18216 supports multi-display function by stacking up to eight CS18216 units to compare and analyze information on 8 monitors at most which substantially streamlines the working environment. With two patented ATEN technologies - Video DynaSync™ and EDID Expert™ the CS18216 can optimize display resolution accelerate switching between ports and power up smoothly while eliminating boot-up display problems. Besides the CS18216 comes with a built-in USB 3.1 Gen 1 hub delivering data transfer rates up to 5 Gbps allowing users to speed up operations and share USB peripherals instantly. For user-friendly port selection methods the CS18216 offers pushbuttons hotkeys RS-232 commands and OSD with newly-designed UI bringing effortless and intuitive operations. To eliminate security concern a two-level password authorization is available to enhance security protection for accessing and controlling computers. Consolidating these advantageous functionalities the CS18216 is ideal for server room or computer room management applied in industries with requirements for high-quality images and multitasking such as enterprise government production telecom finance media content provider video surveillance etc. |
| Maximum Video Resolution | 4096 x 2160 |
| Number of Computers Supported | 16 |
| Number of USB Ports | 20 |
| Package Contents | - CS18216 16-Port USB 3.0 4K HDMI KVM Switch with Rack Mounting Kit
- 2 x HDMI Cables
- 2 x USB 3.0 Cables
- 2 x Audio Cables
- 1 x Firmware Upgrade Cable
- 1 x Foot Pad Set (4 pcs)
- 1 x Power Adapter
- 1 x User Instructions
|
| Packaged Quantity | 1 |
| Product Name | CS18216 16-Port USB 3.0 4K HDMI KVM Switch with Rack Mounting Kit |
| Product Type | KVM Switchbox |
| UPC Alternates | 672792012518 |
| Weight (Approximate) | 7.80 lb |
| Width | 8.4" |
