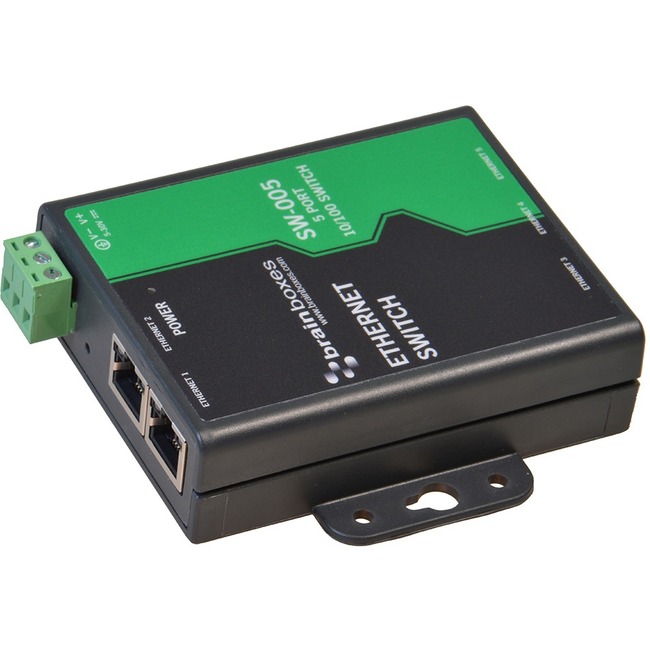

Brainboxes 5 Port Unmanaged Ethernet Switch Mountable

Brainboxes 5 Port Unmanaged Ethernet Switch Mountable

New
Brainboxes 5 Port Unmanaged Ethernet Switch Mountable - 5 Ports - Fast Ethernet - 10/100Base-T - 2 Layer Supported - USB - Twisted Pair - Wall Mountable, Rail-mountable - Lifetime Limited Warranty
0 Review(s) Item: SW-005-X20M | By: Brainboxes |  0 In Stock

Sorry This Product is Currently not Available to Buy.

  • Quickly and easily set up a wired network with 5 networking ports
  • Supports cost-efficient twisted pair cables for high-speed data transfer up to 100 meters
  • Featuring Fast Ethernet ports to speed up the transfer rate up to 100mb/sec of large files and digital assets across your network
  • Layer 2 switch provides a complete lineup of features including IGMP snooping, port mirroring, and spanning tree
  • The unmanaged switch provides a quick, easy and cost-saving way to add wired networking to your home, office or small business; no intervention needed
  • Just plug-in the switch with USB port to make it run
  • Rail mounting is ideal for factory areas, in vehicles and marine applications
More Details
Sorry This Product is Currently not Available to Buy.

You may be also interested
Brainboxes 5 Port Unmanaged Ethernet Switch Mountable - 5 Ports - Fast Ethernet - 10/100Base-T - 2 Layer Supported - USB - Twisted Pair - Wall Mountable, Rail-mountable - Lifetime Limited Warranty
5 Ports - Fast Ethernet - 10/100Base-T - 2 Layer Supported - USB - Twisted Pair - Wall Mountable, Rail-mountable - Lifetime Limited Warranty

Product Specifications

Total Number of Network Ports5
Brand NameBrainboxes
Country of originUnited Kingdom
Depth4.2"
Environmental CertificationWEEE
Environmental CertificationRoHS
Environmentally FriendlyYes
Ethernet TechnologyFast Ethernet
Form factorRail-mountable
Form factorWall Mountable
Height1.1"
Layer Supported2
Limited WarrantyLifetime
ManageableNo
ManufacturerBrainboxes Limited
Manufacturer Part NumberSW-005-X20M
Manufacturer Website Addresshttp://www.brainboxes.com
Marketing Information
  • 5 Port 10/100 Mbs Ethernet Switch
  • Power inputs: +5V to +30V DC
  • Compact design with integral wall mount
  • No software required - Simply plug in and connect
  • Integral wall mount or optional DIN rail mount
  • Connection speed and activity LEDs on each Port
Switches control the flow of network traffic based on the address information in each packet. A switch learns which devices are connected to its ports (by monitoring the packets it receives) and then forwards on packets to the appropriate port only. This allows simultaneous communication across the switch improving bandwidth.
Media Type SupportedTwisted Pair
Network Technology10/100Base-T
Packaged Quantity20
Port/Expansion Slot Details5 x Fast Ethernet Network
Power sourceUSB
Product ModelSW-005
Product Name5 Port Unmanaged Ethernet Switch Mountable
Product TypeEthernet Switch
UPC Alternates837324003765
Weight (Approximate)4.83 oz
Width4"
