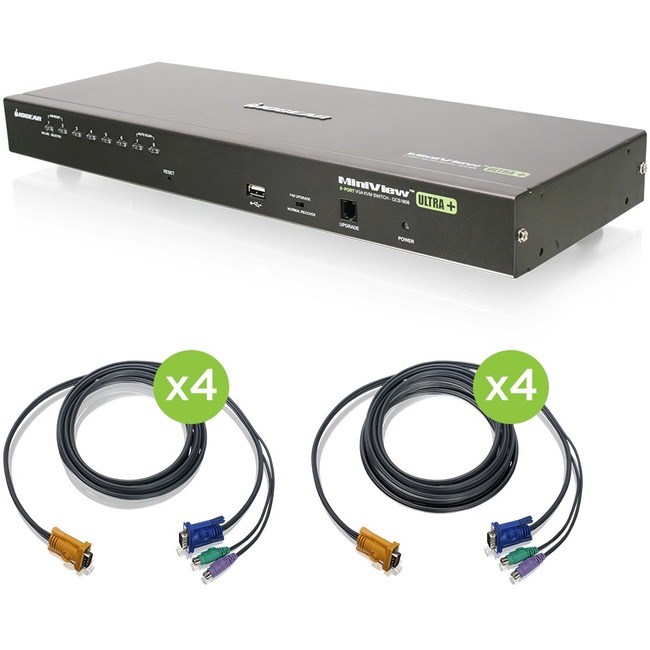

IOGEAR 8-Port USB PS/2 Combo VGA KVM Switch with PS/2 KVM Cables

IOGEAR 8-Port USB PS/2 Combo VGA KVM Switch with PS/2 KVM Cables

New
IOGEAR 8-Port USB PS/2 Combo VGA KVM Switch with PS/2 KVM Cables - 8 Computer(s) - 1 Local User(s) - 2048 x 1536 - 1 x USB - Rack-mountable - 1U
0 Review(s) Item: GCS1808KITPTAA | By: IOGEAR |  0 In Stock

Sorry This Product is Currently not Available to Buy.

  • Multi-platform OS support - Windows®, Mac, Oracle® Solaris and Linux®
  • Supports both USB and PS/2, VGA computers
  • Equipped with 8 PS/2 KVM Cables (4 x 6ft and 4 x 10ft)
  • Auto Scan Mode to monitor connected computers
  • Broadcast Mode to send commands to all connected computers
  • Easy to operate - computer selection via front panel LED's, intuitive OSD (on screen display) and hotkeys
  • Cascade up to 2 levels* - control up to 128 computers from a single console
  • Security - 2 level password protection for OSD
  • Maximum video resolution: up to 2048 x 1536
  • Front USB Port - for system upgrades and shared peripherals (fully compliant with USB 1.1)
More Details
Sorry This Product is Currently not Available to Buy.

You may be also interested
IOGEAR 8-Port USB PS/2 Combo VGA KVM Switch with PS/2 KVM Cables - 8 Computer(s) - 1 Local User(s) - 2048 x 1536 - 1 x USB - Rack-mountable - 1U
8 Computer(s) - 1 Local User(s) - 2048 x 1536 - 1 x USB - Rack-mountable - 1U

Product Specifications

Number of Proprietary Ports9
Brand NameIOGEAR
Country of originTaiwan
Depth6.3"
Environmental CertificationRoHS
Environmental CertificationWEEE
Environmentally FriendlyYes
Form factorRack-mountable
Graphic ModeQXGA
Height1.8"
Input voltage5.3 V DC
Limited Warranty3 Year
ManufacturerIOGEAR Inc
Manufacturer Part NumberGCS1808KITPTAA
Manufacturer Website Addresshttp://www.iogear.com
Marketing Information

The GCS1808KITPTAA KVM kit is a combo VGA switch that includes 8 PS/2 KVM cables (4 x 6ft and 4 x 10ft).

Access and control of up to 64 computers* from a single console (keyboard mouse and monitor). As many as 8 additional switches can be cascaded* bringing the total number of connected computers to 64 computers* that can be controlled from a single keyboard-monitor-mouse console. A custom ASIC (patent pending) provides an auto-sensing function that recognizes the position of each station on the installation eliminating the need to manually set the position with DIP switches Additionally the GCS1808KITPTAA features high density SPHD 15-pin instead of the usual 25-pin connectors thus allowing for a compact design and installation in a 1U system rack.

The GCS1808KITPTAA includes one USB port located on the front panel for easy access and sharing of any USB peripherals. Setup is fast and easy; plugging cables into their appropriate ports is all that is needed. The switch supports both USB and PS/2 connections for the console and computers. The GCS1808KITPTAA intercepts keyboard input directly thus eliminating the need for any software configuration. Switching between computers can be easily accomplished either by manually pressing the front panel push button port LEDs entering hotkey combinations from the keyboard or via a menu driven multilingual on-screen display (OSD) system. A convenient auto-scan feature permits automatic scanning and monitoring of activities on all connected.

More from the Manufacturer

Maximum Video Resolution2048 x 1536
Minimum Scan Interval1 Second
Number of Computers Supported8
Package Contents
  • 8-Port USB PS/2 Combo VGA KVM Switch with PS/2 KVM Cables
  • 4 x PS/2 KVM Cables (6ft - G2L5202PTAA)
  • 4 x PS/2 KVM Cables (10ft - G2L5203PTAA)
  • 1 x USB KVM Cable (6ft - G2L5202UTAA)
  • 1 x Console Cable
  • 1 x Cascade Cable
  • 1 x Firmware Upgrade Cable
  • 1 x Grounding Wire
  • 1 x Foot Pad Set (4 Pads)
  • 1 x Power Adapter
  • 1 x Standard Rack Mounting Kit
  • 1 x Installation Guide
  • 1 x Warranty Card
Packaged Quantity1
Platform SupportedSun
Platform SupportedLinux
Platform SupportedPC
Platform SupportedMac
Product LineMiniView
Product Name8-Port USB PS/2 Combo VGA KVM Switch with PS/2 KVM Cables
Product TypeKVM Switchbox
Rack Height1U
UPC Alternates881317509383
Weight (Approximate)5.58 lb
Width17"
