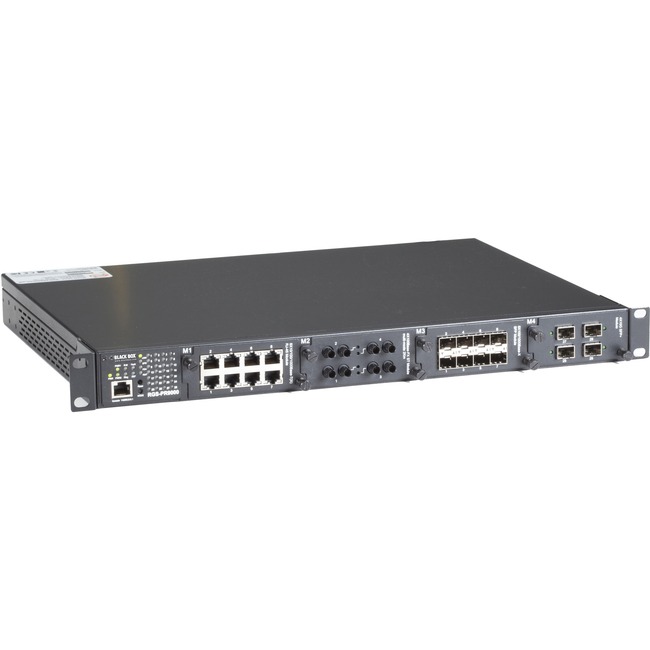

Black Box LE2700A Switch Chassis - Manageable - Gigabit Ethernet, 10 Gigabit Ethernet - 1000Base-X, 10/100/1000Base-TX, 10GBase-X - TAA Compliant - 2 Layer Supported - Modular - Optical Fiber, Twisted Pair - Rack-mountable - 5 Year Limited Warranty
Manageable - Gigabit Ethernet, 10 Gigabit Ethernet - 1000Base-X, 10/100/1000Base-TX, 10GBase-X - TAA Compliant - 2 Layer Supported - Modular - Optical Fiber, Twisted Pair - Rack-mountable - 5 Year Limited Warranty
| Number of Total Expansion Slots | 4 |
| Additional Information | The fourth slot (D) only holds LE2722C LE2731C modules.
Product works with:
4-Port 10-GbE SPP+ Switch Module 4-Port 100-/1000-Mbps SFP Switch Module 4-Port 100BASE-FX Multimode Switch Module SC 4-Port 100BASE-FX Multimode Switch Module ST 8-Port 10/100/1000BASE-T RJ-45 Switch Module 8-Port 100/1000-Mbps SFP ModuleQuestions? Contact our FREE Tech Support. |
| Brand Name | Black Box |
| Country of origin | Taiwan |
| Depth | 12.8" |
| Environmental Certification | WEEE |
| Ethernet Technology | 10 Gigabit Ethernet |
| Ethernet Technology | Gigabit Ethernet |
| Form factor | Rack-mountable |
| Height | 1.7" |
| Layer Supported | 2 |
| Limited Warranty | 5 Year |
| Manageable | Yes |
| Manufacturer | Black Box Corporation |
| Manufacturer Part Number | LE2700A |
| Manufacturer Website Address | http://www.blackbox.com |
| Marketing Information | Scalable flexible cost-effective modular design enables you to add capacity as demand increases. The Chassis is customizable. Choose the right quantity speed and interfaces for your application. You can choose to populate the Chassis with 4-port modules: 10-Gbps SFP+ 100-/1000-Mbps SFP and 100BASE-FX SC or ST multimode fiber. The Chassis also holds 8-port modules: 10/100/1000BASE-T RJ-45 and 100/1000-Mbps SFP SFP modules enable you to use the connector of your choice. Slot four only holds SFP/SFP+ modules. Designed for extreme temperatures of -40 to +185° F (-40 to +85°C). Configure and monitor installations remotely. No truck rolls needed. Meets IEC 61850-3 requirements for electrical substations. Supports Web SNMP and console user interfaces. Accommodates high-availability protocols including xSTP link aggregation and redundant ring. Manages traffic with 802.1p/q tagged frames. Handles jumbo frames. Supports IP multicast snooping with IGMPv2/v3. IEEE 802.3az energy efficient.
Built tough.
The LE2700 Series Hardened Managed Modular Switch system is designed demanding applications such as:
Oil/gas well and pipeline control and monitoring. Municipalities for public safety and traffic control. Security and surveillance providers for backhauling IP camera video and alarms. Utilities including electric substations and water/waste water. SCADA/PLC/M2M systems for remote/automated communications. HVAC systems remote control and monitoring. Complies with EN 61850-3 EMC climatic and mechanical test requirements. Complies with IEC/TS 61000-6-5 EMC immunity in substation environments. Meets IEEE 1613 requirements for control power inputs and power insulation test.
Scalable flexible cost-effective.
This switch system is more than just tough. It's extremely versatile with a range of interface options. The modular design gives you the ability to add the right quantity speed and type of interfaces you need. If your needs change in the future you can just swap out modules. Choose from copper and fiber modules including a 10-GbE SFP+ module.
Ensure 100% uptime.
With dual power supplies the switch is designed for redundancy. Set it up in a ring topology. If a link fails the switch automatically falls over in less than 30 milliseconds. The switch is also compatible with redundant switches from other manufacturers.
Very manageable.
This switch includes extensive management software enabling you to manage it locally or remotely eliminating costly and time-consuming truck rolls. Software includes: SNMP QoS VLAN IGMP Snooping SMTP Client DHCP; MRP MSTP and more.
SFP customization.
By plugging in different SFPs you can customize the switch to the distances and connectors you need. Use the LFP400 Series SFP transceivers with all modules except the LE2731C. Use the SFP+ transceivers (LSP420 Series) with the 10-GbE module (LE2731C). |
| Media Type Supported | Twisted Pair |
| Media Type Supported | Optical Fiber |
| Network Technology | 10GBase-X |
| Network Technology | 10/100/1000Base-TX |
| Network Technology | 1000Base-X |
| Packaged Quantity | 1 |
| Port/Expansion Slot Details | 4 x Expansion Slot |
| Power source | Power Supply |
| Product Name | LE2700A Switch Chassis |
| Product Series | LE2700 |
| Product Type | Switch Chassis |
| UPC Alternates | 779184343844 822088079019 881119679659 |
| Weight (Approximate) | 14.50 lb |
| Width | 17.3" |
