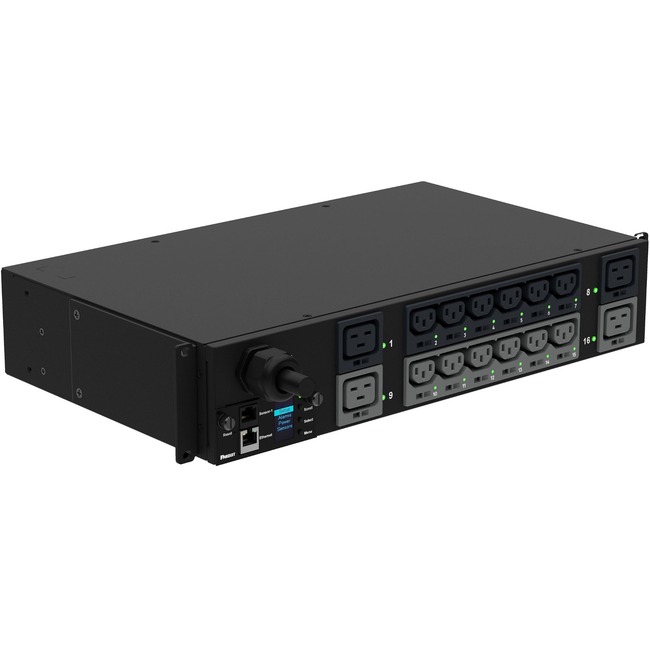

Panduit P16E19M Horizontal Intelligent Power Distribution Unit - Monitored - NEMA L6-30P - 12 x IEC 60320 C13, 4 x IEC 60320 C19 - 230 V AC - 2U - Horizontal - Rack-mountable
Monitored - NEMA L6-30P - 12 x IEC 60320 C13, 4 x IEC 60320 C19 - 230 V AC - 2U - Horizontal - Rack-mountable
| Mounting Orientation | Horizontal |
| Mounting Orientation | Horizontal |
| PDU Type | Monitored |
| PDU Type | Monitored |
| Phase | Single Phase |
| Phase | Single Phase |
| Power Rating (VA) | 5000 VA |
| Power Rating (VA) | 5000 VA |
| Receptacle Detail | 12 x IEC 60320 C13 |
| Receptacle Detail | 12 x IEC 60320 C13 |
| Receptacle Detail | 4 x IEC 60320 C19 |
| Receptacle Detail | 4 x IEC 60320 C19 |
| Brand Name | Panduit |
| Brand Name | Panduit |
| Country of origin | United States |
| Country of origin | United States |
| Depth | 10.6" |
| Depth | 10.6" |
| Environmental Certification | RoHS |
| Environmental Certification | REACH |
| Environmental Certification | RoHS |
| Environmental Certification | REACH |
| Environmentally Friendly | Yes |
| Environmentally Friendly | Yes |
| Height | 3.4" |
| Height | 3.4" |
| Input current | 30 A |
| Input current | 30 A |
| Input voltage | 230 V AC |
| Input voltage | 230 V AC |
| Limited Warranty | 3 Year |
| Limited Warranty | 3 Year |
| Manufacturer | PANDUIT CORP |
| Manufacturer | PANDUIT CORP |
| Manufacturer Part Number | P16E19M |
| Manufacturer Part Number | P16E19M |
| Manufacturer Website Address | http://www.panduit.com |
| Manufacturer Website Address | http://www.panduit.com |
| Marketing Information | The Panduit® SmartZone™ G5 iPDU is more than a power distribution unit and energy meter. These iPDUs monitor the data center power and environment (at the rack or cabinet level) by continuously scanning for electrical circuit overloads and physical environmental conditions that place critical IT equipment at risk. Panduit's iPDUs provide comprehensive accurate energy measurement data to efficiently use power resources make informed capacity planning decisions improve uptime measure PUE (power usage effectiveness) and drive green data center initiatives to save energy and money.
Making the right choice in IT equipment is essential for a safe efficient data center operation. Our full range of iPDUs environmental sensors and dual locking power cords are the key to fulfilling mission-critical data center needs. |
| Marketing Information | The Panduit® SmartZone™ G5 iPDU is more than a power distribution unit and energy meter. These iPDUs monitor the data center power and environment (at the rack or cabinet level) by continuously scanning for electrical circuit overloads and physical environmental conditions that place critical IT equipment at risk. Panduit's iPDUs provide comprehensive accurate energy measurement data to efficiently use power resources make informed capacity planning decisions improve uptime measure PUE (power usage effectiveness) and drive green data center initiatives to save energy and money.
Making the right choice in IT equipment is essential for a safe efficient data center operation. Our full range of iPDUs environmental sensors and dual locking power cords are the key to fulfilling mission-critical data center needs. |
| Mount Type | Rack-mountable |
| Mount Type | Rack-mountable |
| Output voltage | 208 V AC |
| Output voltage | 208 V AC |
| Output Voltage Range | 120 V AC - 240 V AC |
| Output Voltage Range | 120 V AC - 240 V AC |
| Packaged Quantity | 1 |
| Packaged Quantity | 1 |
| Plug/Connector Type | NEMA L6-30P |
| Plug/Connector Type | NEMA L6-30P |
| Product Family | SmartZone MS |
| Product Family | SmartZone MS |
| Product Line | SmartZone |
| Product Line | SmartZone |
| Product Name | P16E19M Horizontal Intelligent Power Distribution Unit |
| Product Name | P16E19M Horizontal Intelligent Power Distribution Unit |
| Product Series | MS |
| Product Series | MS |
| Product Type | PDU |
| Product Type | PDU |
| Protection Type | Double Pole |
| Protection Type | Double Pole |
| Protection Type | Overload Protection |
| Protection Type | Overload Protection |
| Rack Height | 2U |
| Rack Height | 2U |
| Receptacle Type | IEC 60320 C19 |
| Receptacle Type | IEC 60320 C13 |
| Receptacle Type | IEC 60320 C19 |
| Receptacle Type | IEC 60320 C13 |
| UPC Alternates | 613056317017 |
| UPC Alternates | 613056317017 |
| Width | 17.5" |
| Width | 17.5" |
