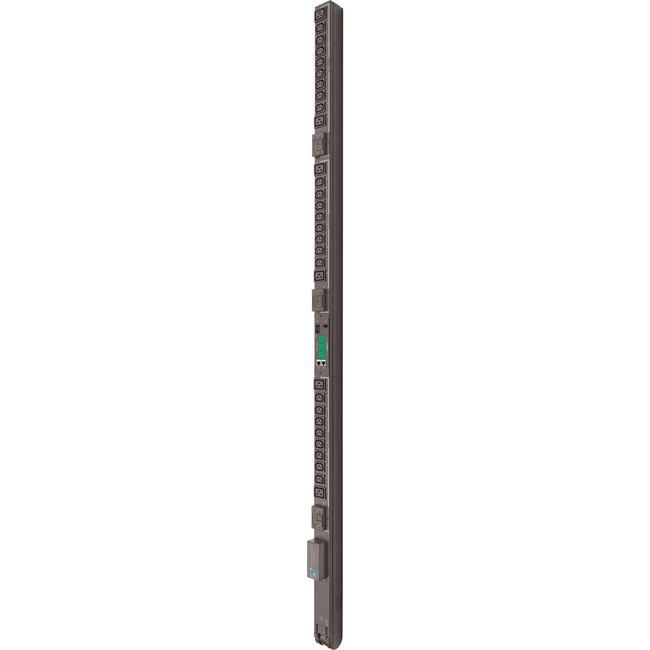

Server Technology PRO2 STV-6501C 30-Outlet PDU - NEMA L6-30P - 24 x IEC 60320 C13, 6 x IEC 60320 C19 - 230 V AC - Network (RJ-45) - Rack-mountable
NEMA L6-30P - 24 x IEC 60320 C13, 6 x IEC 60320 C19 - 230 V AC - Network (RJ-45) - Rack-mountable
| Receptacle Detail | 24 x IEC 60320 C13 |
| Receptacle Detail | 6 x IEC 60320 C19 |
| Receptacle Detail | 24 x IEC 60320 C13 |
| Receptacle Detail | 6 x IEC 60320 C19 |
| Brand Name | Server Technology |
| Brand Name | Server Technology |
| Certifications & Standards | cTUVus |
| Country of origin | United States |
| Country of origin | United States |
| Depth | 2.3" |
| Depth | 2.3" |
| Environmental Certification | cTUVus |
| Environmental Certification | cTUVus |
| Environmentally Friendly | Yes |
| Environmentally Friendly | Yes |
| Height | 69" |
| Height | 69" |
| Input current | 30 A |
| Input current | 30 A |
| Input voltage | 230 V AC |
| Input voltage | 230 V AC |
| Limited Warranty | 2 Year |
| Limited Warranty | 2 Year |
| Management | - HTTP/HTTPS
- TLSv1
- SSHv2
- Telnet
- SNMPv2c and v3 (GET SET Traps)
- IPv4 and IPv6
- LDAPv3/LDAPS
- TACACS+
- RADIUS
- FTP/SFTP
|
| Management | - HTTP/HTTPS
- TLSv1
- SSHv2
- Telnet
- SNMPv2c and v3 (GET SET Traps)
- IPv4 and IPv6
- LDAPv3/LDAPS
- TACACS+
- RADIUS
- FTP/SFTP
|
| Manufacturer | Server Technology Inc |
| Manufacturer | Server Technology Inc |
| Manufacturer Part Number | STV-6501C |
| Manufacturer Part Number | STV-6501C |
| Manufacturer Website Address | http://www.servertech.com |
| Manufacturer Website Address | http://www.servertech.com |
| Marketing Information | The Server Technology® PRO2 Switched POPS PDU provides control of outlet power and local LED input current monitoring allowing IT personnel to determine safe levels of loading on a per-phase basis while installing equipment into the rack/cabinet. The integral PIPS® and POPS® technology provides billing-grade accurate measurement of current voltage active power apparent power power factor crest factor and accumulated energy at the input and at each output. These power data points along with temperature and humidity measurements (provided via optional probes) are accessible through the built-in Web and CLI interfaces as well as through SNMP. The PRO2 Switched POPS "Master" PDU can be connected to as many as three (with optional module) PRO2 Switched POPS "Link" PDUs to extend the network access to the redundant or secondary power feed without the risks of a daisy chain linking configuration. |
| Marketing Information | The Server Technology® PRO2 Switched POPS PDU provides control of outlet power and local LED input current monitoring allowing IT personnel to determine safe levels of loading on a per-phase basis while installing equipment into the rack/cabinet. The integral PIPS® and POPS® technology provides billing-grade accurate measurement of current voltage active power apparent power power factor crest factor and accumulated energy at the input and at each output. These power data points along with temperature and humidity measurements (provided via optional probes) are accessible through the built-in Web and CLI interfaces as well as through SNMP. The PRO2 Switched POPS "Master" PDU can be connected to as many as three (with optional module) PRO2 Switched POPS "Link" PDUs to extend the network access to the redundant or secondary power feed without the risks of a daisy chain linking configuration. |
| Mount Type | Rack-mountable |
| Mount Type | Rack-mountable |
| Output voltage | 208 V AC |
| Output voltage | 208 V AC |
| Package Contents | - PRO2 STV-6501C 30-Outlet PDU
- 1 x Probe
- Mounting Brackets (Buttons)
|
| Package Contents | - PRO2 STV-6501C 30-Outlet PDU
- 1 x Probe
- Mounting Brackets (Buttons)
|
| Plug/Connector Type | NEMA L6-30P |
| Plug/Connector Type | NEMA L6-30P |
| Product Name | PRO2 STV-6501C 30-Outlet PDU |
| Product Name | PRO2 STV-6501C 30-Outlet PDU |
| Product Series | PRO2 |
| Product Series | PRO2 |
| Product Type | PDU |
| Product Type | PDU |
| Protection Type | Circuit Protection |
| Protection Type | Circuit Protection |
| Receptacle Type | IEC 60320 C13 |
| Receptacle Type | IEC 60320 C19 |
| Receptacle Type | IEC 60320 C19 |
| Receptacle Type | IEC 60320 C13 |
| Width | 2.2" |
| Width | 2.2" |
