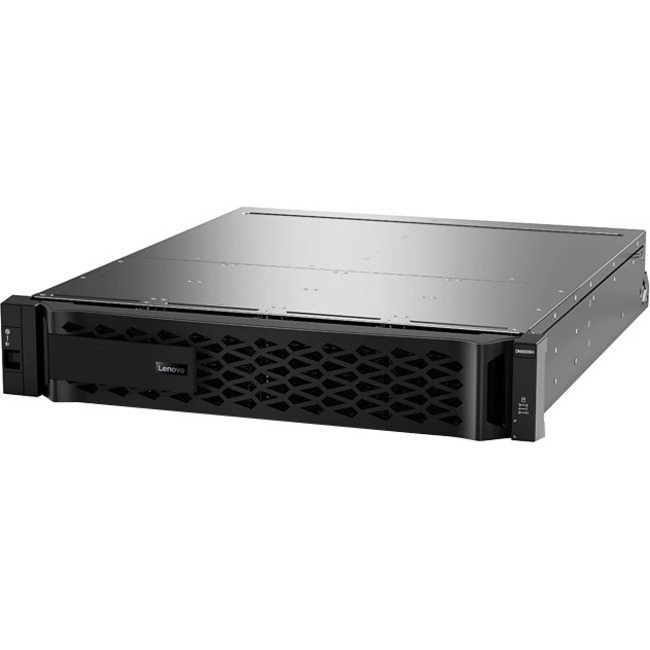

Lenovo ThinkSystem DM3000H Unified Hybrid Storage Array - 12 x HDD Supported - 12 x HDD Installed - 48 TB Installed HDD Capacity - Serial Attached SCSI (SAS) - 12 x SSD Supported - 0 x SSD Installed - 2 x 12Gb/s SAS Controller - RAID Supported - 12 x Total Bays - 12 x 3.5" Bay - 4 x Total Slot(s) - 10 Gigabit Ethernet - 2 USB Port(s) - 2 USB 2.0 Port(s) - Network (RJ-45) - Data ONTAP 9.7 - NFS, CIFS, SMB, iSCSI, SSH, SNMP, SSL, LDAP, FCP - 4 SAS Port(s) External - 2U - Rack-mountable
12 x HDD Supported - 12 x HDD Installed - 48 TB Installed HDD Capacity - Serial Attached SCSI (SAS) - 12 x SSD Supported - 0 x SSD Installed - 2 x 12Gb/s SAS Controller - RAID Supported - 12 x Total Bays - 12 x 3.5" Bay - 4 x Total Slot(s) - 10 Gigabit Ethernet - 2 USB Port(s) - 2 USB 2.0 Port(s) - Network (RJ-45) - Data ONTAP 9.7 - NFS, CIFS, SMB, iSCSI, SSH, SNMP, SSL, LDAP, FCP - 4 SAS Port(s) External - 2U - Rack-mountable
| Fibre Channel | Yes |
| Maximum Power Supply Wattage | 913 W |
| Number of Controllers | 2 |
| Number of Solid State Drive Installed | 0 |
| Number of Total Expansion Slots | 4 |
| Total Hard Drive Capacity Installed | 48 TB |
| Brand Name | Lenovo |
| Controller Type | 12Gb/s SAS |
| Depth | 20" |
| Environmental Certification | EU RoHS |
| Ethernet Technology | 10 Gigabit Ethernet |
| Expansion Slot Type | SFP+ |
| Form factor | Rack-mountable |
| Hard Drive Configuration | 12 x 4TB |
| Hard drive interface | Serial Attached SCSI (SAS) |
| Height | 3.4" |
| Limited Warranty | 1 Year |
| Manufacturer | Lenovo Group Limited |
| Manufacturer Part Number | 7Y42A000NA |
| Manufacturer Website Address | http://www.lenovo.com/us/en/ |
| Marketing Information | Lenovo ThinkSystem DM3000H is a unified hybrid storage system that is designed to provide performance simplicity capacity security and high availability for small enterprises and remote offices/branch offices of large enterprises. Powered by the ONTAP software ThinkSystem DM3000H delivers enterprise-class storage management capabilities with a wide choice of host connectivity options flexible drive configurations and enhanced data management features. The ThinkSystem DM3000H is a perfect fit for small offices and remote and branch offices of large enterprises that run a wide range of general purpose workloads including file services virtualization Microsoft applications backup and archiving and other storage I/O-intensive applications. ThinkSystem DM3000H models are 2U rack-mount controller enclosures that include two controllers 64 GB RAM and 8 GB battery-backed NVRAM per system (32 GB RAM and 4 GB NVMRAM per controller) and 12 LFF hot-swap drive bays (2U12 form factor). Controllers provide universal 1/10 GbE NAS/iSCSI or 4/8/16 Gb Fibre Channel (FC) ports or 1/10 GbE RJ-45 ports for host connectivity. A single ThinkSystem DM3000H Storage Array scales up to 144 drives with the attachment of ThinkSystem DM120S 2U12 LFF DM600S 4U60 LFF and DM240S 2U24 SFF Expansion Enclosures. |
| Number of Network (RJ-45) Ports | 8 |
| Number of Total Expansion Bays | 12 |
| Operating System | Data ONTAP 9.7 |
| Package Contents | - ThinkSystem DM3000H Unified Hybrid Storage Array
- Rack Mount Kit
- 2 m USB Cable (USB Type A to Micro-USB)
- 2 x 0.5m Passive DAC SFP+ Cables
|
| Packaged Quantity | 1 |
| Plug/Connector Type | C13 to IEC 320-C14 |
| Product Family | ThinkSystem DM |
| Product Line | ThinkSystem |
| Product Model | DM3000H |
| Product Name | ThinkSystem DM3000H Unified Hybrid Storage Array |
| Product Series | DM |
| Product Type | SAN/NAS Storage System |
| Protocols | NFS |
| Protocols | CIFS |
| Protocols | SMB |
| Protocols | iSCSI |
| Protocols | SSL |
| Protocols | FCP |
| Protocols | SNMP |
| Protocols | SSH |
| Protocols | LDAP |
| Rack Height | 2U |
| Weight (Approximate) | 63.70 lb |
| Width | 17.6" |
