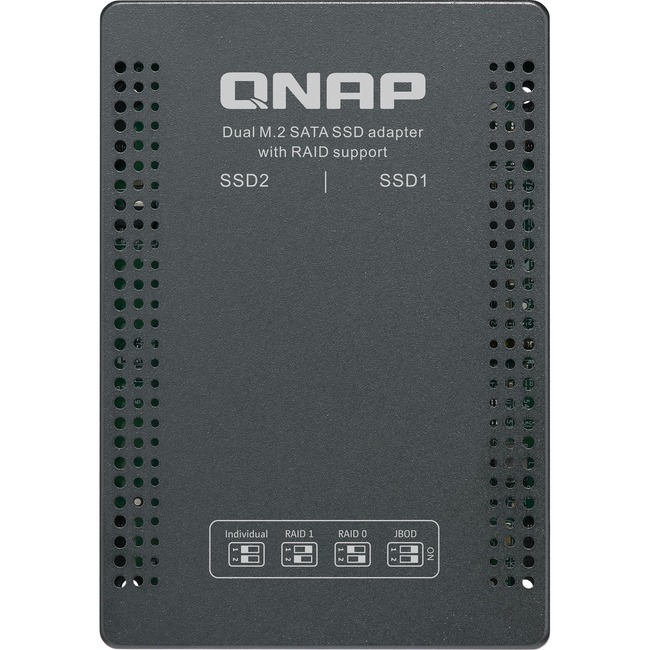

QNAP QDA-A2MAR DAS Storage System

Use two M.2 SATA SSDs in a single 2.5-inch SATA drive bay with RAID support for PC and NAS

The QDA-A2MAR can accommodate two M.2 SATA SSDs within a single 2.5-inch SATA drive bay. No software driver is required for the QDA-A2MAR and it can be installed in a PC/workstation (Windows® Linux®) or QNAP NAS to flexibly add high-performance M.2 SATA SSDs with RAID configurations to meet various storage needs.

Use two M.2 2280 SATA SSDs in a single 2.5-inch drive bay. (M.2 SSDs sold separately)

Up to 6 Gb/s file transfer speeds. Can be the primary bootable device containing for PCs.

Choose a hardware RAID group with the disk mode switch.

Supports various RAID levels

The QDA-A2MAR supports a variety of RAID configurations. Depending on your requirements you can use the bundled metal pin as disk mode switch tool to select your ideal RAID mode: Individual JBOD RAID 0 or RAID 1. Windows® users can use the QNAP External RAID Manager utility to view the RAID group status and disk health information.

A PC that supports SATA port multipliers can connect two SATA drives to a single SATA port allowing you to independently access each disk as separate storage space.

Half of the total storage capacity is used to store data and the other half keeps a copy of this data. This provides high data protection at the cost of only being able to use half the installed storage space.

Data is split amongst the drives. RAID 0 provides the fastest performance but does not protect data from drive failure.

All the drives are recognized as a single drive. This allows maximal storage utilization but provides no data protection.

Install in a PC/workstation for higher performance or data protection

When using two M.2 SSDs instead of a single 2.5-inch drive in a PC/workstation (Windows® or Linux®) you can create a RAID 0 for enhanced performance or RAID 1 to add data redundancy for greater data protection. The M.2 SSDs also help achieve maximized performance and lower latency ideal for on-the-fly video editing and server-grade applications.

External RAID Manager for Windows users

The QNAP External RAID Manager utility allows Windows® users to view the drive status and RAID information of the QDA-A2MAR. Firmware updates for the QDA-A2MAR can also be managed with the External RAID Manager utility.

Install in QNAP NAS for efficient storage or SSD caching
