| Transmitter Depth | 1.22" |
| Transmitter Height | 4.50" |
| Transmitter Weight (Approximate) | 3.53 oz |
| Transmitter Width | 2.75" |
| Brand Name | Kramer |
| Connectivity technology | Wired |
| Environmental Certification | RoHS |
| Environmental Certification | WEEE |
| Environmentally Friendly | Yes |
| Form factor | Wall Mountable |
| Graphics Modes | 4K |
| Manufacturer | Kramer Electronics LTD |
| Manufacturer Part Number | 50-805180195 |
| Manufacturer Website Address | http://www.kramerelectronics.com |

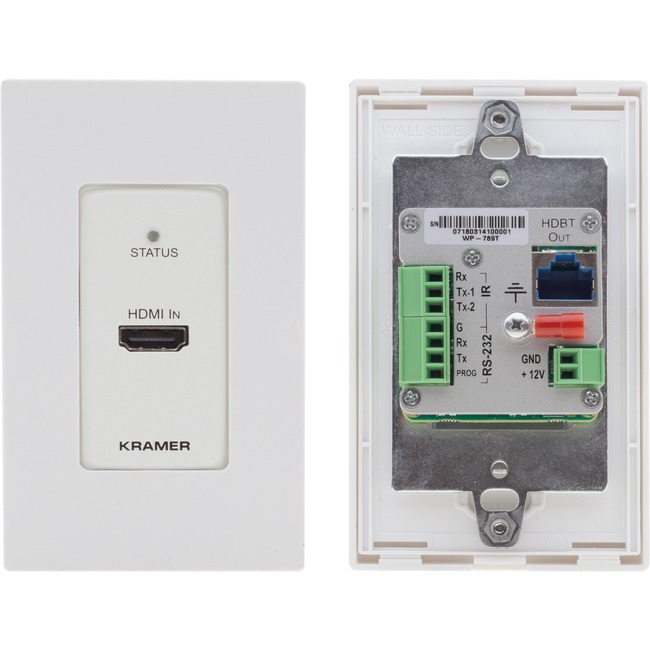

| Marketing Information | WP-789T is a high-performance long-reach HDBaseT wall-plate transmitter for 4K@60Hz (4:2:0) HDMI and HDCP 2.2 signals over twisted pair. It converts the HDMI input signal into an HDBaseT signal and transmits it to a compatible receiver. It extends video signals to up to 40m (130ft) over Kramer copper cables at up to 4K@60Hz (4:2:0) 24bpp video resolution and provides even further reach for lower HD video resolutions. This wall-plate is powered through PoE (Power over Ethernet) over the twisted pair cable. FEATURES High Performance Transmitter - Professional HDBaseT transmitter for providing long-reach signals over twisted pair copper infrastructures. WP-789T is a standard extender that can be connected to any market-available HDBaseT-compliant extension product. For optimum extension reach and performance use recommended Kramer cables. Reliable PoE (Power over Ethernet) Powering - Auto-senses the extension line PoE status and accepts power from a remote PoE provider such as a PoE matrix with optional mains powering from connected power adapter. HDMI Signal Extension - HDCP 1.4 and 2.2 compliant. Supports deep color x.v.Color™ lip sync HDMI uncompressed audio channels Dolby TrueHD DTS-HD 2K 4K and 3D as specified in HDMI 2.0 EDID Pass-through - Pass-through algorithm ensures Plug and Play operation for HDMI source and display systems Multi-channel Audio Extension - Up to 32 channels of digital stereo uncompressed signals for supporting studio-grade surround sound Cost-Effective Maintenance - Power and connectivity status LED indicator facilitates easy local maintenance and troubleshooting Easy Installation - Compactly fits into standard US EU and UK 1-gang in-wall box size supporting decorative integration with room deployed user interfaces such as electrical switches. Wall-plate installation is fast and cost-effective via a single twisted pair cable providing both video signal and power (PoE) connections |
| Maximum Operating Distance | 229.66 ft |
| Maximum Video Resolution | 3840 x 2160 |
| Media Type Supported | Twisted Pair |
| Number of Network (RJ-45) Ports | 1 |
| Package Contents |
|
| Product Model | WP-789T/US-D(W/B) |
| Product Name | US-D-size Wall?Plate Transmitter with White & Black Decora Design Frame Sets |
| Product Type | Video Extender Transmitter |
