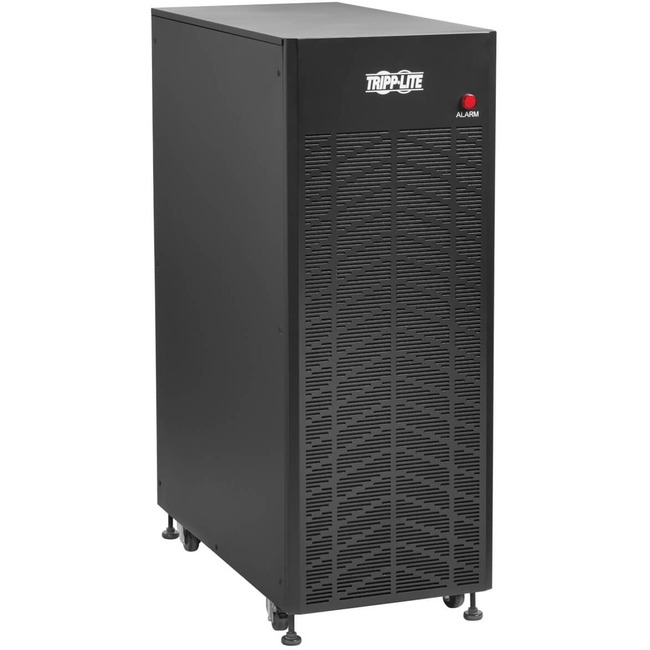

Tripp Lite UPS 3-Phase Smart Online 20kVA Input Isolation Transformer 480V

Name: Tripp Lite UPS 3-Phase Smart Online 20kVA Input Isolation Transformer 480V
Brand: Tripp Lite by Eaton
SKU: 8YL059
Price: 3885 USD

New

Tripp Lite UPS 3-Phase Smart Online 20kVA Input Isolation Transformer 480V - 20 kVA - 480 V AC Input - 480 V AC Output

0 Review(s) Item: S3MT-20K480V | By: Tripp Lite | 0 In Stock

Sorry This Product is Currently not Available to Buy.

Recommended for government, manufacturing, healthcare and corporate settings
Up to 96.5% efficiency with a quiet acoustic profile less than 65 dBA
Resettable protection relay/switch and red LED indicator warn against overheating
Rugged stainless steel housing with compact footprint comes ready for installation
Compatible with 10-20kVA/kW Tripp Lite S3M-Series 3-phase UPS systems
2-year limited warranty

More Details

Sorry This Product is Currently not Available to Buy.

You may be also interested

Description
Reviews

Tripp Lite UPS 3-Phase Smart Online 20kVA Input Isolation Transformer 480V - 20 kVA - 480 V AC Input - 480 V AC Output
20 kVA - 480 V AC Input - 480 V AC Output

Product Specifications

Input Receptacles	Hardwired
Input Receptacles	Hardwired
Shipping Depth	37.80"
Shipping Depth	37.80"
Shipping Height	54.80"
Shipping Height	54.80"
Shipping Width	22.20"
Shipping Width	22.20"
Additional Information	Input Voltage Range : (-45% +25%) for 40% load (-20% +25%) for 100% load Input Amp(s) : 35 A AC Input Configuration : Delta AC Input Frequency : 50/60 Frequency Range : 40/70Hz Voltage Selection : NONE Input Inrush Current : 300 A VA Rating : 20K Input Number of Phases : 3PH AC Output Voltage (V) : 480 V AC Output Amps : 75 A Output Number of Phases : 3PH + N AC Output Configuration : WYE Output Isolation : Yes Output Breaker Rating : 80 A Connection Type : TERMINAL BLOCK
Additional Information	Input Voltage Range : (-45% +25%) for 40% load (-20% +25%) for 100% load Input Amp(s) : 35 A AC Input Configuration : Delta AC Input Frequency : 50/60 Frequency Range : 40/70Hz Voltage Selection : NONE Input Inrush Current : 300 A VA Rating : 20K Input Number of Phases : 3PH AC Output Voltage (V) : 480 V AC Output Amps : 75 A Output Number of Phases : 3PH + N AC Output Configuration : WYE Output Isolation : Yes Output Breaker Rating : 80 A Connection Type : TERMINAL BLOCK
Brand Name	Tripp Lite
Brand Name	Tripp Lite
Compatibility	Tripp Lite 10-20kVA/kW S3M-Series 3-Phase UPS System
Compatibility	Tripp Lite 10-20kVA/kW S3M-Series 3-Phase UPS System
Country of origin	China
Country of origin	China
Depth	33.5"
Depth	33.5"
Environmental Certification	RoHS
Environmental Certification	RoHS
Environmentally Friendly	Yes
Environmentally Friendly	Yes
Form factor	Tower
Form factor	Tower
Height	47.2"
Height	47.2"
Input voltage	480 V AC
Input voltage	480 V AC
Limited Warranty	2 Year

Limited Warranty	2 Year
Manufacturer	Tripp Lite by Eaton
Manufacturer	Tripp Lite by Eaton
Manufacturer Part Number	S3MT-20K480V
Manufacturer Part Number	S3MT-20K480V
Manufacturer Website Address	http://www.tripplite.com
Manufacturer Website Address	http://www.tripplite.com
Marketing Information	Get Complete Step-Down and Isolation Protection and Prevent Power Disruption Tripp Lite's S3MT-20K480V 20kVA/kW transformer offers line isolation and protection to the connected 3-phase UPS system and its load. It isolates the UPS and connected components from line surges and spikes caused by utility power disruptions that can damage equipment or corrupt data. The step-down input isolation transformer is ideal for 4-wire (3Ph+N+PE) IT loads in government manufacturing healthcare and corporate settings with a 480V electrical feed and 208/120V equipment. Performs with High Efficiency up to 96.5% Not only is the S3MT-20K480V very efficient with up to 96.5 percent efficiency but it is also very quiet with a noise profile less than 65 dBA. A built-in circuit breaker on the output side helps prevent dangerous power overloads. Two ball-bearing cooling fans help prevent overheating. An overheat-sensing relay and switch combine with a red LED indicator to provide over-temperature warning and overheating protection. Small Footprint for Quick Installation in a Compact Space The compact footprint enables installation of the S3MT-20K480V with minimal space. The rugged stainless steel housing ships ready for immediate installation with a compatible 10-20kVA/kW Tripp Lite S3M-Series 3-phase UPS system.
Marketing Information	Get Complete Step-Down and Isolation Protection and Prevent Power Disruption Tripp Lite's S3MT-20K480V 20kVA/kW transformer offers line isolation and protection to the connected 3-phase UPS system and its load. It isolates the UPS and connected components from line surges and spikes caused by utility power disruptions that can damage equipment or corrupt data. The step-down input isolation transformer is ideal for 4-wire (3Ph+N+PE) IT loads in government manufacturing healthcare and corporate settings with a 480V electrical feed and 208/120V equipment. Performs with High Efficiency up to 96.5% Not only is the S3MT-20K480V very efficient with up to 96.5 percent efficiency but it is also very quiet with a noise profile less than 65 dBA. A built-in circuit breaker on the output side helps prevent dangerous power overloads. Two ball-bearing cooling fans help prevent overheating. An overheat-sensing relay and switch combine with a red LED indicator to provide over-temperature warning and overheating protection. Small Footprint for Quick Installation in a Compact Space The compact footprint enables installation of the S3MT-20K480V with minimal space. The rugged stainless steel housing ships ready for immediate installation with a compatible 10-20kVA/kW Tripp Lite S3M-Series 3-phase UPS system.
Package Contents	SmartOnline S3MT-20K480V Isolation Transformer Owner's Manual
Package Contents	SmartOnline S3MT-20K480V Isolation Transformer Owner's Manual
Power Rating	20 kVA
Power Rating	20 kVA
Product Line	SmartOnline
Product Line	SmartOnline
Product Name	SmartOnline S3MT-20K480V Isolation Transformer
Product Name	SmartOnline S3MT-20K480V Isolation Transformer
Product Series	S3MT
Product Series	S3MT
Product Type	Isolation Transformer
Product Type	Isolation Transformer
Shipping Weight (Approximate)	485 lb
Shipping Weight (Approximate)	485 lb
UPC Alternates	037332253132
UPC Alternates	037332253132
Weight (Approximate)	430 lb
Weight (Approximate)	430 lb
Width	17.4"
Width	17.4"

Material Safety Data Sheet
A Material Safety Data Sheet (MSDS) is a document that contains information on the potential hazards (health, fire, reactivity and environmental) and how to work safely with the chemical product.

Sorry this product does not have any reviews at this time.
