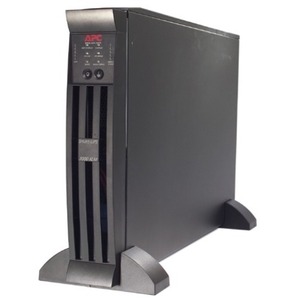

APC Smart-UPS XL 3000VA Rack Mountable/Tower - 3000VA/2850W - 3.5 Minute Full Load - 7 x IEC 320-C13 - Battery/Surge-protected, 1 x IEC 320-C19 - Battery/Surge-protected, 4 x - Battery/Surge-protected
3000VA/2850W - 3.5 Minute Full Load - 7 x IEC 320-C13 - Battery/Surge-protected, 1 x IEC 320-C19 - Battery/Surge-protected, 4 x - Battery/Surge-protected
| Bypass Switch | Automatic & Manual |
| Load Capacity (VA) | 3000 VA |
| Load Capacity (W) | 2850 W |
| Receptacle Detail | 1 x IEC 60320 C13 |
| Receptacle Detail | 7 x IEC 60320 C19 |
| Receptacle Detail | 4 |
| Waveform Type | Sine Wave |
| Additional Information | - Replacement battery cartridge: 1
- Battery Modules Shipped with Unit: 1
- Efficiency at full load: 89%
- Output Voltage Distortion: Less than 5% at full load
- Crest Factor: up to 5:1
- Units per Pallet: 8
- Adjustable voltage sensitivity
- Adjustable voltage-transfer points
- Automatic restart of loads after UPS shutdown
- Automatic self-test
- Boost and Trim Automatic Voltage Regulation (AVR)
- Cold-start capable
- Disconnected battery notification
- Generator compatible
- Scalable runtime
|
| Alarm | Configurable Delay |
| Alarm | On Battery |
| Alarm | Low Battery |
| Backup/Run Time (Full Load) | 3.50 Minute |
| Backup/Run Time (Half Load) | 11.90 Minute |
| Battery Chemistry | Sealed Lead Acid (SLA) |
| Battery Management | Intelligent Battery Management |
| Brand Name | APC by Schneider Electric |
| Certifications & Standards | - C-tick
- CE
- EN 50091-2
- EN 55022 Class A
- EN 61000-3-2
- GOST
- UL 1449
|
| Cord Length | 10 ft |
| Depth | 26.7" |
| Emergency Power OFF | Optional |
| Form factor | Rack-mountable |
| Height | 3.4" |
| Hot Swappable | Yes |
| Input voltage | 220 V AC |
| Limited Warranty | 2 Year |
| Load Capacity | 3000 VA/2850 W |
| Manufacturer | Schneider Electric SA |
| Manufacturer Part Number | SUM3000RMXLI2U |
| Manufacturer Website Address | http://www.schneider-electric.com |
| Marketing Information | APC Smart-UPS XL 3000VA protects your data by supplying reliable network-grade power with scalable run-time in tower and rack mount form factors. With optional matching battery packs run-time can be easily extended and optimized for the application. APC understands long run-time requirements so; Smart-UPS XL's can be configured with up to 10 additional battery packs - for run-times exceeding 24 hours if necessary. The convergence of voice and data networks is placing higher demands on availability expectations - and the Smart-UPS XL delivers. Voice over Internet Protocol (VoIP) e-commerce WiFi ("hotspots" WLAN/ WWAN and mixed wireless) and data enabled PBX's are a few of the applications driving the need for Smart-UPS XL. APC Smart-UPS XL is also the perfect UPS for fileservers (Intel or UNIX based) minicomputers Network switches and hubs ATM's telecommunications systems and other mission-critical applications requiring longer runtime. |
| Maximum Operating Temperature | 113°F (45°C) |
| Output voltage | 230 V AC |
| Output voltage | 240 V AC |
| Package Contents | Smart-UPS XL 3000VA Rack Mountable/Tower CD with softwareRack mounting bracketsRack mounting support railsSmart UPS signalling RS-232 cableUSB cableUser manual |
| Plug/Connector Type | IEC 320-C20 |
| Product color | Black |
| Product Family | Smart-UPS XL |
| Product Line | Smart-UPS |
| Product Name | Smart-UPS XL 3000VA Rack Mountable/Tower |
| Product Series | XL |
| Product Type | Line-interactive UPS |
| Rack Height | 2U |
| Receptacle Type | IEC 60320 C19 |
| Receptacle Type | IEC 60320 C13 |
| Status Indicators | - Load Bar-graphs
- Battery Bar-graphs
- On Line
- On Battery
- Replace Battery
- Overload
- Bypass
|
| Surge energy rating | 490 J |
| Thermal Dissipation | 87.92 W |
| UPC Alternates | 731304224501 731304224570 |
| Weight (Approximate) | 103 lb |
| Width | 17" |
