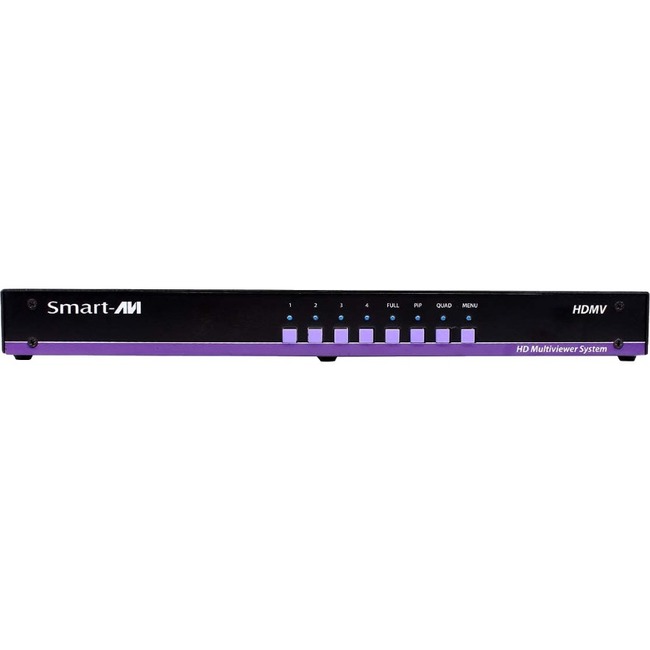

SmartAVI 4-Port HDMI, Real-Time Multiviewer with PiP/Dual/Quad/Full Modes - 1920 x 1200 - WUXGA - 4 x 1 - Display, Computer - 1 x HDMI Out
1920 x 1200 - WUXGA - 4 x 1 - Display, Computer - 1 x HDMI Out
| Brand Name | SmartAVI |
| Connectivity technology | Cable |
| Country of origin | United States |
| Depth | 10.2" |
| Device Supported | Computer |
| Device Supported | Display |
| Environmental Certification | RoHS |
| Environmentally Friendly | Yes |
| Form factor | Rack-mountable |
| Graphics Modes | WUXGA |
| Height | 1.7" |
| Manufacturer | Smart Audio Video Innovation |
| Manufacturer Part Number | SM-HDMV-S |
| Manufacturer Website Address | http://www.smartavi.com |
| Marketing Information | The HDMV is a member of SmartAVI's HD Multiviewer series of products that allows users to view up to four different HD digital video sources on one display device simultaneously. Connections to video sources are managed via HDMI or DVI connectors with advanced viewing options such as dual-mode quad-mode full-screen mode and PIP (picture in picture) mode. Use this device to simplify the management of multiple video sources by accessing and controlling them from a single set of controls on one display. - View up to four sources on a single monitor at the press of a button
- On-screen display (OSD) makes setup and switching easy
- Display each computer with clean and crisp high-resolution video
- Supports DVI-D input resolutions up to 1900 x 1200
- Supports 1080p HDMI output (1920 x 1080)
- Delivers uncompressed digital video with zero signal loss
- HDCP and HDMI 1.4 compliant
- Supports EDID for total control of compliant displays
- Outputs HDMI up to 40 feet
- 1920 x 1080 HDMI or DVI-D
- Change views by pressing the tact switches keyboard hotkeys and RS-232
- Quad-mode splits the screen to show four sources on one screen
- Dual-mode splits the screen to show two sources on one screen
- PiP-mode displays one device in full screen with three thumbnail views
|
| Maximum Operating Distance | 40 ft |
| Maximum Video Resolution | 1920 x 1200 |
| Number of HDMI Inputs | 4 |
| Number of HDMI Outputs | 1 |
| Package Contents | - 4-Port HDMI Real-Time Multiviewer with PiP/Dual/Quad/Full Modes
- 1 x CCPWR06 Cable
|
| Product Model | SM-HDMV |
| Product Name | 4-Port HDMI Real-Time Multiviewer with PiP/Dual/Quad/Full Modes |
| Product Type | Audio/Video Switchbox |
| UPC Alternates | 813280019668 |
| Weight (Approximate) | 4.05 lb |
| Width | 17" |
