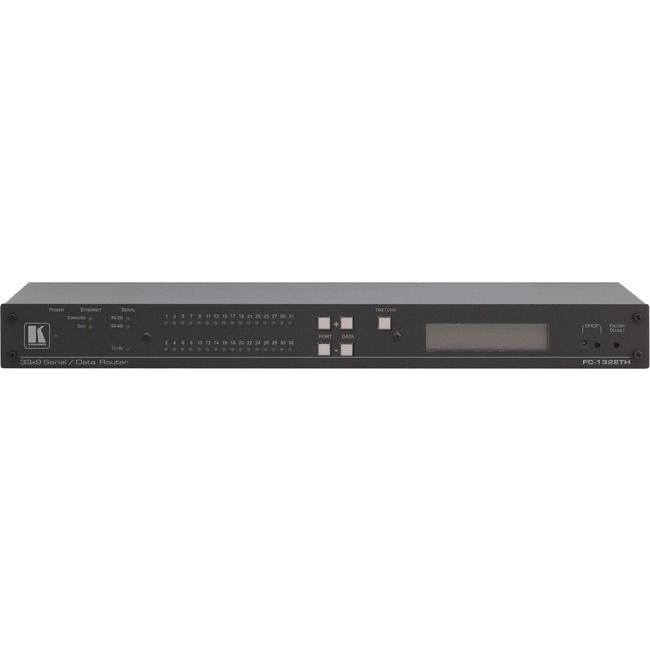

Kramer 32-Port Serial Control Gateway And Advanced Serial Communication Matrix

New

Kramer 32-Port Serial Control Gateway And Advanced Serial Communication Matrix - 17.2" Width x 7.2" Depth x 1.7" Height

0 Review(s) Item: FC-132ETH | By: Kramer | 0 In Stock

Sorry This Product is Currently not Available to Buy.

32 Bidirectional RS-232 output ports
1 Bidirectional RS-485 or RS-232 output port
8 Bidirectional RS-232 input ports
4 panel buttons and LCD display for ports switching control
1 panel button for switching take or lock control
1 Bidirectional RS-232 control port
1 Ethernet control port
Built-in control and support Web pages
Supported by: Kramer Control, K-Touch and K-Config

More Details

Sorry This Product is Currently not Available to Buy.

You may be also interested

Description
Reviews

Kramer 32-Port Serial Control Gateway And Advanced Serial Communication Matrix - 17.2" Width x 7.2" Depth x 1.7" Height
17.2" Width x 7.2" Depth x 1.7" Height

Product Specifications

Application/Usage	AV Scaler
Application/Usage	Rental/Staging
Application/Usage	Presentation
Brand Name	Kramer
Depth	7.2"
Height	1.7"
Manufacturer	Kramer Electronics LTD
Manufacturer Part Number	FC-132ETH

Manufacturer Website Address	http://www.kramerelectronics.com
Marketing Information	The FC-132ETH is an advanced Ethernet control gateway and serial communication matrix capable of plug and play deployment over a customer Ethernet LAN. Serving as an advanced serial communication matrix the FC-132ETH has 32 RS-232 and one RS-232/RS-485 output ports. Serial communication data is switchable to one or more of the eight RS-232 input ports. This can be done according to local control of panel buttons or RS-232 control port or remote control via Ethernet port control protocol or web-page browsing. Depending on matrix routing one-to-one bidirectional or one-to-many unidirectional serial switched communication is supported. Serving as a control gateway FC-132ETH is capable of remote bidirectional control of customer-controlled devices serially connected to its 32 RS-232 and one RS-232/RS-485 input ports. Multiple control clients can be IP-connected to the FC-132ETH control gateway for concurrent control of two RS-232 or RS-485 controllable devices such as AV scalers video displays and audio amplifiers. 1 RS-485 or RS-232 Selectable Bi-directional Output Port - Controls a device via bi-directional serial control protocols. 32 Bidirectional RS-232 Output Ports - Control a device via bi-directional serial control protocols. 8 Bidirectional RS-232 Input Ports - Switchable serial communication to one or more of the serial input ports. 4 Panel Buttons & LCD Display - Local panel control of serial matrix ports switching. 1 Panel Take / Lock Button - Local panel switching control or tampering prevention. 1 Bidirectional RS-232 Control Port - Local protocol-based switching control port. 1 Ethernet Control Port - Remote protocol-based control port? Built-in Web Pages - Remote browser-based control and support. Simultaneous IP Control Communication - With up to 40 IP control clients. Mini USB Port - For firmware upgrades and local technical services. Easy Installation - Plug & play IP auto-setup deployment for simple and cost-reducing installation.
Package Contents	32-Port Serial Control Gateway And Advanced Serial Communication Matrix Power Cord Rack Mounting Brackets
Power source	AC
Product Name	32?Port Serial Control Gateway And Advanced Serial Communication Matrix
Product Type	Ethernet Control Gateway/Serial Communication Matrix
UPC Alternates	818252109835
Weight (Approximate)	3.75 lb
Width	17.2"

Material Safety Data Sheet
A Material Safety Data Sheet (MSDS) is a document that contains information on the potential hazards (health, fire, reactivity and environmental) and how to work safely with the chemical product.

Sorry this product does not have any reviews at this time.
