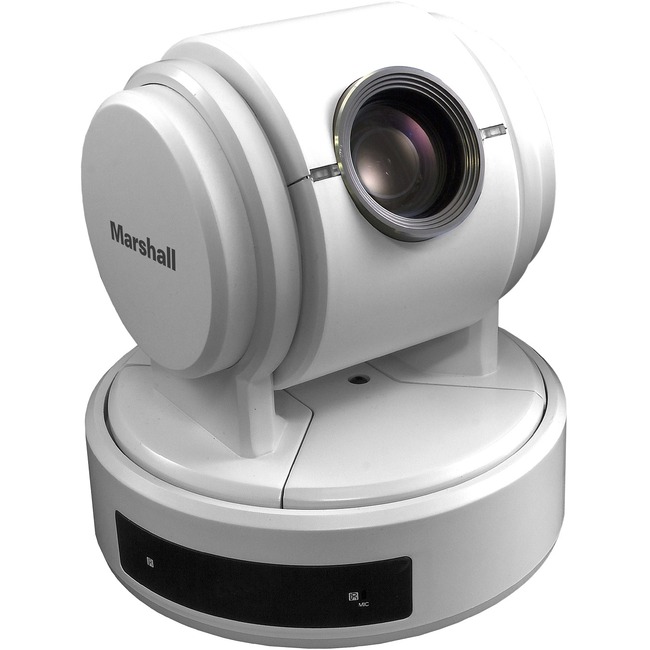

Marshall 2 Megapixel Indoor/Outdoor HD Surveillance Camera - 1920 x 1080 - 3.80 mm - 10x Optical - CMOS - HDMI - Table Mount, Shelf Mount, Tripod Mount, Ceiling Mount
1920 x 1080 - 3.80 mm - 10x Optical - CMOS - HDMI - Table Mount, Shelf Mount, Tripod Mount, Ceiling Mount
| Field of View | 62.5 |
| Indoor/Outdoor | Indoor/Outdoor |
| Maximum Aperture | f/3.4 |
| Minimum Aperture | f/1.8 |
| Minimum Focal Length | 3.80 mm |
| Brand Name | Marshall |
| Color Supported | Color |
| Connectivity technology | Wired |
| Diameter | 5.7" |
| Effective Camera Resolution | 2 Megapixel |
| Environmental Certification | WEEE |
| Environmentally Friendly | Yes |
| Features | Built-in Microphone |
| Height | 6.1" |
| Image Sensor Type | CMOS |
| Input voltage | 12 V DC |
| Longest Shutter Speed | 1/1 Second |
| Manufacturer | Marshall Electronics Inc |
| Manufacturer Part Number | CV610-U3W-V2 |
| Manufacturer Website Address | http://www.mars-cam.com |
| Marketing Information | - 2-Megapixel HD Sensor
- 10x Optical Zoom: 62.5°~6.4°Horizontal AOV (12x Digital Zoom)
- Compact overall footprint (approx.): 145mm diameter 112mm head diameter 155mm height
- USB 3.0/2.0 (uncompressed) output with simultaneous HDMI output
- Full-HD resolutions: 1920x1080p 1280x720p
- Frame rates: 60 50 30 25 fps
- HDMI output resolution can be set independently of USB output resolutions
- Onboard audio mic & 3.5mm TRS audio jack (optional input)
- Pan-Tilt Range: 350° Horizontal Pan Range / 120° Tilt Range
- Up to 128 presets with quiet smooth transitions
- Control via common software UVC codecs IR Remote RS232 RS485 and USB 3.0/2.0
- Breakout Cable USB 3.0/2.0 cable and 12V Power Cord included with camera
Marshall's new second-generation CV610-U3W-V2 is a compact USB PTZ camera with backwards compatibility (USB 3.0/2.0) a wider horizontal Angle-of-View (AOV) at 63° and simultaneous HDMI livestream output. The CV610-U3W-V2 has a compact footprint and uses common control protocols over USB (UVC 1.5 and UAV 2.0) making it a versatile and easy-to-use PTZ camera that can be integrated with a variety of different software codecs. The CV610-U3W-V2 was developed to deliver next-level performance for any UCC teleconference Pro A/V or livestreaming applications with HD video output in 1920x1080p at 60/50/30/25 fps and 1280x720 at 60/50/30/25 fps. |
| Maximum Focal Length | 38 mm |
| Maximum frame rate | 60 fps |
| Maximum Video Resolution | 1920 x 1080 |
| Mount Type | Tripod Mount |
| Mount Type | Table Mount |
| Mount Type | Shelf Mount |
| Mount Type | Ceiling Mount |
| Optical zoom | 10x |
| Package Contents | - 10x HD60 USB/HDI PTZ Camera
- Breakout Cable
- USB 3.0/2.0 Cable
- 12VPower Cord
|
| Product color | White |
| Product Name | 10x HD60 USB/HDI PTZ Camera |
| Product Type | Surveillance Camera |
| Recording Formats | HD |
| Shortest Shutter Speed | 1/10000 Second |
| UPC Alternates | 801813187595 |
