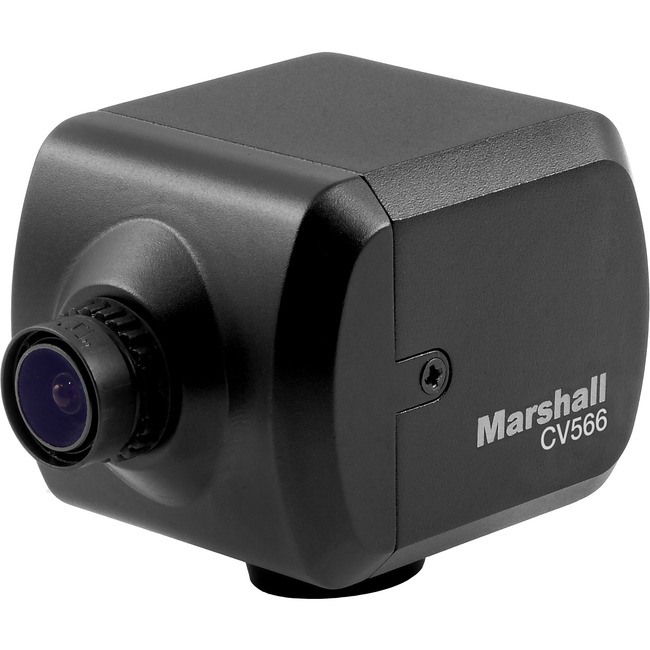

Marshall CV566 2.2 Megapixel Full HD Network Camera - Color

Name: Marshall CV566 2.2 Megapixel Full HD Network Camera - Color
Brand: Marshall Electronics, Inc
SKU: 08KW34
Price: 487.95 USD

New

Marshall CV566 2.2 Megapixel Full HD Network Camera - Color - 1920 x 1080 - 4 mm Fixed Lens - CMOS - HDMI

0 Review(s) Item: CV566 | By: Marshall | 0 In Stock

Sorry This Product is Currently not Available to Buy.

2.2 Megapixel (1/2.8") Sony sensor
Color Matrix control: Style, Master level/phase, Color level/phase
Interchangeable M12 lens mount (includes stock 4.0mm lens 85°H. AOV)
Durable aluminum alloy body with rear connection protection ears
3GSDI + HDMI outputs with Genlock 3G/HD-SDI Tri-Level Sync for quick switching
HD Resolutions: 1920x1080p, 1280x720p and 1920x1080i
Framerates Supported: 60, 59.94, 50, 30, 29.97, 25, 24, 23.98fps
Remote adjust & match via Camera Control Software, CV-RCP-V2 (CCU) or 3rd party sources
Micro-USB port for firmware upgrades in the field (downloadable from website)
Locking Hirose Cable: Genlock (I/O), RS485 control, Audio (stereo) and 12V Power

More Details

Sorry This Product is Currently not Available to Buy.

Analog Video Signal Format	3G/HD-SDI
Analog Video Signal Format	3G-SDI
Field of View	85°H. AOV
Lens Mount Type	M12-mount
Brand Name	Marshall
Color Supported	Color
Connectivity technology	Wired
Effective Camera Resolution	2.2 Megapixel
Features	Automatic White Balance
HDMI	Yes
Image Sensor Type	CMOS
Input voltage	12 V DC
Lens Type	Fixed

Manufacturer	Marshall Electronics Inc
Manufacturer Part Number	CV566
Manufacturer Website Address	http://www.mars-cam.com
Marketing Information	The Marshall Micro CV566 Genlock Camera is built around a next generation Sony 1/2.8" solid-state sensor with 2.2 Megapixels and Tri-Level (Genlock) Sync feature. CV566 delivers exceptional video performance from a micro-size body through 3GSDI & HDMI with true-color even in low-light (0.01Lux). Choose HD resolutions up to 1920x1080p (progressive) 1280x720p (progressive) & 1920x1080i (interlaced) with a wide selection of framerates including 23.98 24 25 29.97 30 50 59.94 and 60fps serving a variety of applications. New Sony 1/2.8" (6.46mm) CMOS Solid-Sate Image Sensors The next generation Sony Exmor sensors provide clear HD images with true color even in low-light (0.01Lux) and ability to switch to night mode (0.005Lux) where IR light wavelengths can be captured. Genlock Tri-Level Sync FeatureTri-level sync runs at higher frequency which allows multiple cameras to be plugged into HD workflows already in sync (genlock) with much less latency when switched and more seamless transitions. Durable Flexible Powerful Performance The durable CV500-series cameras are chiseled from one block of aluminum alloy with rear panel protection which enable them to be used in rough environments and continue to produce clean reliable signals. Broadcast Performance Marshall Camera Division continues to develop camera products to follow the heritage of Marshall broadcast quality incorporating reliability durability flexibility and most importantly affordability with feature sets that matter.
Maximum Focal Length	4 mm
Maximum frame rate	60 fps
Maximum Video Resolution	1920 x 1080
Package Contents	Micro Genlock Camera (3GSDI/HDMI) Power Supply
Power source type	DC
Product Name	Micro Genlock Camera (3GSDI/HDMI)
Product Series	CV500
Product Type	Network Camera
Recording Formats	Full HD
UPC Alternates	801813228649
