Socket Mobile DuraSled DS820 - 1D/2D Linear Barcode Plus QR Code Scanner - Wireless Connectivity - 14.96" Scan Distance - 1D, 2D - LED - Linear - Omni-directional - Bluetooth - USB - IP40 - USB - Retail, Hospitality, Logistics, Healthcare, Inventory, Transportation, Warehouse, Field Sales/Service
Wireless Connectivity - 14.96" Scan Distance - 1D, 2D - LED - Linear - Omni-directional - Bluetooth - USB - IP40 - USB - Retail, Hospitality, Logistics, Healthcare, Inventory, Transportation, Warehouse, Field Sales/Service
| Battery Weight | 0.44 oz |
| Battery Weight | 0.44 oz |
| Drop Specification | Multiple drops to vinyl covered concrete at about 3 ft or 1 m |
| Drop Specification | Multiple drops to vinyl covered concrete at about 3 ft or 1 m |
| Field of View (Horizontal) | 45° |
| Field of View (Horizontal) | 45° |
| Field of View (Vertical) | 34° |
| Field of View (Vertical) | 34° |
| Ingress Protection (IP) Rating | IP40 |
| Ingress Protection (IP) Rating | IP40 |
| Ingress Protection (IP) Rating | IP40 |
| Ingress Protection (IP) Rating | IP40 |
| Maximum Ambient Light | 100000 lux |
| Maximum Ambient Light | 100000 lux |
| Maximum Element Resolution (Code 39) | 5 mil |
| Maximum Element Resolution (Code 39) | 5 mil |
| Maximum Element Resolution (DataMatrix) | 10 mil |
| Maximum Element Resolution (DataMatrix) | 10 mil |
| Minimum Print Contrast | 25% |
| Minimum Print Contrast | 25% |
| Scan Pattern | Omni-directional |
| Scan Pattern | Omni-directional |
| Scanning Capability | 2D |
| Scanning Capability | 1D |
| Scanning Capability | 1D |
| Scanning Capability | 2D |
| Scanning Distance | 14.96" |
| Scanning Distance | 14.96" |
| Application/Usage | Retail |
| Application/Usage | Hospitality |
| Application/Usage | Inventory |
| Application/Usage | Healthcare |
| Application/Usage | Logistics |
| Application/Usage | Field Sales/Service |
| Application/Usage | Healthcare |
| Application/Usage | Logistics |
| Application/Usage | Transportation |
| Application/Usage | Transportation |
| Application/Usage | Inventory |
| Application/Usage | Warehouse |
| Application/Usage | Warehouse |
| Application/Usage | Retail |
| Application/Usage | Hospitality |
| Application/Usage | Field Sales/Service |
| Barcode Symbology Supported | 1D: - Codabar
- Code 39
- Code 93
- Code 128
- EAN-13
- EAN-8
- Interleaved 2 of 5
- ISBT 128
- UPC A
- UPC E1
- Chinese 2 of 5
- Codabar
- Code 11
- Code 16KCode 39
- Code 93
- Code 128
- Discrete 2 of 5
- EAN-13
- EAN-8
- GS1 Databar
- Industrial 2 of 5
- Interleaved 2 of 5
- Matrix 2 of 5
- MSI Plessey
- UPC A
- UPC E1
- Standard 2 of 5
- UK Plessey
2D:
- Data Matrix
- Micro QR Code
- PDF417
- QR Code
- Aztec
- Data Matrix
- Han Xin
- Micro PDF417
- Micro QR Code
- PDF417
- QR Code
|
| Barcode Symbology Supported | 1D: - Codabar
- Code 39
- Code 93
- Code 128
- EAN-13
- EAN-8
- Interleaved 2 of 5
- ISBT 128
- UPC A
- UPC E1
- Chinese 2 of 5
- Codabar
- Code 11
- Code 16KCode 39
- Code 93
- Code 128
- Discrete 2 of 5
- EAN-13
- EAN-8
- GS1 Databar
- Industrial 2 of 5
- Interleaved 2 of 5
- Matrix 2 of 5
- MSI Plessey
- UPC A
- UPC E1
- Standard 2 of 5
- UK Plessey
2D:
- Data Matrix
- Micro QR Code
- PDF417
- QR Code
- Aztec
- Data Matrix
- Han Xin
- Micro PDF417
- Micro QR Code
- PDF417
- QR Code
|
| Brand Name | Socket Mobile |
| Brand Name | Socket Mobile |
| Compatibility | Apple - iPhone 13/14 & iPhone 13/14 Pro |
| Compatibility | Apple - iPhone 13/14 and Pro |
| Compatibility | Apple - iPhone 13/14 and Pro |
| Connectivity technology | Wireless |
| Connectivity technology | Wireless |
| Country of origin | United States |
| Country of origin | United States |
| Environmental Certification | RoHS |
| Environmental Certification | WEEE |
| Environmental Certification | RoHS |
| Environmental Certification | WEEE |
| Environmentally Friendly | Yes |
| Environmentally Friendly | Yes |
| Form factor | Handheld |
| Host interface | USB |
| Host interface | USB |
| Image Sensor Type | Linear |
| Image Sensor Type | Linear |
| Light source | LED |
| Light source | LED |
| Limited Warranty | 1 Year |
| Limited Warranty | 1 Year |
| Manufacturer | Socket Mobile Inc |
| Manufacturer | Socket Mobile Inc |
| Manufacturer Part Number | CX4085-3152 |
| Manufacturer Part Number | CX4085-3152 |
| Manufacturer Website Address | http://www.socketmobile.com |
| Manufacturer Website Address | http://www.socketmobile.com |
| Marketing Information | Linear Barcode Plus QR Code Scanner

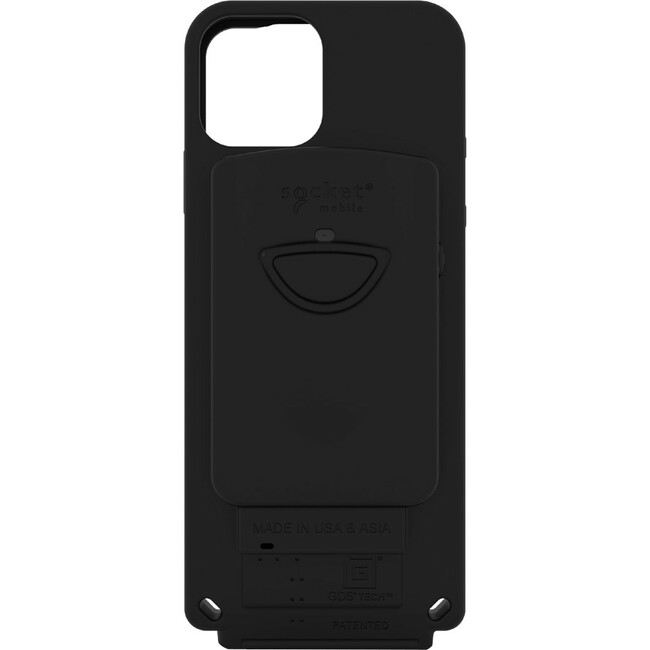

The DuraSled™ DS820 is a linear barcode & QR Code scanner sled for 1D/2D barcodes with Bluetooth® wireless technology for Apple iPhones and iPods. The DuraSled reads printed or on-screen barcodes. It is easy-to-use and ideal for delivery services asset tracking ticketing and other application-driven mobile solutions. Its case protects phones from drop damage and provides simultaneous charging of the scanner and the phone.
The Capture SDK enables easy integration into native and/or web-based applications that use scanning to enhance the productivity of workers using iPhones.
|
| Marketing Information | The DuraSled™ DS840 is a universal 1D/2D barcode scanning sled with Bluetooth® wireless technology for Apple iPhones and iPods that creates a one-handed solution. Ideal for delivery services asset tracking ticketing and other application-driven mobile solutions. Its rugged case protects phones from drop damage.
Simply insert your iPhone pair your scanner and you are ready to go. It's easy for workers to mix and match DuraSled™ solutions for iPhones all while using the same accessories and application. The core components don't change when switching to a new iPhone model. |
| Marketing Information | Linear Barcode Plus QR Code Scanner
The DuraSled™ DS820 is a linear barcode & QR Code scanner sled for 1D/2D barcodes with Bluetooth® wireless technology for Apple iPhones and iPods. The DuraSled reads printed or on-screen barcodes. It is easy-to-use and ideal for delivery services asset tracking ticketing and other application-driven mobile solutions. Its case protects phones from drop damage and provides simultaneous charging of the scanner and the phone.
The Capture SDK enables easy integration into native and/or web-based applications that use scanning to enhance the productivity of workers using iPhones.
|
| Package Contents | - DuraSled DS820 - 1D/2D Linear Barcode Plus QR Code Scanner
- GDS Charging Dock
- USB Charging Cable
- 1 year limited Warranty on DuraSled barcode scanner
|
| Package Contents | - DS840 Barcode Sled Scanner
- GDS Charging Dock
- USB Charging Cable
- 1 year limited Warranty on DuraSled and charging dock
|
| Package Contents | - DuraSled DS820 - 1D/2D Linear Barcode Plus QR Code Scanner
- GDS Charging Dock
- USB Charging Cable
- 1 year limited Warranty on DuraSled barcode scanner
|
| Platform Supported | iOS |
| Platform Supported | iOS |
| Product Line | DuraSled |
| Product Line | DuraSled |
| Product Model | DS820 |
| Product Model | DS820 |
| Product Name | DS840 Barcode Sled Scanner |
| Product Name | DuraSled DS820 - 1D/2D Linear Barcode Plus QR Code Scanner |
| Product Name | DuraSled DS820 - 1D/2D Linear Barcode Plus QR Code Scanner |
| Product Type | Barcode Scanner |
| Product Type | Barcode Scanner |
| UPC Alternates | 758497122704 |
