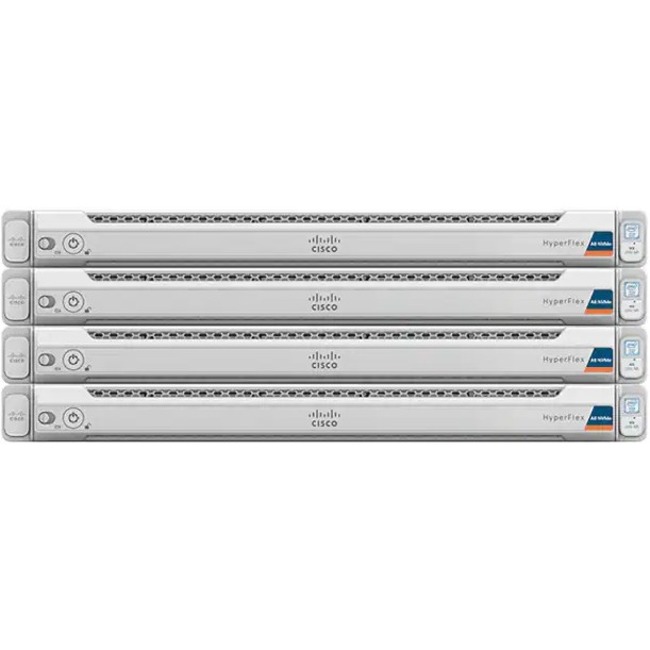

Cisco HyperFlex HX220 M6 Barebone System - 1U Rack-mountable - 2 x Processor Support - Intel C621A Chip - 4 TB DDR4 SDRAM DDR4-3200/PC4-25600 Maximum RAM Support - 32 Total Memory Slots - 12Gb/s SAS, Serial ATA/600 Controller - Matrox G200e 8 MB Graphic(s) - 10 2.5" Bay(s) - Processor Support (Xeon Platinum, Xeon Gold, Xeon Silver, Xeon Bronze) - Gigabit Ethernet, 10 Gigabit Ethernet - 2 USB 3.0 Port(s) - 3 Year
Intel C621A Chip - 4 TB DDR4 SDRAM DDR4-3200/PC4-25600 Maximum RAM Support - 32 Total Memory Slots - 12Gb/s SAS, Serial ATA/600 Controller - Matrox G200e 8 MB Graphic(s) - 10 2.5" Bay(s) - Processor Support (Xeon Platinum, Xeon Gold, Xeon Silver, Xeon Bronze) - Gigabit Ethernet, 10 Gigabit Ethernet - 2 USB 3.0 Port(s) - 3 Year
| 64-bit Processing | Yes |
| Chipset | Intel C621A |
| Chipset Manufacturer | Intel |
| Chipset Model | C621A |
| Graphics Controller Manufacturer | Matrox |
| Graphics Controller Model | G200e |
| Graphics Memory Capacity | 8 MB |
| Maximum Memory Supported | 4 TB |
| Memory Standard | DDR4-3200/PC4-25600 |
| Number of Internal 2.5" Bays | 10 |
| Number of Processors Supported | 2 |
| Number of Total Expansion Slots | 5 |
| Processor Supported | Xeon Platinum |
| Processor Supported | Xeon Silver |
| Processor Supported | Xeon Bronze |
| Processor Supported | Xeon Gold |
| Supported Storage Drive Interfaces | Serial ATA III |
| Supported Storage Drive Interfaces | SAS-3 |
| Additional Warranty Information | - Next business day (NBD) onsite parts replacement eight hours a day five days a week.
- 90-day software warranty on media.
|
| Brand Name | Cisco |
| Controller Type | Serial ATA/600 |
| Controller Type | 12Gb/s SAS |
| Depth | 30" |
| Ethernet Technology | 10 Gigabit Ethernet |
| Ethernet Technology | Gigabit Ethernet |
| Form factor | Rack-mountable |
| Frequency | 50 Hz |
| Frequency | 60 Hz |
| Height | 1.7" |
| Input voltage | 230 V AC |
| Input voltage | 120 V AC |
| Limited Warranty | 3 Year |
| Manufacturer | Cisco Systems Inc |
| Manufacturer Part Number | HXAF-E-220M6S |
| Manufacturer Website Address | http://www.cisco.com |
| Marketing Information | Cisco HyperFlex Edge Systems are optimized for remote sites branch offices and edge environments. As a smaller form factor of Cisco HyperFlex Cisco HyperFlex Edge keeps the full power of a next generation hyperconverged platform even without connecting to Cisco UCS Fabric Interconnects. Cisco HyperFlex Edge Systems support a variable configuration of 2 3 or 4 HX converged nodes and supports the scale up of CPU memory and storage capacity (hot-add additional capacity drives). |
| Memory Technology | DDR4 SDRAM |
| Number of Total Memory Slots | 32 |
| Number of VGA Ports | 1 |
| Product Family | HyperFlex HX220 M6 Edge |
| Product Line | HyperFlex |
| Product Model | HX220 M6 |
| Product Name | HyperFlex HX220 M6 Edge Barebone System |
| Product Series | HX220 M6 Edge |
| Product Type | Barebone System |
| Rack Height | 1U |
| RAID Supported | No |
| Weight (Approximate) | 42.55 lb |
| Width | 16.9" |
