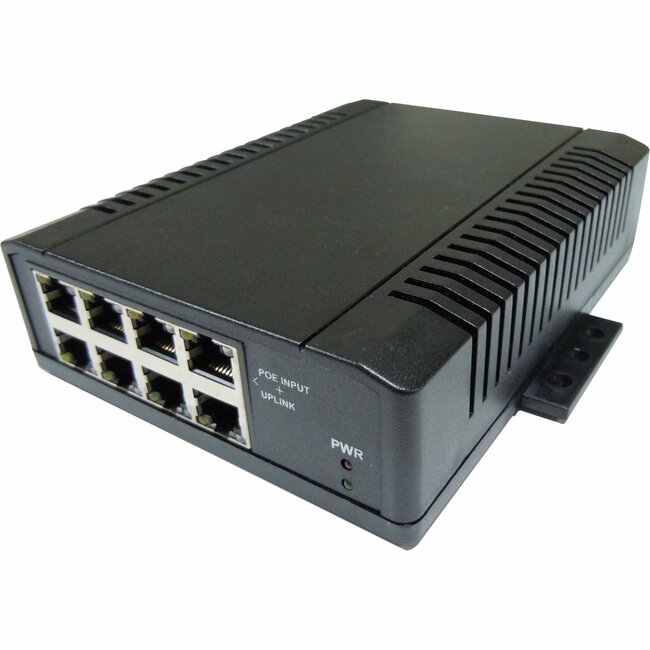

Tycon Power PoE 8 Port Switch

Tycon Power PoE 8 Port Switch

New
Tycon Power PoE 8 Port Switch - 8 Ports - Fast Ethernet - 10/100Base-TX - 2 Layer Supported - PoE - Twisted Pair - PoE Ports - Rail-mountable - 1 Year Limited Warranty
0 Review(s) Item: TP-SW8-NC | By: Tycon Power |  0 In Stock

Sorry This Product is Currently not Available to Buy.

  • Features 8 networking ports to easily establish a local network or expand your existing one
  • Cascade to other network devices through the uplink port to expand your local area network
  • Electrical power is transmitted along with data in a single cable to devices such as Access Points, IP cameras or IP phones
  • Supports cost-efficient twisted pair cables for high-speed data transfer up to 100 meters
  • Featuring Fast Ethernet ports to speed up the transfer rate up to 100mb/sec of large files and digital assets across your network
  • With leading Layer 2 support, experience enhanced convenience, secure business operations, and a borderless network experience
  • No need for power lines and outlets, the switch is capable of obtaining power from the PoE source
  • Rail mounting is ideal for factory areas, in vehicles and marine applications
More Details
Sorry This Product is Currently not Available to Buy.

You may be also interested
Tycon Power PoE 8 Port Switch - 8 Ports - Fast Ethernet - 10/100Base-TX - 2 Layer Supported - PoE - Twisted Pair - PoE Ports - Rail-mountable - 1 Year Limited Warranty
8 Ports - Fast Ethernet - 10/100Base-TX - 2 Layer Supported - PoE - Twisted Pair - PoE Ports - Rail-mountable - 1 Year Limited Warranty

Product Specifications

Number of PoE (RJ-45) Ports8
Brand NameTycon Power
Certifications & Standards
  • CE
  • FCC
IEEE standards:
  • 802.3
  • 802.3af
  • 802.3at
  • 802.3u
  • 802.3x
Depth6.3"
Ethernet TechnologyFast Ethernet
Form factorRail-mountable
Height1.6"
Input voltage57 V DC
Layer Supported2
Limited Warranty1 Year
ManageableNo
ManufacturerTycon Power Systems
Manufacturer Part NumberTP-SW8-NC
Manufacturer Website Addresshttp://www.tyconpower.com
Marketing InformationThe TP-SW8-D Power Over Ethernet 802.3af/at (PoE) 10/100Mb switch offered by Tycon Power Systems is a fully automatic high speed 8 port Ethernet switch. The -NC version is a non compliant model for devices which are not 802.3af/at compliant. On the -NC version the PoE output voltage = the input voltage so it is universal in its application. The DC input power range can be from 12V to 57V. The units can be powered via PoE to port 8 (2A max). Both models supply power to the remote device on the unused Ethernet pins 45(V+) and 78(V-). The Ethernet spec supports distances up to 100m (328 feet) between the PoE switch and the remote device.

18V 24V and 48V 60W 120W and 180W power supplies are available. There are 2 power inputs for attachment of primary and backup power sources.
Media Type SupportedTwisted Pair
Network Technology10/100Base-TX
Package Contents
  • PoE 8 Port Switch
  • DIN Rail Mounts
Port/Expansion Slot Details7 x Fast Ethernet Network
Port/Expansion Slot Details1 x Fast Ethernet Uplink
Power sourcePoE
Product NamePoE 8 Port Switch
Product SeriesTP-SW8
Product TypeEthernet Switch
Twisted Pair Cable StandardCategory 5
UPC Alternates633090397660 818216669733
Uplink PortYes
Weight (Approximate)15.87 oz
Width4.6"
