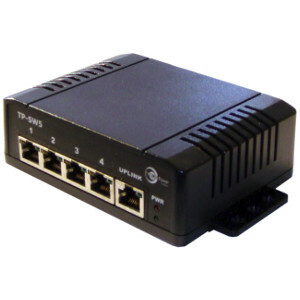

Tycon Power Universal Voltage 10/100 POE Switch - 5 Ports - Fast Ethernet - 10/100Base-TX - 2 Layer Supported - AC Adapter - Twisted Pair - Rail-mountable - 2 Year Limited Warranty
5 Ports - Fast Ethernet - 10/100Base-TX - 2 Layer Supported - AC Adapter - Twisted Pair - Rail-mountable - 2 Year Limited Warranty
Number of PoE (RJ-45) Ports | 1 |
Total Number of Network Ports | 5 |
Brand Name | Tycon Power |
Certifications & Standards | IEEE Standards:
|
Depth | 3.5" |
Ethernet Technology | Fast Ethernet |
Form factor | Rail-mountable |
Height | 1.6" |
Layer Supported | 2 |
Limited Warranty | 2 Year |
Manageable | No |
Manufacturer | Tycon Power Systems |
Manufacturer Part Number | TP-SSW5-NC |
Manufacturer Website Address | http://www.tyconpower.com |
Marketing Information | The SW5 Series Power Over Ethernet (POE) switches offered by Tycon Power Systems are fully automatic high speed 5 port Ethernet switches with up to 2A of POE power per port. The switch comes in 4 models: TP-SW5G-D: IEEE802.3af/at Compliant 48VDC 10/100/1000MB POE Switch. Switch accepts 48VDC power via a wire terminal connector on the back of the Switch or via 48VDC POE into the 802.3af/at compliant uplink port (90W max). 35W per port. TP-SW5G-24: IEEE802.3af/at Compliant 48VDC 10/100/1000MB POE Switch. Switch accepts 12-36VDC power via a wire terminal connector on the back of the Switch or via 48VDC POE into the 802.3af/at compliant uplink port (90W max). Perfect for remote solar/battery systems. 35W per port. TP-SW5G-NC: Universal Voltage 10/100/1000MB POE Switch. Switch accepts universal voltage (12-57VDC) via the wire terminal connector on the back of the switch. Also accepts 12-57VDC (1A max) Passive POE input on port 5. 1A per port. TP-SSW5-NC: Universal Voltage 10/100 POE Switch. Switch accepts universal voltage (12-57VDC) via the wire terminal connector on the back of the Switch. This model is very compact at only 4"x5"x1.5". 2A per port. |
Media Type Supported | Twisted Pair |
Network Technology | 10/100Base-TX |
Number of Network (RJ-45) Ports | 4 |
Package Contents | - Universal Voltage 10/100 POE Switch
- DIN Rail Mounting Kit
|
Port/Expansion Slot Details | 5 x Fast Ethernet Network |
Power source | AC Adapter |
Product Name | Universal Voltage 10/100 POE Switch |
Product Series | TP-SW5 |
Product Type | Ethernet Switch |
Twisted Pair Cable Standard | Category 5 |
UPC Alternates | 633090397585 |
Uplink Port | Yes |
Weight (Approximate) | 6.42 oz |
Width | 4.6" |
