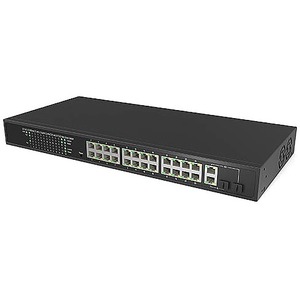

Wisenet EN-SW26M-001 Ethernet Switch - 26 Ports - Manageable - Gigabit Ethernet, Fast Ethernet - 10/100/1000Base-T, 1000Base-X - 3 Layer Supported - Modular - 370 W PoE Budget - Optical Fiber, Twisted Pair - PoE Ports - Rack-mountable
26 Ports - Manageable - Gigabit Ethernet, Fast Ethernet - 10/100/1000Base-T, 1000Base-X - 3 Layer Supported - Modular - 370 W PoE Budget - Optical Fiber, Twisted Pair - PoE Ports - Rack-mountable
| Number of Total Expansion Slots | 2 |
| PoE Budget | 370 W |
| Total Number of Network Ports | 26 |
| Application/Usage | Network |
| Brand Name | Wisenet |
| Country of origin | China |
| Ethernet Technology | Fast Ethernet |
| Ethernet Technology | Gigabit Ethernet |
| Form factor | Rack-mountable |
| Frequency | 60 Hz |
| Frequency | 50 Hz |
| Height | 1.7" |
| Input voltage | 120 V AC |
| Input voltage | 230 V AC |
| Layer Supported | 3 |
| Length | 17.3" |
| Manageable | Yes |
| Manufacturer | Hanwha Group |
| Manufacturer Part Number | EN-SW26M-001 |
| Manufacturer Website Address | http://www.hanwha.com |
| Marketing Information | Wisenet SKY Managed PoE switches are industry standard highly reliable PoE switches designed to seamlessly integrate with the Wisenet SKY Cloud VMS and Wisenet cameras. Key Features - Reports the status of each port
- Configured to use either DHCP or a static IP address
- Power can be turned on and off for each port
- Reports for network traffic information for each port
- Measures current PoE power draw for each PoE port
- Enables web management on a port by port basis
SFP MODULE
The EN-SWSFP-001 SFP module provides on optical MultiMode Fiber connection for connecting network infrastructure (850nm 1.25Gbps 550m). |
| Media Type Supported | Optical Fiber |
| Media Type Supported | Twisted Pair |
| Network Technology | 10/100/1000Base-T |
| Network Technology | 1000Base-X |
| Networking standards | IEEE 802.3at |
| Networking standards | IEEE 802.3af |
| Package Contents | - EN-SW26M-001 Ethernet Switch
- Mount Ears
|
| Port/Expansion Slot Details | 2 x Fast Ethernet Uplink |
| Port/Expansion Slot Details | 2 x Gigabit Ethernet Combo Port |
| Port/Expansion Slot Details | 24 x Fast Ethernet PoE |
| Power source | Power Supply |
| Product Name | EN-SW26M-001 Ethernet Switch |
| Product Type | Ethernet Switch |
| UPC Alternates | 849688018019 |
| Weight (Approximate) | 7.33 lb |
| Width | 7.9" |
