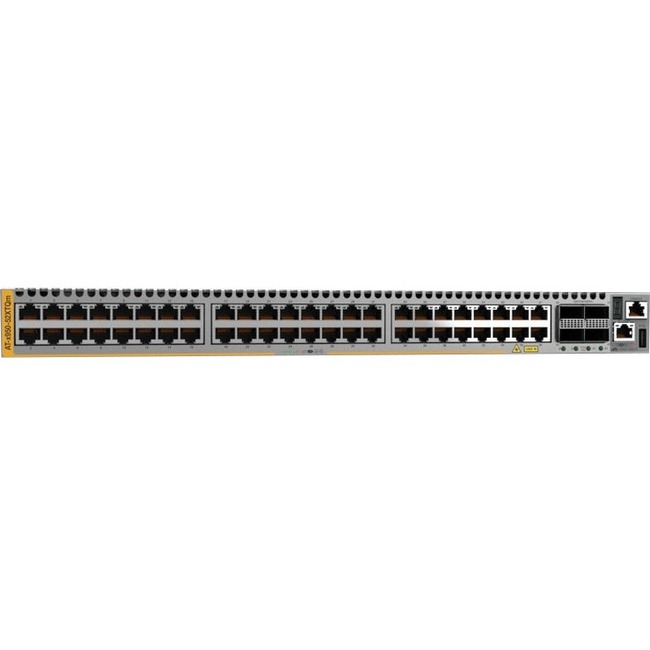

Allied Telesis AT-x950-52XTQm Layer 3 Switch - 48 Ports - Manageable - 10 Gigabit Ethernet, 100 Gigabit Ethernet - 100GBase-X, 10GBase-T - 3 Layer Supported - Modular - 300 W Power Consumption - Optical Fiber, Twisted Pair - 1U High - Rack-mountable
48 Ports - Manageable - 10 Gigabit Ethernet, 100 Gigabit Ethernet - 100GBase-X, 10GBase-T - 3 Layer Supported - Modular - 300 W Power Consumption - Optical Fiber, Twisted Pair - 1U High - Rack-mountable
| Compatible Rack Unit | 1U |
| Number of Power Supplies Supported | 2 |
| Number of Total Expansion Slots | 4 |
| Total Number of Network Ports | 48 |
| Application/Usage | Enterprise |
| Application/Usage | Network |
| Application/Usage | Data Center |
| Application/Usage | Business |
| Brand Name | Allied Telesis |
| Depth | 17.7" |
| Ethernet Technology | 10 Gigabit Ethernet |
| Ethernet Technology | 100 Gigabit Ethernet |
| Expansion Slot Type | QSFP+ |
| Expansion Slot Type | QSFP28 |
| Form factor | Rack-mountable |
| Frequency | 47 Hz |
| Frequency | 63 Hz |
| Height | 1.7" |
| Input voltage | 230 V AC |
| Input voltage | 120 V AC |
| Layer Supported | 3 |
| Manageable | Yes |
| Manufacturer | Allied Telesis Inc |
| Manufacturer Part Number | AT-X950-52XTQM-B05 |
| Manufacturer Website Address | http://www.alliedtelesis.com |
| Marketing Information | Expandable 10G/40G/100G Stackable Layer 3+ Switches
Allied Telesis x950 Series switches are ideal for the modern enterprise network core where stacking creates a resilient local or distributed solution. These powerful switches support 100 Gigabit connectivity and provide the capacity that today's Smart City and IoT networks need.
x950 Series switches feature a high-performing 1.92 Terabit fabric to eliminate bottlenecks and effortlessly forward all traffic.
x950 switches feature 24 or 48 x 1/10 Gigabit SFP+ ports or 24 or 48 x 1/2.5/5/10 Gigabit copper ports to enable flexible deployment while 4 x built-in 40G/100G ports provide high-speed backbone connectivity. 24-port models also feature an expansion (XEM) bay to easily add more capacity. Stack multiple units for a future-proof network.
Smart City and IoT networks
Large switching and routing tables support Smart City networks and the Internet of Things (IoT). The x950 Series meets the increasing demand for the convergence of multiple services.
Network automation
Allied Telesis Autonomous Management Framework™ (AMF) meets the increasing management requirements of modern converged networks by automating many everyday tasks. AMF has powerful features that allow an entire network to be easily managed as a single virtual device.
Vista Manager™ EX is an intuitive graphical tool for monitoring and managing AMF wired and Autonomous Wave Control (AWC) wireless devices. Full visibility and powerful features enable proactive management of large networks.
Device network and security management
The Device GUI on the x950 Series enables graphical monitoring of key switch features to support easy management.
Integrated into the Device GUI Vista Manager mini supports visibility and management of AMF wired and AWC wireless network devices making it ideal as a one-stop solution for small to medium-sized networks.
AWC is an intelligent easy to use Wireless LAN controller that automatically maintains optimal wireless coverage. Vista Manager mini includes AWC floor and heat maps showing wireless coverage. It also supports AWC Channel Blanket hybrid operation providing maximum performance and seamless roaming as well as AWC Smart Connect for simplified deployment and a resilient Wi-Fi network solution using wireless uplink connectivity.
The AMF-Security mini controller with management integrated into the Device GUI ensures protection against internal LAN malware threats automatically stopping the spread of infection.
|
| Media Type Supported | Optical Fiber |
| Media Type Supported | Twisted Pair |
| Network Technology | 10GBase-T |
| Network Technology | 100GBase-X |
| Networking standards | IEEE 802.2 |
| Networking standards | IEEE 802.3bz |
| Networking standards | IEEE 802.3ba |
| Networking standards | IEEE 802.3ab |
| Networking standards | IEEE 802.3 |
| Networking standards | IEEE 802.3bj |
| Networking standards | IEEE 802.3an |
| Networking standards | IEEE 802.3z |
| Networking standards | IEEE 802.3az |
| Networking standards | IEEE 802.3ae |
| Networking standards | IEEE 802.3x |
| Networking standards | IEEE 802.1ae |
| Port/Expansion Slot Details | 4 x 100 Gigabit Ethernet Expansion Slot |
| Port/Expansion Slot Details | 48 x 10 Gigabit Ethernet Network |
| Power consumption | 300 W |
| Power source | Power Supply |
| Product Model | AT-x950-52XTQm |
| Product Name | AT-x950-52XTQm Layer 3 Switch |
| Product Series | x950 |
| Product Type | Layer 3 Switch |
| UPC Alternates | 767035217888 767035225517 |
| Weight (Approximate) | 16.98 lb |
| Width | 17.4" |
