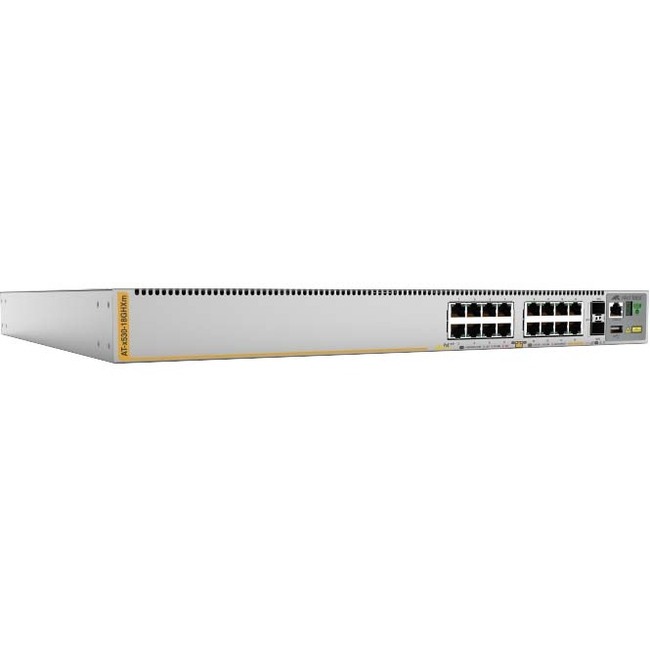

Allied Telesis x530-18GHXm Layer 3 Switch - 16 Ports - Manageable - 5 Gigabit Ethernet, 10 Gigabit Ethernet - 10GBase-X, 5GBase-T - 3 Layer Supported - Modular - 130 W Power Consumption - 1000 W PoE Budget - Twisted Pair, Optical Fiber - PoE Ports - Rack-mountable
16 Ports - Manageable - 5 Gigabit Ethernet, 10 Gigabit Ethernet - 10GBase-X, 5GBase-T - 3 Layer Supported - Modular - 130 W Power Consumption - 1000 W PoE Budget - Twisted Pair, Optical Fiber - PoE Ports - Rack-mountable
| Number of Power Supplies Installed | 2 |
| PoE Budget | 1000 W |
| Total Number of Network Ports | 16 |
| Brand Name | Allied Telesis |
| Depth | 16.6" |
| Environmental Certification | China RoHS |
| Environmental Certification | EU RoHS |
| Ethernet Technology | 5 Gigabit Ethernet |
| Ethernet Technology | 10 Gigabit Ethernet |
| Expansion Slot Type | SFP+ |
| Form factor | Rack-mountable |
| Height | 1.7" |
| Layer Supported | 3 |
| Manageable | Yes |
| Manufacturer | Allied Telesis Inc |
| Manufacturer Part Number | AT-X530-18GHXM-10 |
| Manufacturer Website Address | http://www.alliedtelesis.com |
| Marketing Information | Allied Telesis x530 Series switches are a high-performing and feature-rich choice for today's networks featuring 24 Gigabit ports and 4 x 10 Gigabit uplinks. Combined with the ability to stack multiple units the x530 Series provides a versatile solution for enterprise applications.
Powerful network management
Allied Telesis Autonomous Management Framework™ (AMF) automates many everyday tasks including configuration management easing the workload of modern networks. The entire network can be managed as a single virtual device with powerful centralized features. Growing the network can be accomplished with plug-and-play simplicity and network node recovery is fully zero-touch. AMF secure mode increases network security with management traffic encryption authorization and monitoring. AMF Guestnode allows third party devices such as IP phones and security cameras to be part of an AMF network. Network resiliency Today's converging online services means there is increasing demand for highly-available networks with minimal downtime. VCStack™ in conjunction with link aggregation provides a network with no single point of failure and application resiliency. x530 Series switches can form a VCStack of up to eight units for enhanced resiliency and simplified device management. Long Distance Stacking (VCStack LD) which enables stacks to be created over long distance fiber links makes the x530 Series the perfect choice for distributed environments too. Allied Telesis Ethernet Protection Switched Ring (EPSRing™) and the standards-based G.8032 Ethernet Ring Protection ensure that distributed network segments have high-speed resilient access to online resources and applications. Reliable The x530 Series was designed with reliability in mind and guarantees continual delivery of essential services. With dual built-in power supplies and near-hitless online stack reconfiguration maintenance may be performed without affecting network uptime. Secure A secure network environment is guaranteed. The x530 Series offers powerful control over network traffic types secure management options loop guard to protect against cabling mistakes and tri-authentication for comprehensive access control. Future proof The x530 Series ensures a future-proof network with superior flexibility and the ability to stack multiple units. All x530 Series models feature 10 Gigabit uplink ports and a comprehensive IPv6 feature set to ensure they are ready for future network traffic demands. |
| Media Type Supported | Optical Fiber |
| Media Type Supported | Twisted Pair |
| Network Technology | 10GBase-X |
| Network Technology | 5GBase-T |
| Networking standards | IEEE 802.3bz |
| Networking standards | IEEE 802.1v |
| Networking standards | IEEE 802.1p |
| Networking standards | IEEE 802.1AX |
| Networking standards | IEEE 802.3az |
| Networking standards | IEEE 802.3u |
| Networking standards | IEEE 802.3z |
| Networking standards | IEEE 802.3ad |
| Networking standards | IEEE 802.3af |
| Networking standards | IEEE 802.3x |
| Networking standards | IEEE 802.3 |
| Networking standards | IEEE 802.1x |
| Networking standards | IEEE 802.1ag |
| Networking standards | IEEE 802.1s |
| Networking standards | IEEE 802.1ab |
| Networking standards | IEEE 802.3ab |
| Networking standards | IEEE 802.2 |
| Networking standards | IEEE 802.1D |
| Networking standards | IEEE 802.3at |
| Networking standards | IEEE 802.3bt |
| Networking standards | IEEE 802.1w |
| Networking standards | IEEE 802.1Q |
| Package Contents | - x530-18GHXm Layer 3 Switch
- 19 inch Rack-mount Brackets
|
| Port/Expansion Slot Details | 16 x 5 Gigabit Ethernet PoE++ |
| Port/Expansion Slot Details | 2 x Stack |
| Port/Expansion Slot Details | 2 x 10 Gigabit Ethernet Expansion Slot |
| Power consumption | 130 W |
| Power source | Power Supply |
| Product Model | x530-18GHXm |
| Product Name | x530-18GHXm Layer 3 Switch |
| Product Series | x530 |
| Product Type | Layer 3 Switch |
| UPC Alternates | 767035222301 |
| Weight (Approximate) | 14.77 lb |
| Width | 17.4" |
