| Cable Manager Type | Poke Thru Device |
| Product Material | Aluminum |
| Brand Name | Middle Atlantic |
| Manufacturer | Legrand Group |
| Manufacturer Part Number | 6ATC2PBK |
| Manufacturer Website Address | http://www.legrand.us |
| Marketing Information | For carpet tile wood and laminate concrete floor coverings. For use in 6" (152mm) diameter opening. Devices are recessed 3 1/4" (83mm) below floor surface. Die-cast aluminum cover assembly is available in the following powder coated finishes: (BK) black (GY) gray (NK) nickel (BS) brass (BZ) bronze and (AL) aluminum. INCLUDED: For Side Compartments: Two (2) proprietary 20A Duplex Receptacles installed. For Center Compartment: One (1) 6ACT8A Mounting Plate One (1) 6TRAC Mounting Plate One (1) 6SER Mounting Plate. For Bottom Feed Compartment: One (1) 5BLH 1/2-Gang Blank Housing (Tunneling extends from the 5BLH to 575CHA so that power cables from the 20A duplex receptacle mounted on the left side of the poke-thru device are run into the junction box attached to the 575CHA.) One (1) 1PTHA 1-Gang Pass-Through Housing Assembly One (1) 575CHA 1/2-Gang 3/4" Conduit Housing Assembly (also includes junction box attached to the 3/4" conduit). NOTE: UL Fire Classified for up to 2-hour rated floors. Receptacles can be wired as a standard or isolated ground device.
|
| Package Contents |
|
| Product color | Black Powder Coat |
| Product Line | Evolution |

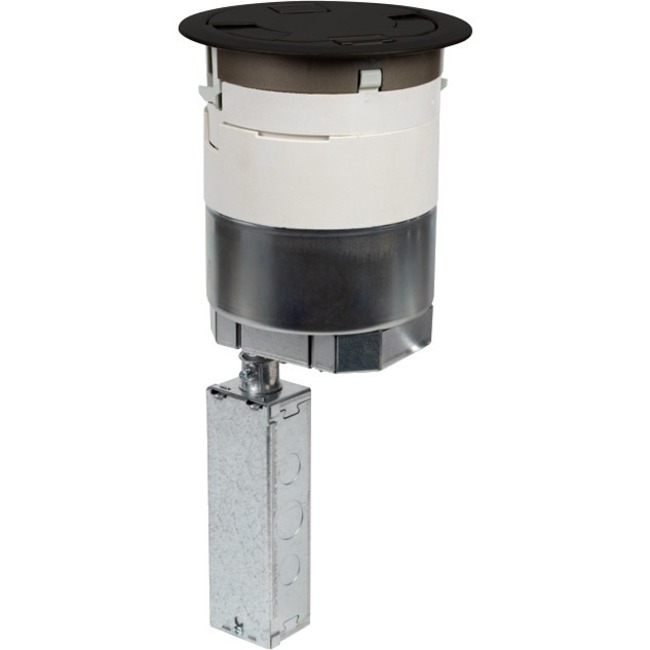

| Product Name | Evolution 6AT Poke Thru Device |
| Product Series | 6AT |
| Product Type | Cable Organizer |
| UPC Alternates | 786564088776 |
