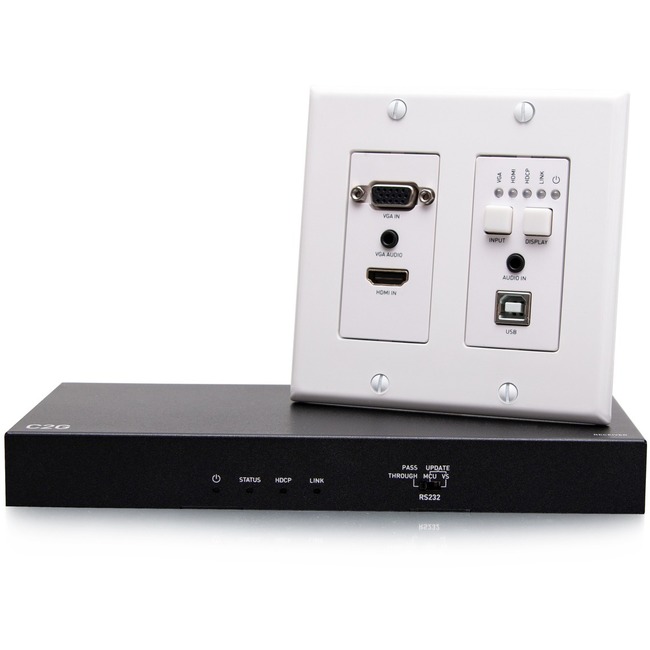

C2G Video Extender Transmitter/Receiver
New
C2G Video Extender Transmitter/Receiver - 2 Input Device - 1 Output Device - 230 ft Range - 2 x Network (RJ-45) - 7 x USB - 1 x HDMI In - 1 x VGA In - 1 x HDMI Out - 1080p - 4K - Twisted Pair - Category 7 - Wall Plate
| $570.99 Retail $1,183.99 |
- Extend 4K at 60Hz (4:2:0) up to 130ft and 1080p at 60Hz up to 230ft with Cat 6a cable
- Extend 4K at 60Hz (4:2:0) up to 115ft and 1080p at 60Hz up to 200ft with Cat 5e/6 cable
- HDCP 2.2 compliant, to create a secure connection between the source and display
- HDBaseT Chipset VS210, for simpler HDBaseT installations
- The Transmitter supports automatic switching, following the last-in-first-out rule
- One-way analog audio pass through from wall-plate transmitter to receiver
- Supports USB 2.0 pass through over HDBT up to 230ft, connecting up to 4 USB devices to the receiver
- Supports CEC switch command sent by wall-plate
- One-way Power over HDBaseT (PoH), so that the wall plate can be powered by receiver
- The transmitter supports firmware upgrade and device control via the Micro USB port
You may be also interested
$193.95
$248.99
$119.96
$138.00
$588.64
$928.52
$230.53
$279.99
$90.42
$150.80
$44.76
$59.99
$382.79
$573.15
$1,192.05
$4,401.00
$177.06
$229.00
$110.85
$146.99
$272.19
$394.00
$294.93
$428.40
$1,044.23
$1,890.72
$115.58
$149.00
$32.48
$79.00
$18.91
$34.00
$579.47
$717.48
$94.90
$113.00
$38.96
$6.83
$14.95
C2G Video Extender Transmitter/Receiver - 2 Input Device - 1 Output Device - 230 ft Range - 2 x Network (RJ-45) - 7 x USB - 1 x HDMI In - 1 x VGA In - 1 x HDMI Out - 1080p - 4K - Twisted Pair - Category 7 - Wall Plate
2 Input Device - 1 Output Device - 230 ft Range - 2 x Network (RJ-45) - 7 x USB - 1 x HDMI In - 1 x VGA In - 1 x HDMI Out - 1080p - 4K - Twisted Pair - Category 7 - Wall Plate
2 Input Device - 1 Output Device - 230 ft Range - 2 x Network (RJ-45) - 7 x USB - 1 x HDMI In - 1 x VGA In - 1 x HDMI Out - 1080p - 4K - Twisted Pair - Category 7 - Wall Plate
Product Specifications
| Receiver Depth | 3.55" |
| Receiver Height | 0.98" |
| Receiver Weight (Approximate) | 1.01 lb |
| Receiver Width | 8.27" |
| Transmitter Depth | 4.16" |
| Transmitter Height | 1.51" |
| Transmitter Weight (Approximate) | 10.58 oz |
| Transmitter Width | 3.50" |
| Connectivity technology | Wired |
| Country of origin | China |
| Environmental Certification | WEEE |
| Environmentally Friendly | Yes |
| Form factor | Wall Plate |
| Graphics Modes | 4K |
| Manufacturer | C2G |
| Manufacturer Part Number | C2G31012 |
| Manufacturer Website Address | http://www.cablestogo.com |
| Marketing Information | The HDMI HDBaseT + VGA 3.5mm and USB-B to A over Cat Extender Dual Gang Wall Plate Transmitter to Box Receiver - 4K 60Hz allows a 4K HDMI source to be extended up to 130ft to a 4K display using a single Cat6a Ethernet cable. This is an ideal solution where USB must be extended alongside HDMI video and audio to interactive whiteboards and displays in conference rooms classrooms lecture halls and many other installation needs that are far beyond the length limitations of standard HDMI cabling. The transmitter extends HDMI VGA Stereo Audio and high speed USB 2.0 signals over a single Cat5e Cat6 or Cat6a network patch cable. Extend 4K HDMI up to 115 feet and 1080p VGA up to 230 feet using a Cat5e or Cat6 cable. For longer 4K distances extend 4K HDMI up to 130 feet using a Cat6a cable. This HDMI HDBaseT Extender is HDCP 2.2 compliant making sure that the connection between the source and display is secure. Automatic switching is supported by the transmitter connecting to the last active source. One-way analog audio pass through is supported from the transmitter to the receiver. High-speed USB 2.0 pass through is supported over HDBaseT up to 230ft for KVM control of devices such as USB cameras keyboards mice etc. With PoH support the receiver can send power to the wall plate transmitter so no additional power adapter is required allowing for greater flexibility in installations. Support this HDBaseT system that is already deployed in the field by upgrading firmware through the Micro-USB port on front panel of the wall plate transmitter and upgrade the firmware through the RS232 port on rear panel of the receiver. |
| Maximum Operating Distance | 230 ft |
| Media Type Supported | Twisted Pair |
| Number of HDMI Inputs | 1 |
| Number of Network (RJ-45) Ports | 2 |
| Number of USB Ports | 7 |
| Package Contents |
|
| Product color | Black |
| Product Type | Video Extender Transmitter/Receiver |
| Supported video modes | 1080p |
| Twisted Pair Cable Standard | Category 7 |
| UPC Alternates | 757120310129 |
Material Safety Data Sheet
A Material Safety Data Sheet (MSDS) is a document that contains information on the potential hazards (health, fire, reactivity and environmental) and how to work safely with the chemical product.
Sorry this product does not have any reviews at this time.
