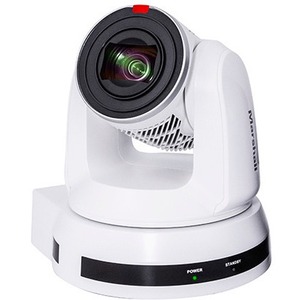

Marshall CV630-IPW 8 Megapixel 4K Network Camera - Color - Infrared - H.265 (HEVC), H.264, H.265 - 3840 x 2160 - 4.60 mm- 135 mm Varifocal Lens - 30x Optical - CMOS - HDMI - Desk Mount, Wall Mount, Ceiling Mount
Infrared - H.265 (HEVC), H.264, H.265 - 3840 x 2160 - 4.60 mm- 135 mm Varifocal Lens - 30x Optical - CMOS - HDMI - Desk Mount, Wall Mount, Ceiling Mount
| Analog Video Signal Format | 3G/HD-SDI |
| Field of View | 70° |
| Maximum Aperture | f/3.5 |
| Minimum Aperture | f/1.6 |
| Minimum Focal Length | 4.60 mm |
| Night Vision Type | Infrared |
| Brand Name | Marshall |
| Color Supported | Color |
| Connectivity technology | Wired |
| Effective Camera Resolution | 8 Megapixel |
| Features | PTZ |
| HDMI | Yes |
| Height | 10.6" |
| Image Sensor Type | CMOS |
| Input voltage | 12 V DC |
| Length | 12.6" |
| Lens Type | Varifocal |
| Manufacturer | Marshall Electronics Inc |
| Manufacturer Part Number | CV630-IPW |
| Manufacturer Website Address | http://www.mars-cam.com |
| Marketing Information | The Marshall CV630-IP PTZ Camera captures crisp UHD video combined with smooth PTZ camera positioning and 30X optical zoom for a versatile networked video solution.
High Performance Video Output
At its core the CV630-IP packs a powerful 8-megapixel 1/2.5" sensor capturing up to Ultra-HD 3840x2160p video with support for HD 1920x1080p and 1280x720p. Versatile Camera Positioning
The CV630-IP is equipped with synchronous pan tilt and zoom motors for smooth and silent camera movements during operation. A 30X optical zoom block provides flexibility from 4.6mm to 135mm with a nearly 70-degree angle-of-view at its widest. Simultaneous Networked and Streaming Outputs
Multiple simultaneous video streams are available over HDMI 3G-SDI and triple-stream IP (H.265/H.264) with stereo audio input embeddable on all available outputs. PoE+ (power-over-Ethernet) provides an economical and easy solution for integrators during installation. Flexible Control Options
The CV630-IP offers easy control over iris shutter white balance focus pan/tilt speeds and more controllable by IR remote networked video management software (VMS) or RS-232/ RS-422 with support for Visca Visca over IP Pelco and Onvif platforms.Additionally the CV630-IP is compatible with Marshall's VS-PTC-IP PTZ Camera Controller providing intuitive adjustment of pan/tilt/zoom pan/tilt speeds white balance and more with with one button dials and rocker control. |
| Maximum Focal Length | 135 mm |
| Maximum Video Resolution | 3840 x 2160 |
| Mount Type | Wall Mount |
| Mount Type | Desk Mount |
| Mount Type | Ceiling Mount |
| Optical zoom | 30x |
| Product color | White |
| Product Name | 30x UHD30 IP (HEVC) PTZ Camera |
| Product Type | Network Camera |
| Recording Formats | 4K |
| Video Formats | H.264 |
| Video Formats | H.265 |
| Video Formats | H.265 (HEVC) |
| Video Signal Format | NTSC |
| Video Signal Format | PAL |
| Weight (Approximate) | 9.06 lb |
| Width | 10.8" |
