| Maximum Output Current | 625 mA |
| Maximum Output Voltage | 56 V DC |
| Brand Name | Tycon Power |
| Compatibility |
|
| Height | 1.4" |
| Input voltage | 24 V DC |
| Length | 3.3" |
| Limited Warranty | 1 Year |
| Manufacturer | Tycon Power Systems |
| Manufacturer Part Number | TP-POE-2456D |
| Manufacturer Website Address | http://www.tyconpower.com |

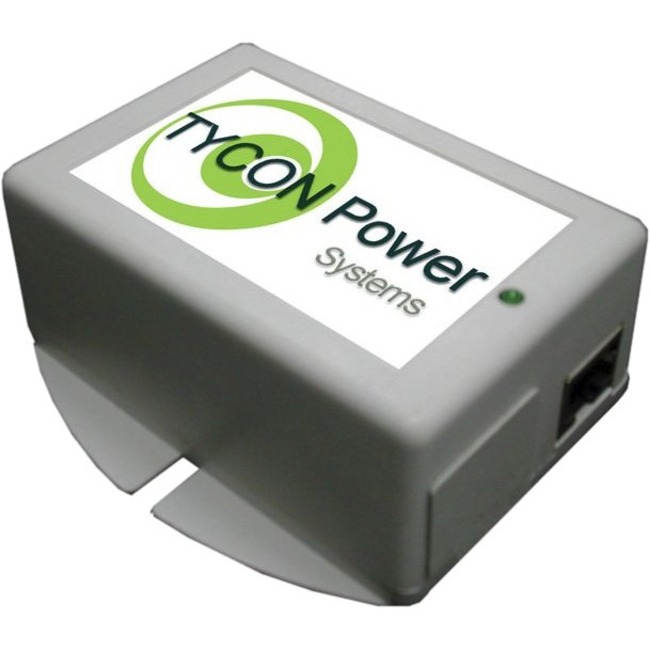

| Marketing Information | The TP-POE-2456D is a unique Power Over Ethernet adapter which converts a 24VDC passive POE input to an 802.3af/at 56VDC POE output. The only connections required are CAT5/6 cables. The IEEE 802.3af/at compliant POE output is capable of up to 35W power output. The POE input is 22V to 36VDC passive POE so the TP-POE-2456D is perfect for running IP POE Cameras or other POE devices from passive POE switches like the Tycon TP-SW5G-NC/TP-SW8-NC or Ubiquiti TOUGH Switch™. The units supply power to the remote device on the unused Ethernet pins 45(V+) and 78(V-). The Ethernet spec supports distances up to 100m (328 feet). |
| Maximum Output Power | 35 W |
| Product Name | Passive POE to 802.3af /at Converter |
| Product Type | PoE Injector |
| Protection Type | Short Circuit |
| Protection Type | Overload Protection |
| Protection Type | Over Voltage |
| UPC Alternates | 794348681051 |
| Weight (Approximate) | 5.29 oz |
| Width | 3" |
