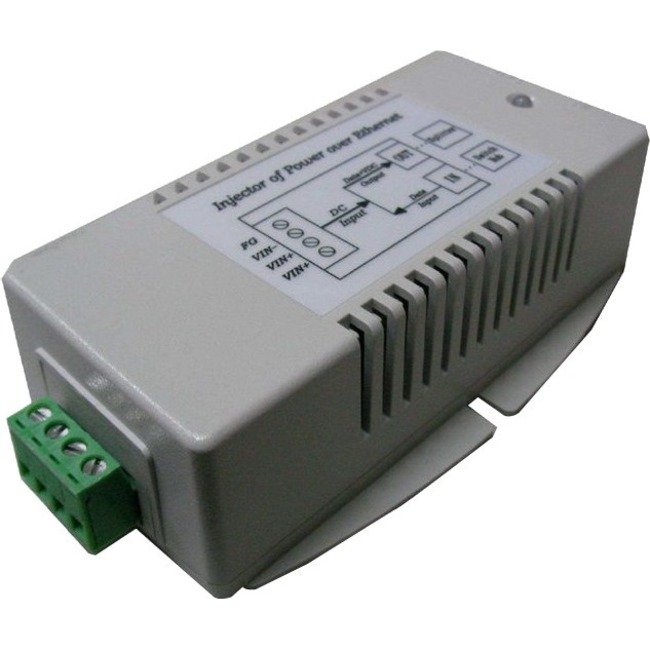

Tycon Power Gigabit +/- 36-72VDC Input, 56V 35W 802.3at POE Output - 56 V DC, 625 mA Output - 1 x 10/100/1000Base-T Input Port(s) - 1 x 10/100/1000Base-T Output Port(s) - 35 W
56 V DC, 625 mA Output - 1 x 10/100/1000Base-T Input Port(s) - 1 x 10/100/1000Base-T Output Port(s) - 35 W
| Input Ports | 1 x 10/100/1000Base-T |
| Input Ports | 1 x 10/100/1000Base-T |
| Maximum Output Current | 625 mA |
| Maximum Output Current | 625 mA |
| Maximum Output Voltage | 56 V DC |
| Maximum Output Voltage | 56 V DC |
| Additional Information | Input Voltage: 36-72VDC |
| Additional Information | Input Voltage: 36-72VDC |
| Brand Name | Tycon Power |
| Brand Name | Tycon Power |
| Certifications & Standards | - IEEE 802.3at
- IEEE 802.3af
- FCC Class B
- EN55022 Class B
- UL1950
- CSA 22.2
- TUV EN60950
|
| Certifications & Standards | - IEEE 802.3at
- IEEE 802.3af
- FCC Class B
- EN55022 Class B
- UL1950
- CSA 22.2
- TUV EN60950
|
| Compatibility | - Vehicle Applications
- Wireless Access Points
- Client Devices
- IP Phones
- Security Camera Systems
|
| Compatibility | - Vehicle Applications
- Wireless Access Points
- Client Devices
- IP Phones
- Security Camera Systems
|
| Height | 1.5" |
| Height | 1.5" |
| Length | 4.9" |
| Length | 4.9" |
| Limited Warranty | 1 Year |
| Limited Warranty | 1 Year |
| Manufacturer | Tycon Power Systems |
| Manufacturer | Tycon Power Systems |
| Manufacturer Part Number | TP-DCDC-4848GD-HP |
| Manufacturer Part Number | TP-DCDC-4848GD-HP |
| Manufacturer Website Address | http://www.tyconpower.com |
| Manufacturer Website Address | http://www.tyconpower.com |
| Maximum Output Power | 35 W |
| Maximum Output Power | 35 W |
| Product Name | Gigabit +/- 36-72VDC Input 56V 35W 802.3at POE Output |
| Product Name | Gigabit +/- 36-72VDC Input 56V 35W 802.3at POE Output |
| Product Series | TP-DCDC |
| Product Series | TP-DCDC |
| Product Type | PoE Injector |
| Product Type | PoE Injector |
| UPC Alternates | 633090397134 |
| UPC Alternates | 633090397134 |
| Weight (Approximate) | 10.60 oz |
| Weight (Approximate) | 10.60 oz |
| Width | 3" |
| Width | 3" |
