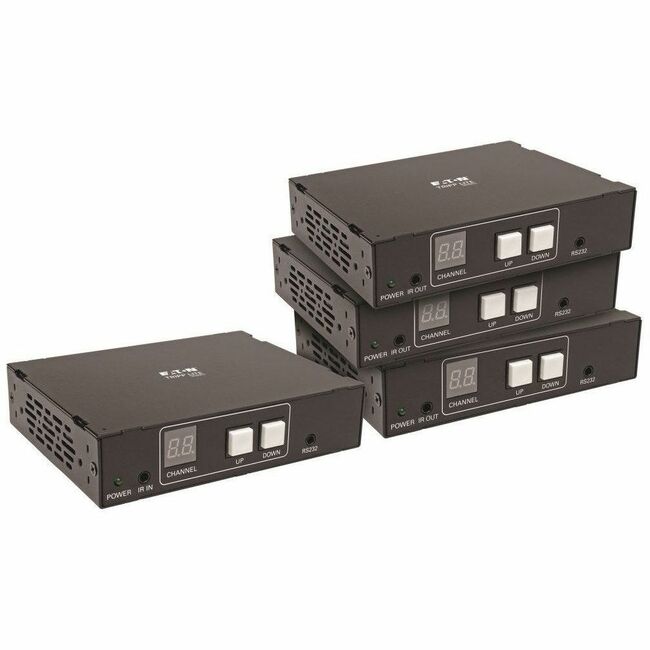

Tripp Lite DVI / HDMI Over Cat5/6 Switch Extender Kit 1080p @ 60Hz IR TAA - 3 Input Device - 1 Output Device - 656 ft Range - 4 x Network (RJ-45) - 3 x HDMI In - 4 x HDMI Out - Full HD - 1920 x 1080 - Twisted Pair - Category 6 - TAA Compliant
3 Input Device - 1 Output Device - 656 ft Range - 4 x Network (RJ-45) - 3 x HDMI In - 4 x HDMI Out - Full HD - 1920 x 1080 - Twisted Pair - Category 6 - TAA Compliant
| Number of Output Devices Supported | 1 |
| Number of Output Devices Supported | 1 |
| Number of Output Devices Supported | 1 |
| Transmitter Depth | 5.04" |
| Transmitter Depth | 5.04" |
| Transmitter Depth | 5.04" |
| Transmitter Height | 1.17" |
| Transmitter Height | 1.17" |
| Transmitter Height | 1.17" |
| Transmitter Weight (Approximate) | 3.31 lb |
| Transmitter Weight (Approximate) | 3.31 lb |
| Transmitter Weight (Approximate) | 3.31 lb |
| Transmitter Width | 3.94" |
| Transmitter Width | 3.94" |
| Transmitter Width | 3.94" |
| Brand Name | Tripp Lite |
| Brand Name | Tripp Lite |
| Brand Name | Tripp Lite |
| Connectivity technology | Wired |
| Connectivity technology | Wired |
| Connectivity technology | Wired |
| Country of origin | Taiwan |
| Country of origin | Taiwan |
| Country of origin | Taiwan |
| Environmental Certification | RoHS |
| Environmental Certification | RoHS |
| Environmental Certification | RoHS |
| Environmental Certification | REACH |
| Environmental Certification | REACH |
| Environmental Certification | REACH |
| Environmentally Friendly | Yes |
| Environmentally Friendly | Yes |
| Environmentally Friendly | Yes |
| Graphics Modes | Full HD |
| Graphics Modes | Full HD |
| Graphics Modes | Full HD |
| Limited Warranty | 1 Year |
| Limited Warranty | 1 Year |
| Limited Warranty | 1 Year |
| Manufacturer | Tripp Lite by Eaton |
| Manufacturer | Tripp Lite by Eaton |
| Manufacturer | Tripp Lite by Eaton |
| Manufacturer Part Number | B160-103-HDSI |
| Manufacturer Part Number | B160-103-HDSI |
| Manufacturer Part Number | B160-103-HDSI |
| Manufacturer Website Address | http://www.tripplite.com |
| Manufacturer Website Address | http://www.tripplite.com |
| Manufacturer Website Address | http://www.tripplite.com |
| Marketing Information | DVI/HDMI Switch Kit for Digital Signage or Extending Video in Schools or Trade Show Booths
This switch/extender kit comes with three Tripp Lite B160-001-HDSI transmitters and one B160-100-HDSI receiver. It extends and distributes DVI or HDMI audio/video RS-232 serial and IR (infrared) remote signals from three source devices such as Blu-ray players and media servers to an HDMI display via Cat5e/6 cabling. The maximum distance between a transmitter and receiver is 328 feet. However by connecting a dedicated network switch (sold separately) in between you can extend the audio/video as far as 656 feet (200 meters). Scale Up to a Multi-In Multi-Out Installation to Take You Beyond 656 Feet
You can create an installation featuring multiple sources and displays by connecting a dedicated managed Ethernet network switch with Internet Group Management Protocol (IGMP) such as Tripp Lite's NSS-G16D2. By adding multiple managed switches you can create a multi-in multi-out installation with as many as 64 transmitters and 255 receivers. The IGMP-enabled switch will let you manage all connections for centralized control over which sources show on which displays. Note: Unmanaged switch installations are limited to two transmitter units. The number of receivers is limited to the number of ports remaining on the unmanaged switch. This transmitter/receiver extender kit is designed for use with a dedicated network switch. Connecting a switch used with other networking equipment will result in degraded or non-functional performance. Transmits Crystal-Clear 1080p Video with Stereo Audio
The B160-103-HDSI supports video resolutions up to 1920 x 1080 (1080p) at 60 Hz with 24-bit True Color in a managed switch installation. It extends IR signals that control a DVI or HDMI source to the remote display as well as RS-232 signals at serial baud rates up to 57600 bps. This allows you to operate the source devices' remote controls (play rewind pause etc.) while standing near the receiver located up to 656 feet away. Adapter cables are included for converting DVI signals to HDMI and vice versa. Plug-and-Play Operation for Quick Setup and Immediate Use
The included transmitter and receiver units work right out of the box with no software required. Mounting hardware is included for installing the units on walls poles or 19-inch racks. Cat6 patch cable (such as Tripp Lite's N202-Series) can be used to connect the transmitters to a receiver or network switch. Connect an additional display to a transmitter's local output with HDMI cable (such as Tripp Lite's P568- or P569-Series) to monitor the image being transmitted to a remote display. TAA-Compliant for GSA Schedule Purchases
The B160-103-HDSI is compliant with the Federal Trade Agreements Act (TAA) which makes it eligible for GSA (General Services Administration) Schedule and other federal procurement contracts. Typical Applications - Keep your video sources in a secure location with displays located elsewhere for viewing by the intended audience
- Create an easily updatable video board communicating dynamic information such as a restaurant menu or a theater schedule
- Display arrivals departures and up-to-the-minute information in an airport or train station
- Duplicate audio/video content across multiple displays show different content on multiple screens or create an impressive video wall made up of many monitors (multiple transmitters and receivers required)
System Requirements - Source devices with DVI or HDMI output (media server Blu-ray player)
|
| Marketing Information | DVI/HDMI Switch Kit for Digital Signage or Extending Video in Schools or Trade Show Booths
This switch/extender kit comes with three Tripp Lite B160-001-HDSI transmitters and one B160-100-HDSI receiver. It extends and distributes DVI or HDMI audio/video RS-232 serial and IR (infrared) remote signals from three source devices such as Blu-ray players and media servers to an HDMI display via Cat5e/6 cabling. The maximum distance between a transmitter and receiver is 328 feet. However by connecting a dedicated network switch (sold separately) in between you can extend the audio/video as far as 656 feet (200 meters). Scale Up to a Multi-In Multi-Out Installation to Take You Beyond 656 Feet
You can create an installation featuring multiple sources and displays by connecting a dedicated managed Ethernet network switch with Internet Group Management Protocol (IGMP) such as Tripp Lite's NSS-G16D2. By adding multiple managed switches you can create a multi-in multi-out installation with as many as 64 transmitters and 255 receivers. The IGMP-enabled switch will let you manage all connections for centralized control over which sources show on which displays. Note: Unmanaged switch installations are limited to two transmitter units. The number of receivers is limited to the number of ports remaining on the unmanaged switch. This transmitter/receiver extender kit is designed for use with a dedicated network switch. Connecting a switch used with other networking equipment will result in degraded or non-functional performance. Transmits Crystal-Clear 1080p Video with Stereo Audio
The B160-103-HDSI supports video resolutions up to 1920 x 1080 (1080p) at 60 Hz with 24-bit True Color in a managed switch installation. It extends IR signals that control a DVI or HDMI source to the remote display as well as RS-232 signals at serial baud rates up to 57600 bps. This allows you to operate the source devices' remote controls (play rewind pause etc.) while standing near the receiver located up to 656 feet away. Adapter cables are included for converting DVI signals to HDMI and vice versa. Plug-and-Play Operation for Quick Setup and Immediate Use
The included transmitter and receiver units work right out of the box with no software required. Mounting hardware is included for installing the units on walls poles or 19-inch racks. Cat6 patch cable (such as Tripp Lite's N202-Series) can be used to connect the transmitters to a receiver or network switch. Connect an additional display to a transmitter's local output with HDMI cable (such as Tripp Lite's P568- or P569-Series) to monitor the image being transmitted to a remote display. TAA-Compliant for GSA Schedule Purchases
The B160-103-HDSI is compliant with the Federal Trade Agreements Act (TAA) which makes it eligible for GSA (General Services Administration) Schedule and other federal procurement contracts. Typical Applications - Keep your video sources in a secure location with displays located elsewhere for viewing by the intended audience
- Create an easily updatable video board communicating dynamic information such as a restaurant menu or a theater schedule
- Display arrivals departures and up-to-the-minute information in an airport or train station
- Duplicate audio/video content across multiple displays show different content on multiple screens or create an impressive video wall made up of many monitors (multiple transmitters and receivers required)
System Requirements - Source devices with DVI or HDMI output (media server Blu-ray player)
|
| Marketing Information | DVI/HDMI Switch Kit for Digital Signage or Extending Video in Schools or Trade Show Booths
This switch/extender kit comes with three Tripp Lite B160-001-HDSI transmitters and one B160-100-HDSI receiver. It extends and distributes DVI or HDMI audio/video RS-232 serial and IR (infrared) remote signals from three source devices such as Blu-ray players and media servers to an HDMI display via Cat5e/6 cabling. The maximum distance between a transmitter and receiver is 328 feet. However by connecting a dedicated network switch (sold separately) in between you can extend the audio/video as far as 656 feet (200 meters). Scale Up to a Multi-In Multi-Out Installation to Take You Beyond 656 Feet
You can create an installation featuring multiple sources and displays by connecting a dedicated managed Ethernet network switch with Internet Group Management Protocol (IGMP) such as Tripp Lite's NSS-G16D2. By adding multiple managed switches you can create a multi-in multi-out installation with as many as 64 transmitters and 255 receivers. The IGMP-enabled switch will let you manage all connections for centralized control over which sources show on which displays. Note: Unmanaged switch installations are limited to two transmitter units. The number of receivers is limited to the number of ports remaining on the unmanaged switch. This transmitter/receiver extender kit is designed for use with a dedicated network switch. Connecting a switch used with other networking equipment will result in degraded or non-functional performance. Transmits Crystal-Clear 1080p Video with Stereo Audio
The B160-103-HDSI supports video resolutions up to 1920 x 1080 (1080p) at 60 Hz with 24-bit True Color in a managed switch installation. It extends IR signals that control a DVI or HDMI source to the remote display as well as RS-232 signals at serial baud rates up to 57600 bps. This allows you to operate the source devices' remote controls (play rewind pause etc.) while standing near the receiver located up to 656 feet away. Adapter cables are included for converting DVI signals to HDMI and vice versa. Plug-and-Play Operation for Quick Setup and Immediate Use
The included transmitter and receiver units work right out of the box with no software required. Mounting hardware is included for installing the units on walls poles or 19-inch racks. Cat6 patch cable (such as Tripp Lite's N202-Series) can be used to connect the transmitters to a receiver or network switch. Connect an additional display to a transmitter's local output with HDMI cable (such as Tripp Lite's P568- or P569-Series) to monitor the image being transmitted to a remote display. TAA-Compliant for GSA Schedule Purchases
The B160-103-HDSI is compliant with the Federal Trade Agreements Act (TAA) which makes it eligible for GSA (General Services Administration) Schedule and other federal procurement contracts. Typical Applications - Keep your video sources in a secure location with displays located elsewhere for viewing by the intended audience
- Create an easily updatable video board communicating dynamic information such as a restaurant menu or a theater schedule
- Display arrivals departures and up-to-the-minute information in an airport or train station
- Duplicate audio/video content across multiple displays show different content on multiple screens or create an impressive video wall made up of many monitors (multiple transmitters and receivers required)
System Requirements - Source devices with DVI or HDMI output (media server Blu-ray player)
|
| Maximum Operating Distance | 656 ft |
| Maximum Operating Distance | 656 ft |
| Maximum Operating Distance | 656 ft |
| Maximum Video Resolution | 1920 x 1080 |
| Maximum Video Resolution | 1920 x 1080 |
| Maximum Video Resolution | 1920 x 1080 |
| Media Type Supported | Twisted Pair |
| Media Type Supported | Twisted Pair |
| Media Type Supported | Twisted Pair |
| Number of HDMI Inputs | 3 |
| Number of HDMI Inputs | 3 |
| Number of HDMI Inputs | 3 |
| Number of Network (RJ-45) Ports | 4 |
| Number of Network (RJ-45) Ports | 4 |
| Number of Network (RJ-45) Ports | 4 |
| Package Contents | - 3 x B160-001-HDSI Transmitter Units
- B160-100-HDSI Receiver Unit
- 3 x IR-Out Cables
- IR-In Cable
- 4 x HDMI to DVI Adapter Cables
- 4 x 3.5 mm to DB9 Adapter Cables (M/F)
- 4 x External Power Supplies with 4.5 ft. cord (Input: 100-240V 50/60 Hz 1A; Output: 5V 2A)
- 16 x International Plug Adapters (North America Europe U.K. Australia)
- 4 x Sets of Mounting Hardware
- 4 x Owner's Manuals
|
| Package Contents | - 3 x B160-001-HDSI Transmitter Units
- B160-100-HDSI Receiver Unit
- 3 x IR-Out Cables
- IR-In Cable
- 4 x HDMI to DVI Adapter Cables
- 4 x 3.5 mm to DB9 Adapter Cables (M/F)
- 4 x External Power Supplies with 4.5 ft. cord (Input: 100-240V 50/60 Hz 1A; Output: 5V 2A)
- 16 x International Plug Adapters (North America Europe U.K. Australia)
- 4 x Sets of Mounting Hardware
- 4 x Owner's Manuals
|
| Package Contents | - 3 x B160-001-HDSI Transmitter Units
- B160-100-HDSI Receiver Unit
- 3 x IR-Out Cables
- IR-In Cable
- 4 x HDMI to DVI Adapter Cables
- 4 x 3.5 mm to DB9 Adapter Cables (M/F)
- 4 x External Power Supplies with 4.5 ft. cord (Input: 100-240V 50/60 Hz 1A; Output: 5V 2A)
- 16 x International Plug Adapters (North America Europe U.K. Australia)
- 4 x Sets of Mounting Hardware
- 4 x Owner's Manuals
|
| Product color | Black |
| Product color | Black |
| Product color | Black |
| Product Name | B160-103-HDSI Video Extender Transmitter/Receiver |
| Product Name | B160-103-HDSI Video Extender Transmitter/Receiver |
| Product Name | B160-103-HDSI Video Extender Transmitter/Receiver |
| Product Type | Video Extender Transmitter/Receiver |
| Product Type | Video Extender Transmitter/Receiver |
| Product Type | Video Extender Transmitter/Receiver |
| Twisted Pair Cable Standard | Category 6 |
| Twisted Pair Cable Standard | Category 6 |
| Twisted Pair Cable Standard | Category 6 |
| UPC Alternates | 037332236012 |
| UPC Alternates | 037332236012 |
| UPC Alternates | 037332236012 |
