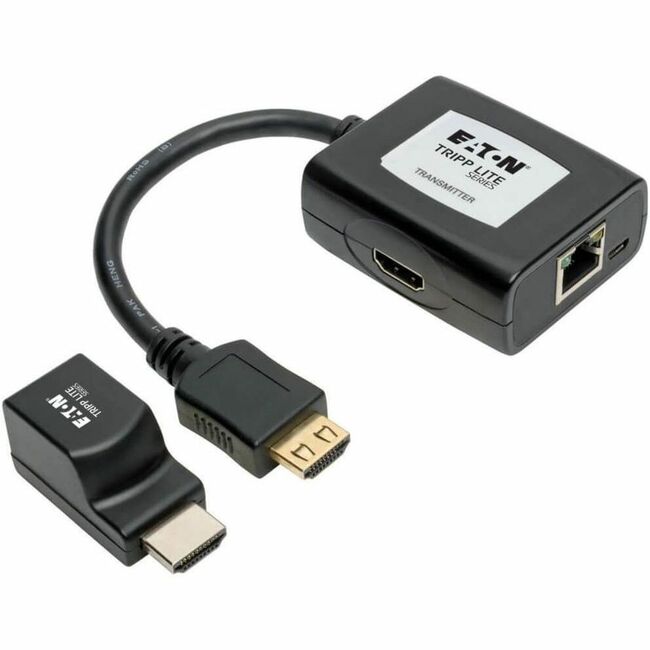

Tripp Lite HDMI over Cat5/Cat6 Extender Kit, Power over Cable, 1080p @ 60 Hz, TAA
New
Tripp Lite HDMI over Cat5/Cat6 Extender Kit, Power over Cable, 1080p @ 60 Hz, TAA - 1 Input Device - 1 Output Device - 100 ft Range - 2 x Network (RJ-45) - 1 x HDMI InHDMI Out - Full HD - 1920 x 1080 - Twisted Pair - Category 6a - TAA Compliant
| $76.78 Retail $120.00 |
- Transmitter extends HDMI A/V signal to low-profile receiver
- Recommended for digital signs, trade shows, classrooms, churches, offices, retail settings and other HDMI A/V applications
- Extends a 1080p (@ 60 Hz) signal up to 50 ft. from source
- Extends a 1080i signal up to 100 ft. from source
- Supports 7.1-channel surround sound (multi-channel or PCM) audio
- HDCP and 3D compliant
You may be also interested
$35.46
$60.00
$1,653.01
$2,800.00
$396.74
$712.32
$137.11
$484.00
$4,309.48
$7,300.00
$1,227.91
$1,500.00
$81.78
$120.00
$324.74
$415.00
$36.09
$46.00
$210.48
$269.00
$69.76
$89.00
$5,254.01
$8,900.00
$1,180.75
$2,000.00
$59.08
$100.00
$59.12
$100.00
$45.71
$127.00
$62.10
$88.99
$26.47
$204.00
$366.84
$1,157.00
$30.07
$84.00
Tripp Lite HDMI over Cat5/Cat6 Extender Kit, Power over Cable, 1080p @ 60 Hz, TAA - 1 Input Device - 1 Output Device - 100 ft Range - 2 x Network (RJ-45) - 1 x HDMI InHDMI Out - Full HD - 1920 x 1080 - Twisted Pair - Category 6a - TAA Compliant
1 Input Device - 1 Output Device - 100 ft Range - 2 x Network (RJ-45) - 1 x HDMI InHDMI Out - Full HD - 1920 x 1080 - Twisted Pair - Category 6a - TAA Compliant
1 Input Device - 1 Output Device - 100 ft Range - 2 x Network (RJ-45) - 1 x HDMI InHDMI Out - Full HD - 1920 x 1080 - Twisted Pair - Category 6a - TAA Compliant
Product Specifications
| Network (RJ-45) | Yes |
| Network (RJ-45) | Yes |
| Brand Name | Tripp Lite |
| Brand Name | Tripp Lite |
| Connectivity technology | Wired |
| Connectivity technology | Wired |
| Country of origin | Taiwan |
| Country of origin | Taiwan |
| Graphics Modes | Full HD |
| Graphics Modes | Full HD |
| Limited Warranty | 1 Year |
| Limited Warranty | 1 Year |
| Manufacturer | Tripp Lite by Eaton |
| Manufacturer | Tripp Lite by Eaton |
| Manufacturer Part Number | B126-1P1M-U-POC |
| Manufacturer Part Number | B126-1P1M-U-POC |
| Manufacturer Website Address | http://www.tripplite.com |
| Manufacturer Website Address | http://www.tripplite.com |
| Marketing Information | The B126-1P1M-U-POC HDMI over Cat5/Cat6 Extender Kit includes a transmitter and a low-profile receiver that work in tandem to extend an HDMI audio/video signal to a projector monitor or television. The kit is recommended for digital signs trade shows classrooms churches offices retail settings and other applications where the source is located farther than conventional cables allow. HDMI cable (see Tripp Lite's P568-Series) connects the audio/video source such as a Blu-ray™ player and optional local display to the transmitter's HDMI ports. Cat5e/6/6a cable connects the transmitter to the receiver's RJ45 port (for best results use 24 AWG solid-wire Cat6 cable such as Tripp Lite's N202-Series). The receiver plugs directly into the display's HDMI input port. Built-in PoC technology powers the receiver over Cat5e/6/6a cable so no external power supply on the display side is needed. The B126-1P1M-U-POC can extend a high-definition 1080p (at 60 Hz) signal up to 50 feet and a 1080i signal up to 100 feet. In addition to crystal-clear video the B126-1P1M-U-POC delivers full rich audio up to 7.1-channel surround sound (multi-channel or PCM) and supports 3D and HDCP standards. Easy to set up with no software or drivers to install. Complies with the Federal Trade Agreements Act (TAA) for GSA Schedule purchases. |
| Marketing Information | The B126-1P1M-U-POC HDMI over Cat5/Cat6 Extender Kit includes a transmitter and a low-profile receiver that work in tandem to extend an HDMI audio/video signal to a projector monitor or television. The kit is recommended for digital signs trade shows classrooms churches offices retail settings and other applications where the source is located farther than conventional cables allow. HDMI cable (see Tripp Lite's P568-Series) connects the audio/video source such as a Blu-ray™ player and optional local display to the transmitter's HDMI ports. Cat5e/6/6a cable connects the transmitter to the receiver's RJ45 port (for best results use 24 AWG solid-wire Cat6 cable such as Tripp Lite's N202-Series). The receiver plugs directly into the display's HDMI input port. Built-in PoC technology powers the receiver over Cat5e/6/6a cable so no external power supply on the display side is needed. The B126-1P1M-U-POC can extend a high-definition 1080p (at 60 Hz) signal up to 50 feet and a 1080i signal up to 100 feet. In addition to crystal-clear video the B126-1P1M-U-POC delivers full rich audio up to 7.1-channel surround sound (multi-channel or PCM) and supports 3D and HDCP standards. Easy to set up with no software or drivers to install. Complies with the Federal Trade Agreements Act (TAA) for GSA Schedule purchases. |
| Maximum Operating Distance | 100 ft |
| Maximum Operating Distance | 100 ft |
| Maximum Video Resolution | 1920 x 1080 |
| Maximum Video Resolution | 1920 x 1080 |
| Media Type Supported | Twisted Pair |
| Media Type Supported | Twisted Pair |
| Number of HDMI Inputs | 1 |
| Number of HDMI Inputs | 1 |
| Number of Network (RJ-45) Ports | 2 |
| Number of Network (RJ-45) Ports | 2 |
| Package Contents |
|
| Package Contents |
|
| Product Name | HDMI over Cat5/Cat6 Extender Kit Power over Cable 1080p @ 60 Hz TAA |
| Product Name | HDMI over Cat5/Cat6 Extender Kit Power over Cable 1080p @ 60 Hz TAA |
| Product Type | Video Extender Transmitter/Receiver |
| Product Type | Video Extender Transmitter/Receiver |
| Twisted Pair Cable Standard | Category 6a |
| Twisted Pair Cable Standard | Category 6a |
| UPC Alternates | 037332201003 818246941243 818276074768 |
| UPC Alternates | 037332201003 818246941243 818276074768 |
