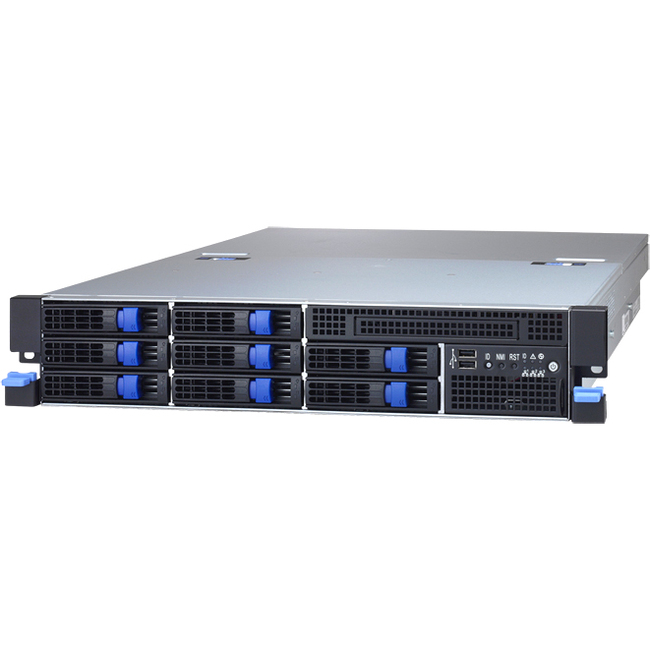

Tyan GN70(B7056) Barebone System - 2U Rack-mountable - Socket R LGA-2011 - 2 x Processor Support - Intel C602 Chip - 16 Total Memory Slots - Serial Attached SCSI (SAS), Serial ATA/600 - ASPEED AST2300 Graphic(s) - Network (RJ-45) - Processor Support (Xeon) - 2 x 770 W
Intel C602 Chip - 16 Total Memory Slots - Serial Attached SCSI (SAS), Serial ATA/600 - ASPEED AST2300 Graphic(s) - Network (RJ-45) - Processor Support (Xeon) - 2 x 770 W
| Chipset | Intel C602 |
| Chipset Manufacturer | Intel |
| Chipset Model | C602 |
| Graphics Controller Manufacturer | ASPEED |
| Graphics Controller Model | AST2300 |
| Maximum Power Supply Wattage | 770 W |
| Number of Power Supplies Installed | 2 |
| Processor Socket | Socket R LGA-2011 |
| Processor Supported | Xeon |
| QuickPath Interconnect | 8 GT/s |
| Brand Name | Tyan |
| Certifications & Standards | - ACPI 2.0
- CE (DoC)
- FCC (DoC ) Class A
|
| Controller Type | Serial Attached SCSI (SAS) |
| Controller Type | Serial ATA/600 |
| Depth | 27.6" |
| Environmental Certification | ErP |
| Environmental Certification | RoHS-6 |
| Environmentally Friendly | Yes |
| Ethernet Technology | Gigabit Ethernet |
| Ethernet Technology | 10 Gigabit Ethernet |
| Form factor | Rack-mountable |
| Height | 3.4" |
| Input voltage | 220 V AC |
| Input voltage | 110 V AC |
| Manufacturer | Tyan Computer Corp |
| Manufacturer Part Number | B7056G70W8HR |
| Manufacturer Website Address | http://www.tyan.com |
| Marketing Information | Bring your enterprise to the future of server technology! TYAN server solutions offer industry-leading form factors and the features required to build best-in-class server systems to meet your requirements. Aggressively-priced and specifically-engineered for a wide range of applications TYAN barebones servers and server chassis enclosures provide OEMs VARs and S/Is with simplified cost-effective components and solutions for building robust feature-rich servers. |
| Number of Total Expansion Bays | 8 |
| Number of Total Memory Slots | 16 |
| Package Contents | - GN70(B7056) Barebone System
- 2 x LGA2011 CPU heatsinks
- 1 x sliding rail kit
- 1 x MB User's manual + (1) BB User's manual
- 1 x TYAN installation CD
- 2 x CCBL-0300 EU type power cord
- 2 x CCBL-0317 US type power cords
|
| Product Model | GN70(B7056) |
| Product Name | GN70(B7056) Barebone System |
| Product Series | GN70 |
| Product Type | Barebone System |
| Rack Height | 2U |
| Total Number of USB Ports | 4 |
| UPC Alternates | 635872030536 |
| Width | 17.7" |
