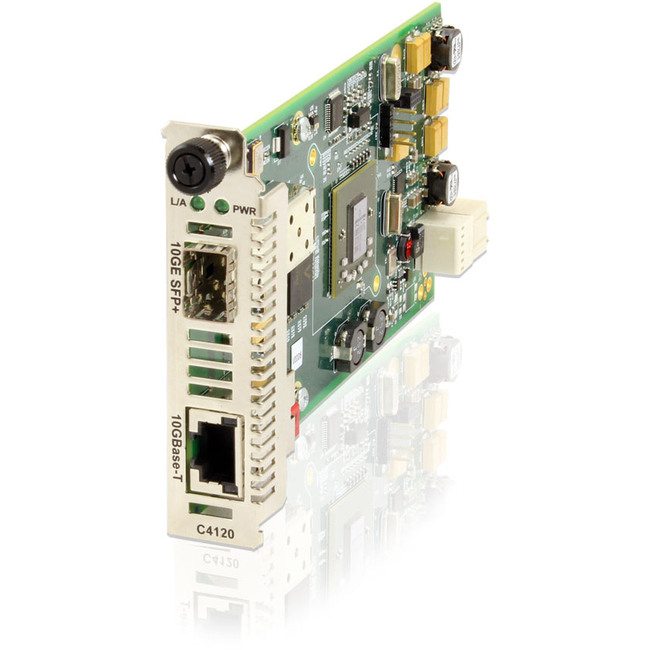

Transition Networks 10GBase-T Copper to Fiber Media Converter - 1 x Network (RJ-45) - 10GBase-T, 10GBase-X - 1 x Expansion Slots - 1 x SFP+ Slots - Internal
1 x Network (RJ-45) - 10GBase-T, 10GBase-X - 1 x Expansion Slots - 1 x SFP+ Slots - Internal
| Number of Total Expansion Slots | 1 |
| Brand Name | Transition Networks |
| Certifications & Standards | - FCC Class A
- EN55022 Class A
- EN55024
- CE Mark
- IEEE802.3
- IEEE 802.3an
- IEEE 802.3ae
- IEEE 802.3az
|
| Compatibility | Transition Managed ION Chassis |
| Country of origin | United States |
| Environmental Certification | WEEE |
| Environmental Certification | RoHS |
| Environmentally Friendly | Yes |
| Ethernet Technology | 10 Gigabit Ethernet |
| Expansion Slot Type | SFP+ |
| Form factor | Internal |
| Height | 3.4" |
| Input voltage | 12 V DC |
| Limited Warranty | Lifetime |
| Manufacturer | Transition Networks Inc |
| Manufacturer Part Number | C4120-1048 |
| Manufacturer Website Address | http://www.transition.com |
| Marketing Information | The x4120-1048 is a 10 Gigabit Ethernet copper to fiber media converter. It offers conversion technology by providing one 10GBase-T RJ-45 port
and one pluggable 10GBase-X fiber SFP+ port. The open SFP+ port supports a wide variety of Transition Networks 10GE SFP+ fiber modules as well as third party MSA compatible SFP+ modules.
The x4120 provides several 10G Ethernet enterprise and data center connectivity solutions. Since most 10G Ethernet switches support a combination of copper RJ-45 and open SFP+ ports the x4120 allows users to convert either of these ports to the media type of their reference to match their network requirements including direct attached copper SFP+ cables. |
| Media Type Supported | Twisted Pair |
| Network Technology | 10GBase-X |
| Network Technology | 10GBase-T |
| Product Name | 10GBase-T Copper to Fiber Media Converter |
| Product Type | Transceiver/Media Converter |
| Thickness | 860 mil |
| UPC Alternates | 648177037896 |
| USB | No |
| Width | 6.5" |
