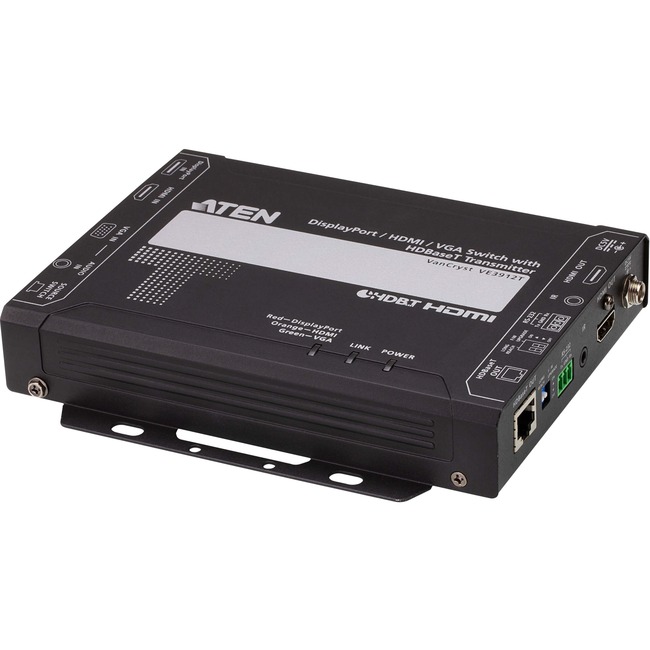

ATEN DisplayPort / HDMI / VGA Switch with HDBaseT Transmitter - 3 Input Device - 2 Output Device - 328.08 ft Range - 1 x Network (RJ-45) - 1 x HDMI In - 1 x VGA In - 1 x HDMI Out - DisplayPort - 4K UHD - 4096 x 2160 - Twisted Pair - Category 6a
3 Input Device - 2 Output Device - 328.08 ft Range - 1 x Network (RJ-45) - 1 x HDMI In - 1 x VGA In - 1 x HDMI Out - DisplayPort - 4K UHD - 4096 x 2160 - Twisted Pair - Category 6a
| Number of Input Devices Supported | 3 |
| Number of Output Devices Supported | 2 |
| Transmitter Depth | 6.81" |
| Transmitter Height | 1.18" |
| Transmitter Weight (Approximate) | 1.43 lb |
| Transmitter Width | 5.78" |
| Brand Name | ATEN |
| Connectivity technology | Wired |
| Environmental Certification | WEEE |
| Environmental Certification | RoHS |
| Environmentally Friendly | Yes |
| Graphics Modes | 4K UHD |
| Manufacturer | ATEN Technology Inc |
| Manufacturer Part Number | VE3912T |
| Manufacturer Website Address | http://www.aten.com/us/en/ |
| Marketing Information | The ATEN VE3912T is an HDBaseT transmitter that extends 4K DisplayPort HDMI or VGA video signals up to 100 m over a single Cat 6/6a or ATEN 2L-2910 Cat 6 cable. Featuring multiple video input formats and output resolutions up to 4K it ensures a superior video quality for applications that require digital/analog sources conversion and extension. This HDCP 2.2 compliant transmitter meets the HDMI specification including 3D Deep Color and 4Kx2K video quality. The Auto Switch Mode allows the VE3912T to automatically switch to a newly plugged-in source. With its built-in PoH (Power over HDBaseT) function it can receive power from the HDBaseT output port on the connected device eliminating the need for a power adapter. As a combination of extension and switch for both digital and analog inputs VE3912T is recommended to be deployed in settings with multiple source inputs such as conference rooms digital educational environment or wherever integration and simplification are required. |
| Maximum Operating Distance | 328.08 ft |
| Maximum Video Resolution | 4096 x 2160 |
| Media Type Supported | Twisted Pair |
| Number of Network (RJ-45) Ports | 1 |
| Package Contents | - DisplayPort / HDMI / VGA Switch with HDBaseT Transmitter
- 1 x RS-232 Terminal Block
- 1 x Power Adapter
- 4 x Foot Pads
- 1 x User Instructions
|
| Product Name | DisplayPort / HDMI / VGA Switch with HDBaseT Transmitter |
| Product Type | Video Extender Transmitter |
| Twisted Pair Cable Standard | Category 6a |
