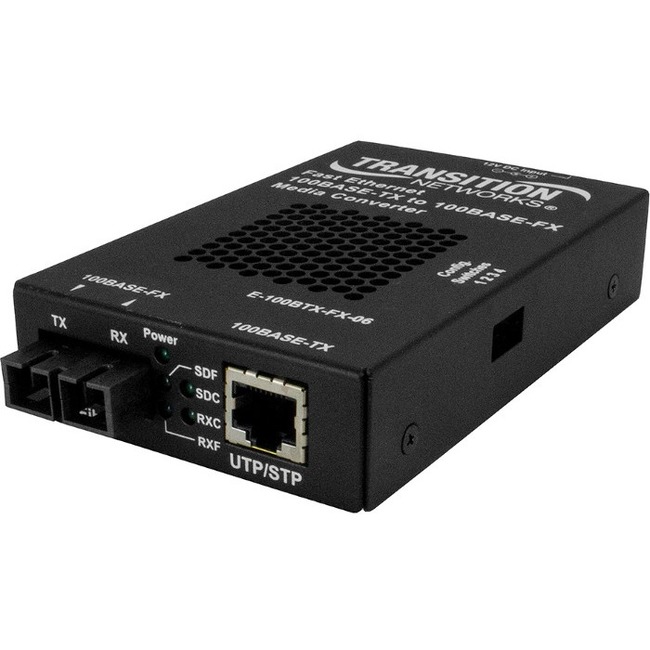

Transition Networks Stand-alone Fast Ethernet Media Converter 100Base-TX to 100Base-FX
| $188.96 Retail $258.00 |
- Used in pairs or as a single unit to integrate fiber into a 100base copper environment
- Low latency, layer 1 design
- Auto-negotiation
- Auto-MDI/MDIX
- Active link pass through
- Far-End-Fault (FEF)
- Pause
- Automatic link restoration
- Supports all 100Mbps SFP Modules
1 x Network (RJ-45) - 1 x SC Ports - Multi-mode - Fast Ethernet - 100Base-TX, 100Base-FX - 1.24 Mile - AC/DC - Standalone, Rack-mountable, Shelf Mount, DIN Rail Mountable, Wall Mountable
Product Specifications
| Fiber Mode Supported | Multi-mode |
| Fiber Mode Supported | Multi-mode |
| Fiber Optic Wavelength | 1300 nm |
| Fiber Optic Wavelength | 1300 nm |
| Maximum Distance Supported | 1.24 Mile |
| Maximum Distance Supported | 1.24 Mile |
| Brand Name | Transition Networks |
| Brand Name | Transition Networks |
| Depth | 4.7" |
| Depth | 4.7" |
| Environmental Certification | RoHS |
| Environmental Certification | WEEE |
| Environmental Certification | WEEE |
| Environmental Certification | RoHS |
| Environmentally Friendly | Yes |
| Environmentally Friendly | Yes |
| Ethernet Technology | Fast Ethernet |
| Ethernet Technology | Fast Ethernet |
| Form factor | DIN Rail Mountable |
| Form factor | Standalone |
| Form factor | Rack-mountable |
| Form factor | Shelf Mount |
| Form factor | Wall Mountable |
| Form factor | Shelf Mount |
| Form factor | Wall Mountable |
| Form factor | Rack-mountable |
| Form factor | DIN Rail Mountable |
| Form factor | Standalone |
| Height | 1" |
| Height | 1" |
| Limited Warranty | Lifetime |
| Limited Warranty | Lifetime |
| Manufacturer | Transition Networks Inc |
| Manufacturer | Transition Networks Inc |
| Manufacturer Part Number | E-100BTX-FX-06(SC)-NA |
| Manufacturer Part Number | E-100BTX-FX-06(SC)-NA |
| Manufacturer Website Address | http://www.transition.com |
| Manufacturer Website Address | http://www.transition.com |
| Marketing Information | The E-100BTX-FX-06 is a stand-alone media converter that provides an interface between 100Base-TX ports and 100Base-FX ports allowing users to integrate fiber optic cabling into 100Base-TX copper environments. Operating at Layer 1 the physical layer data is passed through the converter at line speed making it ideal for applications where low latency is essential. |
| Marketing Information | The E-100BTX-FX-06 is a stand-alone media converter that provides an interface between 100Base-TX ports and 100Base-FX ports allowing users to integrate fiber optic cabling into 100Base-TX copper environments. Operating at Layer 1 the physical layer data is passed through the converter at line speed making it ideal for applications where low latency is essential. |
| Media Type Supported | Twisted Pair |
| Media Type Supported | Optical Fiber |
| Media Type Supported | Twisted Pair |
| Media Type Supported | Optical Fiber |
| Network Technology | 100Base-TX |
| Network Technology | 100Base-TX |
| Network Technology | 100Base-FX |
| Network Technology | 100Base-FX |
| Number of Network (RJ-45) Ports | 1 |
| Number of Network (RJ-45) Ports | 1 |
| Package Contents |
|
| Package Contents |
|
| Power consumption | 1.75 W |
| Power consumption | 1.75 W |
| Power source | AC/DC |
| Power source | AC/DC |
| Product Name | Stand-alone Fast Ethernet Media Converter 100Base-TX to 100Base-FX |
| Product Name | Stand-alone Fast Ethernet Media Converter 100Base-TX to 100Base-FX |
| Product Series | E-100BTX-FX-06 |
| Product Series | E-100BTX-FX-06 |
| Product Type | Transceiver/Media Converter |
| Product Type | Transceiver/Media Converter |
| Total Number of Ports | 2 |
| Total Number of Ports | 2 |
| UPC Alternates | 648177043606 |
| UPC Alternates | 648177043606 |
| Weight (Approximate) | 2 lb |
| Weight (Approximate) | 2 lb |
| Width | 3" |
| Width | 3" |
