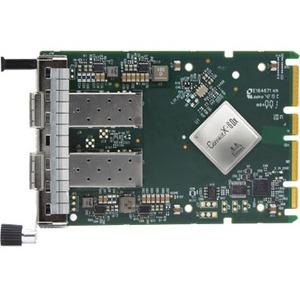

Mellanox ConnectX-6 Dx Ethernet SmartNIC - PCI Express 4.0 x16 - 2 Port(s) - Optical Fiber - 100GBase-X, 50GBase-X, 25GBase-X, 10GBase-X, 1000Base-X - Plug-in Card
PCI Express 4.0 x16 - 2 Port(s) - Optical Fiber - 100GBase-X, 50GBase-X, 25GBase-X, 10GBase-X, 1000Base-X - Plug-in Card
| Brand Name | Mellanox |
| Brand Name | Mellanox |
| Expansion Slot Type | QSFP56 |
| Expansion Slot Type | QSFP56 |
| Form factor | Plug-in Card |
| Form factor | Plug-in Card |
| Host interface | PCI Express 4.0 x16 |
| Host interface | PCI Express 4.0 x16 |
| Limited Warranty | 1 Year |
| Limited Warranty | 1 Year |
| Manufacturer | Mellanox Technologies Ltd |
| Manufacturer | Mellanox Technologies Ltd |
| Manufacturer | NVIDIA Corporation |
| Manufacturer Part Number | MCX623436AC-CDAB |
| Manufacturer Part Number | MCX623436AC-CDAB |
| Manufacturer Website Address | http://www.nvidia.com |
| Manufacturer Website Address | http://www.mellanox.com |
| Manufacturer Website Address | http://www.mellanox.com |
| Marketing Information | Industry's most secure and advanced cloud network interface cards (NIC) accelerating mission-critical data-center applications e.g. security virtualization SDN/NFV big data machine learning and storage and delivering the highest return on investment (ROI)
Providing up to two ports of 100Gb/s or single-port of 200Gb/s Ethernet connectivity ConnectX-6 Dx is a member of Mellanox's world-class award-winning ConnectX series of network adapters. Powered by leading 50Gb/s (PAM4) and 25/10 Gb/s (NRZ) SerDes technology and novel capabilities that accelerate cloud and data-center payloads.
Security From Zero Trust to Hero Trust
In an era where privacy of information is key and zero trust is the rule ConnectX-6 Dx adapters offer a range of advanced built-in capabilities that bring security down to the end-points with unprecedented performance and scalability including:
Crypto - IPsec and TLS data-in-motion inline encryption and decryption offload and AES-XTS block-level data-at-rest encryption and decryption offload.
Probes & DoS Attacks Protection - ConnectX-6 Dx enables a hardware-based L4 firewall by ASAP2 offloading of stateful connection tracking.
NIC Security - Hardware Root-of-Trust (RoT) Secure Boot and secure firmware update using RSA cryptography and cloning-protection via a device-unique secret key.
Advanced Virtualization
ConnectX-6 Dx delivers another level of innovation to enable building highly efficient virtualized cloud data centers:
Virtualization - Mellanox ASAP - Accelerated Switch and Packet Processing® technology for vSwitch/vRouter hardware offload delivers orders of magnitude higher performance vs. software-based solutions. ConnectX-6 Dx ASAP2 offers both SR-IOV and VirtIO in-hardware offload capabilities and supports up to 8 million rules.
Advanced Quality of Service - Includes traffic shaping and classification-based data policing.
Industry-leading RoCE
Following the Mellanox ConnectX tradition of industry-leading RoCE capabilities ConnectX-6 Dx adds another layer of innovation to enable more scalable resilient and easy-to-deploy RoCE solutions.
Zero Touch RoCE - Simplifying RoCE deployments ConnectX-6 Dx allows RoCE payloads to run seamlessly on existing networks without requiring special configuration on the network (no PFC no ECN). ConnectX-6 Dx's new features ensure resiliency and efficiency at scale of such deployments.
Configurable Congestion Control - API to build user-defined congestion control algorithms best serving various environments and RoCE and TCP/IP traffic patterns.
Efficient Storage Solutions
With its NVMe-oF target and initiator offloads ConnectX-6 Dx brings further optimization to NVMe-oF enhancing CPU utilization and scalability. Additionally ConnectX-6 Dx supports hardware offload for ingress/egress of T10-DIF/PI/CRC32/CRC64 signatures as well as AES-XTS encryption/decryption offload enabling user-based key management and a one-time-FIPS-certification approach.
Wide Selection of NICs
ConnectX-6 Dx NICs are available in several form factors including low-profile PCIe OCP2.0 and OCP3.0 cards with various network connection types (SFP28/56 QSFP28/56 or SFP-DD). The ConnectX-6 Dx portfolio also provides options for Mellanox Multi-Host® and Mellanox Socket Direct® configurations. |
| Marketing Information | Industry's most secure and advanced cloud network interface cards (NIC) accelerating mission-critical data-center applications e.g. security virtualization SDN/NFV big data machine learning and storage and delivering the highest return on investment (ROI)
Providing up to two ports of 100Gb/s or single-port of 200Gb/s Ethernet connectivity ConnectX-6 Dx is a member of Mellanox's world-class award-winning ConnectX series of network adapters. Powered by leading 50Gb/s (PAM4) and 25/10 Gb/s (NRZ) SerDes technology and novel capabilities that accelerate cloud and data-center payloads.
Security From Zero Trust to Hero Trust
In an era where privacy of information is key and zero trust is the rule ConnectX-6 Dx adapters offer a range of advanced built-in capabilities that bring security down to the end-points with unprecedented performance and scalability including:
Crypto - IPsec and TLS data-in-motion inline encryption and decryption offload and AES-XTS block-level data-at-rest encryption and decryption offload.
Probes & DoS Attacks Protection - ConnectX-6 Dx enables a hardware-based L4 firewall by ASAP2 offloading of stateful connection tracking.
NIC Security - Hardware Root-of-Trust (RoT) Secure Boot and secure firmware update using RSA cryptography and cloning-protection via a device-unique secret key.
Advanced Virtualization
ConnectX-6 Dx delivers another level of innovation to enable building highly efficient virtualized cloud data centers:
Virtualization - Mellanox ASAP - Accelerated Switch and Packet Processing® technology for vSwitch/vRouter hardware offload delivers orders of magnitude higher performance vs. software-based solutions. ConnectX-6 Dx ASAP2 offers both SR-IOV and VirtIO in-hardware offload capabilities and supports up to 8 million rules.
Advanced Quality of Service - Includes traffic shaping and classification-based data policing.
Industry-leading RoCE
Following the Mellanox ConnectX tradition of industry-leading RoCE capabilities ConnectX-6 Dx adds another layer of innovation to enable more scalable resilient and easy-to-deploy RoCE solutions.
Zero Touch RoCE - Simplifying RoCE deployments ConnectX-6 Dx allows RoCE payloads to run seamlessly on existing networks without requiring special configuration on the network (no PFC no ECN). ConnectX-6 Dx's new features ensure resiliency and efficiency at scale of such deployments.
Configurable Congestion Control - API to build user-defined congestion control algorithms best serving various environments and RoCE and TCP/IP traffic patterns.
Efficient Storage Solutions
With its NVMe-oF target and initiator offloads ConnectX-6 Dx brings further optimization to NVMe-oF enhancing CPU utilization and scalability. Additionally ConnectX-6 Dx supports hardware offload for ingress/egress of T10-DIF/PI/CRC32/CRC64 signatures as well as AES-XTS encryption/decryption offload enabling user-based key management and a one-time-FIPS-certification approach.
Wide Selection of NICs
ConnectX-6 Dx NICs are available in several form factors including low-profile PCIe OCP2.0 and OCP3.0 cards with various network connection types (SFP28/56 QSFP28/56 or SFP-DD). The ConnectX-6 Dx portfolio also provides options for Mellanox Multi-Host® and Mellanox Socket Direct® configurations. |
| Media Type Supported | Optical Fiber |
| Media Type Supported | Optical Fiber |
| Network Technology | 10GBase-X |
| Network Technology | 100GBase-X |
| Network Technology | 50GBase-X |
| Network Technology | 1000Base-X |
| Network Technology | 25GBase-X |
| Network Technology | 1000Base-X |
| Network Technology | 50GBase-X |
| Network Technology | 100GBase-X |
| Network Technology | 25GBase-X |
| Network Technology | 10GBase-X |
| Product Line | ConnectX-6 Dx |
| Product Line | ConnectX-6 Dx |
| Product Name | ConnectX-6 Dx Ethernet SmartNIC |
| Product Name | ConnectX-6 Dx Ethernet SmartNIC |
| Product Type | 100Gigabit Ethernet Card |
| Product Type | 100Gigabit Ethernet Card |
| Total Number of Ports | 2 |
| Total Number of Ports | 2 |
