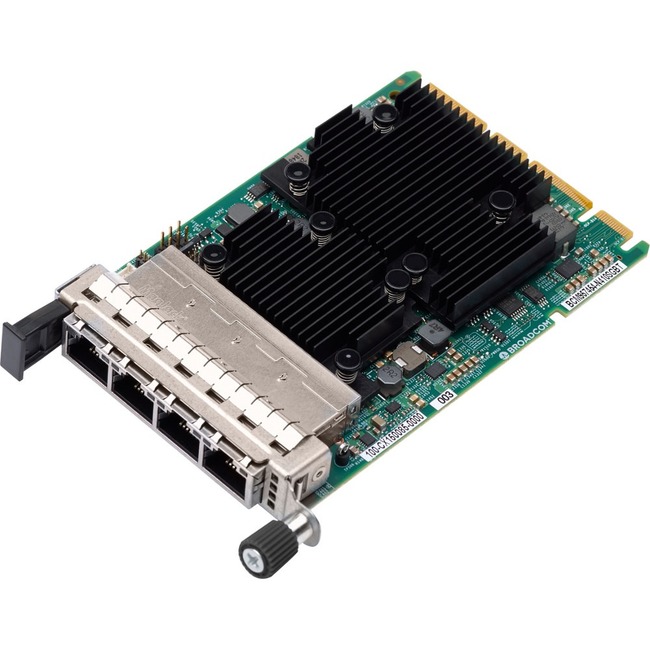

Lenovo ThinkSystem Broadcom 57454 10GBASE-T 4-port OCP Ethernet Adapter
| $845.62 |
- 10Gigabit Ethernet card offers the flexibility and scalability to make infrastructure run as efficiently and productively as possible with 10Gigabit data transfer rate
- With quad ports on a single card, save valuable expansion slots on your system for other purposes
- Supports cost-efficient twisted pair cables for speedy data transfer up to 100 meters
- With the 10GBase-T technology get up to 10Gbps data transfer rate over the twisted pair cable
4 Port(s) - 4 - Twisted Pair - 10GBase-T - Mezzanine
Product Specifications
| Brand Name | Lenovo |
| Brand Name | Lenovo |
| Depth | 4.5" |
| Depth | 4.5" |
| Device Supported | Server |
| Device Supported | Server |
| Form factor | Mezzanine |
| Form factor | Mezzanine |
| Manufacturer | Lenovo Group Limited |
| Manufacturer | Lenovo Group Limited |
| Manufacturer Part Number | 4XC7A08240 |
| Manufacturer Part Number | 4XC7A08240 |
| Manufacturer Website Address | http://www.lenovo.com/us/en/ |
| Manufacturer Website Address | http://www.lenovo.com/us/en/ |
| Marketing Information | The ThinkSystem Broadcom 57454 10GBASE-T Ethernet Adapters are high-performance 10 Gb Ethernet adapters in either standard PCIe form factor or the Open Compute Project (OCP) 3.0 SFF form factor. They offer TruFlow™ intelligent flow processing and support advanced networking technologies including RoCE v1/2 SDN NFV and virtualization. 10GBASE-T is a low-cost way to enter the 10 Gb Ethernet space. By using standard UTP twisted pair cabling you eliminate the need for transceivers or fiber optic cabling. The OCP 3.0 adapters support the Network Controller Sideband Interface (NC-SI) for communication with the server's onboard service processor. This support enables sharing the network interface with the service processor and the operating system thereby eliminating the need for a separate management network. |
| Marketing Information | The ThinkSystem Broadcom 57454 10GBASE-T Ethernet Adapters are high-performance 10 Gb Ethernet adapters in either standard PCIe form factor or the Open Compute Project (OCP) 3.0 SFF form factor. They offer TruFlow™ intelligent flow processing and support advanced networking technologies including RoCE v1/2 SDN NFV and virtualization. 10GBASE-T is a low-cost way to enter the 10 Gb Ethernet space. By using standard UTP twisted pair cabling you eliminate the need for transceivers or fiber optic cabling. The OCP 3.0 adapters support the Network Controller Sideband Interface (NC-SI) for communication with the server's onboard service processor. This support enables sharing the network interface with the service processor and the operating system thereby eliminating the need for a separate management network. |
| Media Type Supported | Twisted Pair |
| Media Type Supported | Twisted Pair |
| Network Technology | 10GBase-T |
| Network Technology | 10GBase-T |
| Number of Network (RJ-45) Ports | 4 |
| Number of Network (RJ-45) Ports | 4 |
| Packaged Quantity | 1 |
| Packaged Quantity | 1 |
| Product Model | 57454 |
| Product Model | 57454 |
| Product Name | ThinkSystem Broadcom 57454 10GBASE-T 4-port OCP Ethernet Adapter |
| Product Name | ThinkSystem Broadcom 57454 10GBASE-T 4-port OCP Ethernet Adapter |
| Product Type | 10Gigabit Ethernet Card |
| Product Type | 10Gigabit Ethernet Card |
| UPC Alternates | 889488497324 |
| UPC Alternates | 889488497324 |
| Width | 3" |
| Width | 3" |
