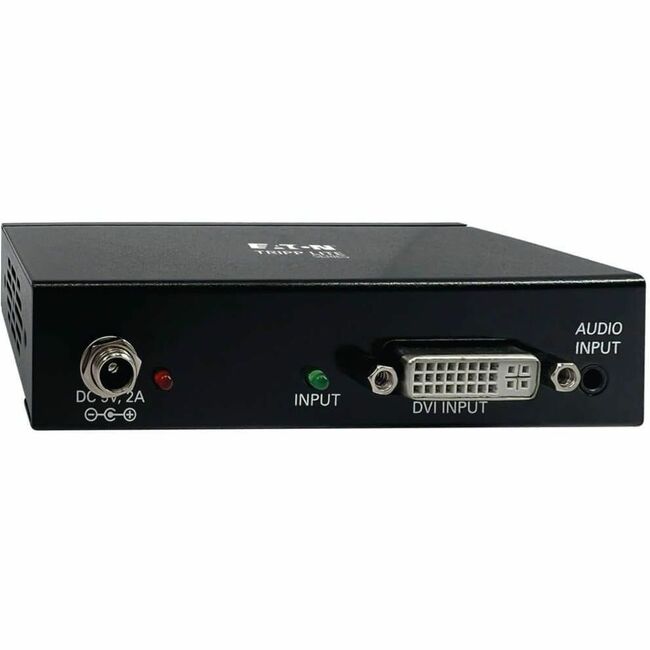

Tripp Lite B116-002A-INT 2-Port DVI Splitter - 1920 x 1200 - 80 ft Maximum Operating Distance - Audio Line In - Audio Line Out - DVI In - DVI Out - Metal - TAA Compliant
1920 x 1200 - 80 ft Maximum Operating Distance - Audio Line In - Audio Line Out - DVI In - DVI Out - Metal - TAA Compliant
| Number of DVI Outputs | 2 |
| Number of DVI Outputs | 2 |
| Number of DVI Outputs | 2 |
| Product Material | Metal |
| Product Material | Metal |
| Product Material | Metal |
| Brand Name | Tripp Lite |
| Brand Name | Tripp Lite |
| Brand Name | Tripp Lite |
| Country of origin | Taiwan |
| Country of origin | Taiwan |
| Country of origin | Taiwan |
| Depth | 2.5" |
| Depth | 2.5" |
| Depth | 2.5" |
| Environmental Certification | RoHS |
| Environmental Certification | RoHS |
| Environmental Certification | WEEE |
| Environmental Certification | REACH |
| Environmental Certification | REACH |
| Environmental Certification | WEEE |
| Environmental Certification | RoHS |
| Environmental Certification | WEEE |
| Environmental Certification | REACH |
| Environmentally Friendly | Yes |
| Environmentally Friendly | Yes |
| Environmentally Friendly | Yes |
| Height | 1.1" |
| Height | 1.1" |
| Height | 1.1" |
| Input voltage | 230 V AC |
| Input voltage | 230 V AC |
| Input voltage | 230 V AC |
| Input voltage | 120 V AC |
| Input voltage | 120 V AC |
| Input voltage | 120 V AC |
| Limited Warranty | 1 Year |
| Limited Warranty | 1 Year |
| Limited Warranty | 1 Year |
| Manufacturer | Tripp Lite by Eaton |
| Manufacturer | Tripp Lite by Eaton |
| Manufacturer | Tripp Lite by Eaton |
| Manufacturer Part Number | B116002AINT |
| Manufacturer Part Number | B116002AINT |
| Manufacturer Part Number | B116-002A-INT |
| Manufacturer Part Number | B116-002A-INT |
| Manufacturer Part Number | B116-002A-INT |
| Manufacturer Website Address | http://www.tripplite.com |
| Manufacturer Website Address | http://www.tripplite.com |
| Manufacturer Website Address | http://www.tripplite.com |
| Marketing Information | Features l DVI Single-Link Splitter Transmits HD Video + Audio to 2 DVI Displays at the Same Time
Recommended for displaying digital signage in classrooms healthcare facilities churches offices restaurants bars and trade shows this high-definition DVI-D splitter is quick and easy to install. It connects to a DVI-enabled source device such as a computer cable box/DVR or DVD player and transmits a video + audio signal to two sets of DVI-enabled monitors and speakers. You can cascade up to three levels of splitters to expand the total number of connected displays and speakers.
Maintains 1920 x 1200 Video Resolutions with Rich Stereo Sound
This DVI splitter transmits one DVI-D single-link video signal with 3.5 mm stereo audio to two sets of monitors and speakers simultaneously. It supports computer video resolutions up to 1920 x 1200 and HDTV resolutions up to 1080p. The distance between the splitter and the DVI source must not exceed 16 feet (4.88 meters). You will need to provide your own DVI DVI with Audio and/or 3.5 mm Audio cables (see the included owner's manual for suggestions).
Supports High-Definition Video Signals up to 80 ft. (24 m)
A built-in booster expands the distance between the splitter and the connected displays past the recommended 16-foot (4.88 meters) DVI signal limitation. The B116-002A-INT distributes source video resolutions between 1600 x 1200 (at 60 Hz) and 1920 x 1200 (at 60 Hz) up to 49 feet (15 meters) between the splitter and the connected displays/speakers. However by dropping down to source video resolutions below 1600 x 1200 (at 60 Hz) which includes 1080p the distance between the splitter and the connected displays/speakers increases to 65 feet (20 meters). For even more video distance add a Tripp Lite DVI extender (sold separately) to the connection.
Ready to Use Right Out of the Package
The plug-and-play splitter comes ready to connect right out of the package and requires no additional software or drivers. Its durable metal housing is designed to last a long time and fit seamlessly into any home or office application. Hardware is included for mounting the unit to a wall on a pole or in an EIA-standard 19-inch rack. The included power supply comes with four international plug adapters (North America United Kingdom Australia Europe) to ensure you can connect to an outlet almost anywhere.
TAA-Compliant for GSA Schedule Purchases
The B116-002A-INT is compliant with the Federal Trade Agreements Act (TAA) which makes it eligible for GSA (General Services Administration) Schedule and other federal procurement contracts.
System Requirements - Source device with DVI-D or DVI-I video and 3.5 mm audio output
- Display device(s) with DVI-D or DVI-I video and 3.5 mm audio input
|
| Marketing Information | Features l DVI Single-Link Splitter Transmits HD Video + Audio to 2 DVI Displays at the Same Time
Recommended for displaying digital signage in classrooms healthcare facilities churches offices restaurants bars and trade shows this high-definition DVI-D splitter is quick and easy to install. It connects to a DVI-enabled source device such as a computer cable box/DVR or DVD player and transmits a video + audio signal to two sets of DVI-enabled monitors and speakers. You can cascade up to three levels of splitters to expand the total number of connected displays and speakers.
Maintains 1920 x 1200 Video Resolutions with Rich Stereo Sound
This DVI splitter transmits one DVI-D single-link video signal with 3.5 mm stereo audio to two sets of monitors and speakers simultaneously. It supports computer video resolutions up to 1920 x 1200 and HDTV resolutions up to 1080p. The distance between the splitter and the DVI source must not exceed 16 feet (4.88 meters). You will need to provide your own DVI DVI with Audio and/or 3.5 mm Audio cables (see the included owner's manual for suggestions).
Supports High-Definition Video Signals up to 80 ft. (24 m)
A built-in booster expands the distance between the splitter and the connected displays past the recommended 16-foot (4.88 meters) DVI signal limitation. The B116-002A-INT distributes source video resolutions between 1600 x 1200 (at 60 Hz) and 1920 x 1200 (at 60 Hz) up to 49 feet (15 meters) between the splitter and the connected displays/speakers. However by dropping down to source video resolutions below 1600 x 1200 (at 60 Hz) which includes 1080p the distance between the splitter and the connected displays/speakers increases to 65 feet (20 meters). For even more video distance add a Tripp Lite DVI extender (sold separately) to the connection.
Ready to Use Right Out of the Package
The plug-and-play splitter comes ready to connect right out of the package and requires no additional software or drivers. Its durable metal housing is designed to last a long time and fit seamlessly into any home or office application. Hardware is included for mounting the unit to a wall on a pole or in an EIA-standard 19-inch rack. The included power supply comes with four international plug adapters (North America United Kingdom Australia Europe) to ensure you can connect to an outlet almost anywhere.
TAA-Compliant for GSA Schedule Purchases
The B116-002A-INT is compliant with the Federal Trade Agreements Act (TAA) which makes it eligible for GSA (General Services Administration) Schedule and other federal procurement contracts.
System Requirements - Source device with DVI-D or DVI-I video and 3.5 mm audio output
- Display device(s) with DVI-D or DVI-I video and 3.5 mm audio input
|
| Marketing Information | Features l DVI Single-Link Splitter Transmits HD Video + Audio to 2 DVI Displays at the Same Time
Recommended for displaying digital signage in classrooms healthcare facilities churches offices restaurants bars and trade shows this high-definition DVI-D splitter is quick and easy to install. It connects to a DVI-enabled source device such as a computer cable box/DVR or DVD player and transmits a video + audio signal to two sets of DVI-enabled monitors and speakers. You can cascade up to three levels of splitters to expand the total number of connected displays and speakers.
Maintains 1920 x 1200 Video Resolutions with Rich Stereo Sound
This DVI splitter transmits one DVI-D single-link video signal with 3.5 mm stereo audio to two sets of monitors and speakers simultaneously. It supports computer video resolutions up to 1920 x 1200 and HDTV resolutions up to 1080p. The distance between the splitter and the DVI source must not exceed 16 feet (4.88 meters). You will need to provide your own DVI DVI with Audio and/or 3.5 mm Audio cables (see the included owner's manual for suggestions).
Supports High-Definition Video Signals up to 80 ft. (24 m)
A built-in booster expands the distance between the splitter and the connected displays past the recommended 16-foot (4.88 meters) DVI signal limitation. The B116-002A-INT distributes source video resolutions between 1600 x 1200 (at 60 Hz) and 1920 x 1200 (at 60 Hz) up to 49 feet (15 meters) between the splitter and the connected displays/speakers. However by dropping down to source video resolutions below 1600 x 1200 (at 60 Hz) which includes 1080p the distance between the splitter and the connected displays/speakers increases to 65 feet (20 meters). For even more video distance add a Tripp Lite DVI extender (sold separately) to the connection.
Ready to Use Right Out of the Package
The plug-and-play splitter comes ready to connect right out of the package and requires no additional software or drivers. Its durable metal housing is designed to last a long time and fit seamlessly into any home or office application. Hardware is included for mounting the unit to a wall on a pole or in an EIA-standard 19-inch rack. The included power supply comes with four international plug adapters (North America United Kingdom Australia Europe) to ensure you can connect to an outlet almost anywhere.
TAA-Compliant for GSA Schedule Purchases
The B116-002A-INT is compliant with the Federal Trade Agreements Act (TAA) which makes it eligible for GSA (General Services Administration) Schedule and other federal procurement contracts.
System Requirements - Source device with DVI-D or DVI-I video and 3.5 mm audio output
- Display device(s) with DVI-D or DVI-I video and 3.5 mm audio input
|
| Maximum Operating Distance | 80 ft |
| Maximum Operating Distance | 80 ft |
| Maximum Operating Distance | 80 ft |
| Maximum Video Resolution | 1920 x 1200 |
| Maximum Video Resolution | 1920 x 1200 |
| Maximum Video Resolution | 1920 x 1200 |
| Number of Audio Line In | 1 |
| Number of Audio Line In | 1 |
| Number of Audio Line In | 1 |
| Package Contents | - B116-002A-INT 2-Port DVI Splitter
- External Power Supply (Input: 100-240V 50/60 Hz 0.35A; Output: 5V 2A)
- (4) International Plug Adapters (North America U.K. Australia Europe)
- Mounting Hardware
- Owner's Manual
|
| Package Contents | - B116-002A-INT 2-Port DVI Splitter
- External Power Supply (Input: 100-240V 50/60 Hz 0.35A; Output: 5V 2A)
- (4) International Plug Adapters (North America U.K. Australia Europe)
- Mounting Hardware
- Owner's Manual
|
| Package Contents | - B116-002A-INT 2-Port DVI Splitter
- External Power Supply (Input: 100-240V 50/60 Hz 0.35A; Output: 5V 2A)
- (4) International Plug Adapters (North America U.K. Australia Europe)
- Mounting Hardware
- Owner's Manual
|
| Product Model | B116-002A-INT |
| Product Model | B116-002A-INT |
| Product Name | B116-002A-INT 2-Port DVI Splitter |
| Product Name | B116-002A-INT 2-Port DVI Splitter |
| Product Name | B116-002A-INT 2-Port DVI Splitter |
| Product Type | Signal Splitter |
| Product Type | Signal Splitter |
| Product Type | Signal Splitter |
| UPC Alternates | 037332271556 |
| UPC Alternates | 037332271556 |
| UPC Alternates | 037332271556 |
| Weight (Approximate) | 1 lb |
| Weight (Approximate) | 1 lb |
| Weight (Approximate) | 1 lb |
| Width | 4.5" |
| Width | 4.5" |
| Width | 4.5" |
