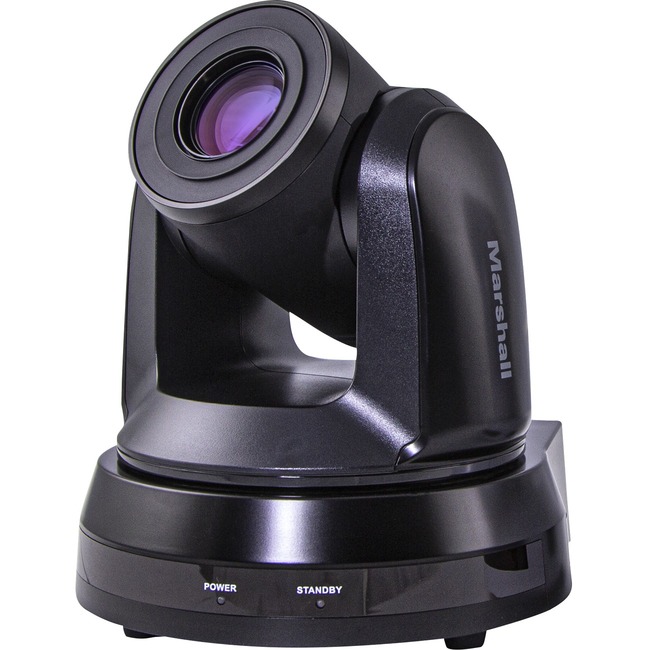

Marshall CV620-TBI 2 Megapixel Full HD Network Camera - Color - H.264, MJPEG - 1920 x 1080 - 5.30 mm- 110 mm Varifocal Lens - 20x Optical - Sony IMX327 - HDMI - Ceiling Mount, Wall Mount
H.264, MJPEG - 1920 x 1080 - 5.30 mm- 110 mm Varifocal Lens - 20x Optical - Sony IMX327 - HDMI - Ceiling Mount, Wall Mount
| Field of View | 60° (Wide) to 3° (Tele) |
| Maximum Aperture | f/1.6 |
| Minimum Aperture | f/3.6 |
| Minimum Focal Length | 5.30 mm |
| Minimum Operating Temperature | 32°F (0°C) |
| Brand Name | Marshall |
| Color Supported | Color |
| Connectivity technology | Wired |
| Effective Camera Resolution | 2 Megapixel |
| Features | Automatic White Balance |
| Features | Microphone In |
| Features | PTZ |
| Features | Auto Gain Control |
| Features | 3D Noise Reduction |
| Features | Auto Tracking |
| HDMI | Yes |
| Image Sensor Type | Sony IMX327 |
| Input voltage | 16 V DC |
| Lens Type | Varifocal |
| Longest Shutter Speed | 1/1 Second |
| Manufacturer | Marshall Electronics Inc |
| Manufacturer Part Number | CV620-TBI |
| Manufacturer Website Address | http://www.mars-cam.com |
| Marketing Information | Marshall CV620-TBI/TWI PTZ camera features an ability to automatically track follow and frame presenters using AI facial learning process for more accurate and smoother self-adjusting maneuvers. Equipped with a more than capable 20x optical zoom range from 60-degrees wide open to roughly 3-degrees telephoto. Flexible networkable IP interface with simultaneous 3GSDI and HDMI outputs. One ethernet (Cat) cable installation with PoE+ simplifies setup and operation. AI Track Follow and Frame
Designed to auto-track follow and frame presenters using more natural and smooth maneuvers. Utilizing new AI technology to recognize faces and learn movement dynamics of the subject to anticipate motion accurately follow and frame subjects with smooth transitions therefore reducing viewer irritation and fatigue. Crisp Full-HD Video Output
The CV620 is built around a professional-grade 2-Megapixel 1/2.8-inch Sony sensor with smooth 20x Optical Zoom (5.3~110mm) producing clear HD video up to 1920x1080p60fps 1920x1080i and 1280x720p. Smart AI auto-focus identifies faces and maintains accurate and sharp focus of subjects.
Versatile Camera Position
The CV620 is equipped with synchronous pan tilt and zoom motors with various speed adjustment for smooth and silent camera movements during operation. Ultra-wide 340° pan range and 120° tilt provides a wide range of movement. 20X optical zoom provides flexibility from 5.3mm to 110mm maintaining image crispness in wide and tight shots. Easy I/O and Control
Simultaneous IP 3GSDI and HDMI outputs with a wide range of remote command and control options. Locally with IR remote Video Management Software (VMS) Software GUI over web VS-PTC-IP controllers OBS plugins and many 3rd party control decks and codecs using Visca over IP/RS232/RS422. Also easy one-cable to camera setup via IP ethernet cable for control video audio tally and PoE+ (power). |
| Maximum Focal Length | 110 mm |
| Maximum frame rate | 60 fps |
| Maximum Operating Temperature | 104°F (40°C) |
| Maximum Video Resolution | 1920 x 1080 |
| Mount Type | Ceiling Mount |
| Mount Type | Wall Mount |
| Optical zoom | 20x |
| Package Contents | - 20x AI Track & Follow PTZ Camera
- Remote
- Power Adapter
- Power Cord
- RS-422 Connector
- Metal Plate A
- Metal Plate B
- M3 Screws
|
| Power source type | DC |
| Power source type | PoE |
| Product color | Black |
| Product Name | 20x AI Track & Follow PTZ Camera |
| Product Type | Network Camera |
| Recording Formats | Full HD |
| Shortest Shutter Speed | 1/10000 Second |
| UPC Alternates | 801813230819 |
| Video Formats | H.264 |
| Video Formats | MJPEG |
| Weight (Approximate) | 4.41 lb |
