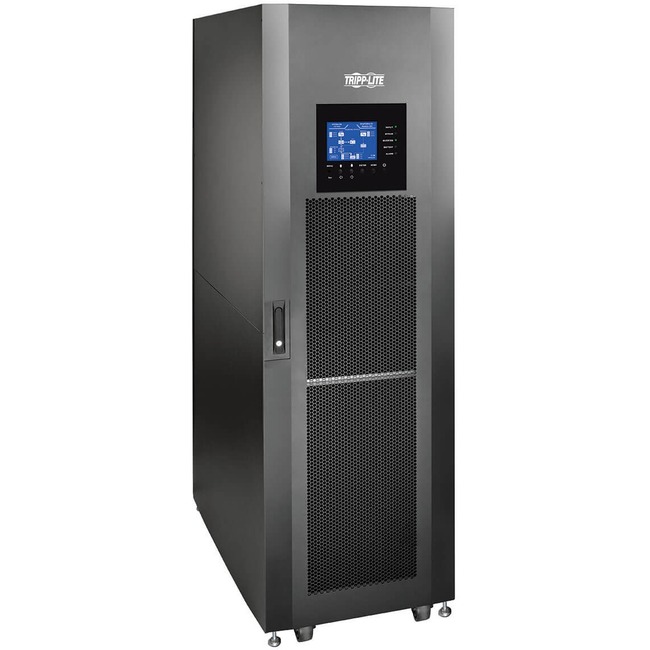

Tripp Lite 80kVA Smart Online 3-Phase UPS Large Frame Modular 208/120V - 80 kVA / 72 kW - SNMP Manageable, SSH, TelnetHardwired - Input Voltage: 120 V AC, 230 V AC - Output Voltage: 120 V AC, 230 V AC - Tower
80 kVA / 72 kW - SNMP Manageable, SSH, TelnetHardwired - Input Voltage: 120 V AC, 230 V AC - Output Voltage: 120 V AC, 230 V AC - Tower
| Phase | Three Phase |
| Phase | Three Phase |
| Waveform Type | Pure Sine Wave |
| Waveform Type | Pure Sine Wave |
| Brand Name | Tripp Lite |
| Brand Name | Tripp Lite |
| Country of origin | China |
| Country of origin | China |
| Depth | 43.3" |
| Depth | 43.3" |
| Environmental Certification | RoHS |
| Environmental Certification | RoHS |
| Environmentally Friendly | Yes |
| Environmentally Friendly | Yes |
| Form factor | Tower |
| Form factor | Tower |
| Height | 79.1" |
| Height | 79.1" |
| Input voltage | 230 V AC |
| Input voltage | 120 V AC |
| Input voltage | 120 V AC |
| Input voltage | 230 V AC |
| Limited Warranty | 1 Year |
| Limited Warranty | 1 Year |
| Load Capacity | 80 kVA |
| Load Capacity | 80 kVA |
| Manufacturer | Tripp Lite by Eaton |
| Manufacturer | Tripp Lite by Eaton |
| Manufacturer Part Number | SV80KL |
| Manufacturer Part Number | SV80KL |
| Manufacturer Website Address | http://www.tripplite.com |
| Manufacturer Website Address | http://www.tripplite.com |
| Marketing Information | The SV80KL SmartOnline® SV Series 80kVA 3-Phase On-Line Double-Conversion UPS System delivers true scalability and offers the highest level of secure uninterrupted power protection. Featuring a modular scalable design with high-efficiency voltage and frequency independent (VFI) operation this on-line UPS system is ideal for protecting a variety of critical IT systems.
The SV80KL includes preinstalled input bypass and output breakers as well as a static transfer switch (STS) and four included 20kVA SV20PM power modules. Space is included for up to four additional user-installable SV20PM power modules to accommodate increased capacity up to 140kVA with N+1 fault tolerance. Each power module is rated at 0.9 power factor for maximum power to the connected load.
The Java-free HTML5-based WEBCARDLX interface enables full remote access for site power and UPS status monitoring configuration control and email notifications via secure web browser SNMP telnet or SSH. It supports 10/100 Mbps auto-sensing for optimum communication with an Ethernet network.
With up to 92% efficiency in standard mode and up to 99% efficiency in optional economy mode this 80kVA UPS system helps you reduce operating and cooling costs. Automatic and manual bypass options keep connected equipment operational during routine maintenance or critical power module failure. Batteries are not included. External ±120VDC battery cabinets such as Tripp Lite's BP240V370 are sold separately. |
| Marketing Information | The SV80KL SmartOnline® SV Series 80kVA 3-Phase On-Line Double-Conversion UPS System delivers true scalability and offers the highest level of secure uninterrupted power protection. Featuring a modular scalable design with high-efficiency voltage and frequency independent (VFI) operation this on-line UPS system is ideal for protecting a variety of critical IT systems.
The SV80KL includes preinstalled input bypass and output breakers as well as a static transfer switch (STS) and four included 20kVA SV20PM power modules. Space is included for up to four additional user-installable SV20PM power modules to accommodate increased capacity up to 140kVA with N+1 fault tolerance. Each power module is rated at 0.9 power factor for maximum power to the connected load.
The Java-free HTML5-based WEBCARDLX interface enables full remote access for site power and UPS status monitoring configuration control and email notifications via secure web browser SNMP telnet or SSH. It supports 10/100 Mbps auto-sensing for optimum communication with an Ethernet network.
With up to 92% efficiency in standard mode and up to 99% efficiency in optional economy mode this 80kVA UPS system helps you reduce operating and cooling costs. Automatic and manual bypass options keep connected equipment operational during routine maintenance or critical power module failure. Batteries are not included. External ±120VDC battery cabinets such as Tripp Lite's BP240V370 are sold separately. |
| Network Management | Telnet |
| Network Management | SNMP Manageable |
| Network Management | SSH |
| Network Management | SSH |
| Network Management | SNMP Manageable |
| Network Management | Telnet |
| Package Contents | - SmartOnline SV80KL 80kVA Tower UPS
- Pre-installed network interface
- 4 X SV20PM 20kVA power modules
- Owner's manual
- DB9 Cable
|
| Package Contents | - SmartOnline SV80KL 80kVA Tower UPS
- Pre-installed network interface
- 4 X SV20PM 20kVA power modules
- Owner's manual
- DB9 Cable
|
| Plug/Connector Type | Hardwired |
| Plug/Connector Type | Hardwired |
| Product Family | SmartOnline SV |
| Product Family | SmartOnline SV |
| Product Line | SmartOnline |
| Product Line | SmartOnline |
| Product Name | SmartOnline SV80KL 80kVA Tower UPS |
| Product Name | SmartOnline SV80KL 80kVA Tower UPS |
| Product Series | SV |
| Product Series | SV |
| Product Type | Dual Conversion Online UPS |
| Product Type | Double Conversion Online UPS |
| Product Type | Dual Conversion Online UPS |
| UPC Alternates | 037332210241 |
| Weight (Approximate) | 906.10 lb |
| Weight (Approximate) | 906.10 lb |
| Width | 23.6" |
| Width | 23.6" |
