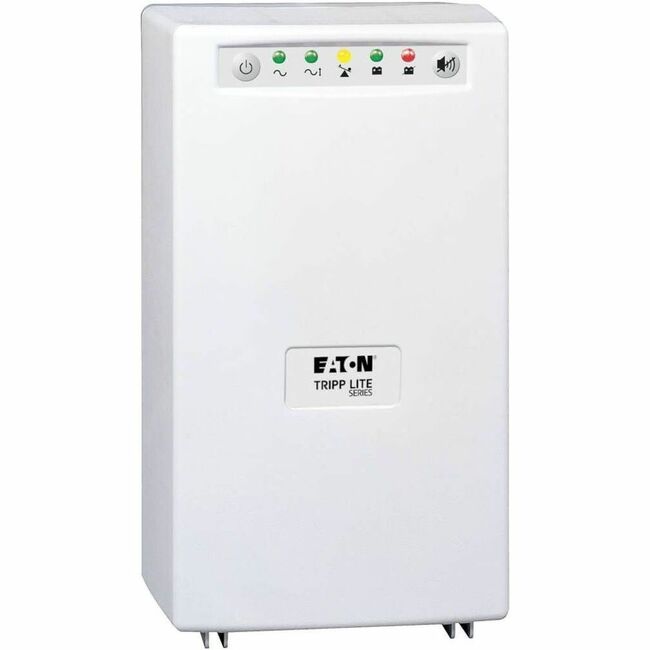

Tripp Lite UPS Smart 1000VA 750W International Tower Medical AVR 230V C13
New
Tripp Lite UPS Smart 1000VA 750W International Tower Medical AVR 230V C13 - 1000VA/750W - 11 Minute Full Load - 6 x IEC 60320 C13
| $1,007.26 Retail $1,522.56 |
- Corrects under- and overvoltages from 155V to 274V
- 6 IEC-320 C13 outlets
- Front-panel LEDs indicate load, power, voltage and battery statuses
- Expandable runtime with optional external battery packs
- 27.5 min. runtime at half load; 11 min. at full load
You may be also interested
$156.06
$316.16
$2,463.74
$3,750.00
$464.95
$1,070.00
$743.22
$1,130.00
$980.20
$1,184.00
$1,374.79
$1,990.00
$6,421.58
$9,155.00
$78.06
$89.95
$2,523.51
$3,605.00
$1,998.73
$3,250.00
$1,084.20
$1,835.00
$6,483.68
$9,141.00
$2,677.70
$4,129.00
$6,499.40
$9,265.00
$189.97
$222.00
$71.15
$75.00
$3,468.52
$4,740.00
$2,378.45
$3,250.00
$1,621.92
$1,865.00
$808.19
$1,135.00
Tripp Lite UPS 1000VA 750W International Smart Tower Medical AVR 230V C13 - 1000VA/750W - 11 Minute Full Load - 6 x IEC 60320 C13
1000VA/750W - 11 Minute Full Load - 6 x IEC 60320 C13
1000VA/750W - 11 Minute Full Load - 6 x IEC 60320 C13
Product Specifications
| Load Capacity (VA) | 1000 VA |
| Load Capacity (VA) | 1000 VA |
| Load Capacity (W) | 750 W |
| Load Capacity (W) | 750 W |
| Receptacle Detail | 6 x IEC 60320 C13 |
| Receptacle Detail | 6 x IEC 60320 C13 |
| Backup/Run Time (Full Load) | 11 Minute |
| Backup/Run Time (Full Load) | 11 Minute |
| Backup/Run Time (Half Load) | 27.50 Minute |
| Backup/Run Time (Half Load) | 27.50 Minute |
| Brand Name | Tripp Lite |
| Brand Name | Tripp Lite |
| Certifications & Standards | CE IEC 60601-1 (Medical) Class B (Emissions) |
| Certifications & Standards | CE IEC 60601-1 (Medical) Class B (Emissions) |
| Country of origin | China |
| Country of origin | China |
| Depth | 9.1" |
| Depth | 9.1" |
| Environmental Certification | RoHS |
| Environmental Certification | RoHS |
| Form factor | Tower |
| Form factor | Tower |
| Height | 12.7" |
| Height | 12.7" |
| Hot Swappable | Yes |
| Hot Swappable | Yes |
| Input current | 5 A |
| Input current | 5 A |
| Input voltage | 220 V AC |
| Input voltage | 220 V AC |
| Limited Warranty | 2 Year |
| Limited Warranty | 2 Year |
| Load Capacity | 1000 VA/750 W |
| Load Capacity | 1000 VA/750 W |
| Manufacturer | Tripp Lite by Eaton |
| Manufacturer | Tripp Lite by Eaton |
| Manufacturer Part Number | SMX1200XLHG |
| Manufacturer Part Number | SMX1200XLHG |
| Manufacturer Website Address | http://www.tripplite.com |
| Manufacturer Website Address | http://www.tripplite.com |
| Marketing Information | Tripp Lite's SMX1200XLHG medical-grade UPS system provides dependable battery backup and is fully compliant with UL 60601-1 regulations when plugged into a hospital-grade outlet making it ideal for use in patient-care vicinities. The 1kVA/750W capacity provides up to 27.5 minutes of runtime for a half load or 11 minutes for a full load so you can work through short power failures and perform an orderly system shutdown in a prolonged blackout. Built-in line-interactive voltage regulation corrects brownouts as low as 155V and overvoltages as high as 274V to normal 230V nominal output without drawing battery power. The SMX1200XLHG's built-in isolation transformer with Faraday shield offers full isolation and removes common mode noise while maintaining full AC surge suppression in all modes. Cumulative leakage current of all connected equipment is less than 100 microamps. This UPS system features six IEC320 C13 hospital-grade outlets and has a hospital-grade IEC320 C14 plug on a 15 cm (6 in.) dongle. All six outlets provide both backup protection and surge protection rated to 340 joules. The SMX1200XLHG also features diagnostic LEDs as well as a USB port and a DB9 serial port that work with Tripp Lite's included PowerAlert software for safe unattended system shutdown and file saves in the event of a prolonged power failure. Application Usage This UPS contains a lead acid battery designed to be connected continuously to an AC power source except during brief power outages. It is not intended for frequent charge/discharge cycles such as mobile cart applications where the UPS is often disconnected from the power source. Using the SMX1200XLHG in this type of application will void the battery warranty Provides Ideal UPS Backup in Healthcare Facilities
|
| Marketing Information | Tripp Lite's SMX1200XLHG medical-grade UPS system provides dependable battery backup and is fully compliant with UL 60601-1 regulations when plugged into a hospital-grade outlet making it ideal for use in patient-care vicinities. The 1kVA/750W capacity provides up to 27.5 minutes of runtime for a half load or 11 minutes for a full load so you can work through short power failures and perform an orderly system shutdown in a prolonged blackout. Built-in line-interactive voltage regulation corrects brownouts as low as 155V and overvoltages as high as 274V to normal 230V nominal output without drawing battery power. The SMX1200XLHG's built-in isolation transformer with Faraday shield offers full isolation and removes common mode noise while maintaining full AC surge suppression in all modes. Cumulative leakage current of all connected equipment is less than 100 microamps. This UPS system features six IEC320 C13 hospital-grade outlets and has a hospital-grade IEC320 C14 plug on a 15 cm (6 in.) dongle. All six outlets provide both backup protection and surge protection rated to 340 joules. The SMX1200XLHG also features diagnostic LEDs as well as a USB port and a DB9 serial port that work with Tripp Lite's included PowerAlert software for safe unattended system shutdown and file saves in the event of a prolonged power failure. Application Usage This UPS contains a lead acid battery designed to be connected continuously to an AC power source except during brief power outages. It is not intended for frequent charge/discharge cycles such as mobile cart applications where the UPS is often disconnected from the power source. Using the SMX1200XLHG in this type of application will void the battery warranty Provides Ideal UPS Backup in Healthcare Facilities
|
| Output voltage | 230 V AC |
| Output voltage | 230 V AC |
| Package Contents |
|
| Package Contents |
|
| Plug/Connector Type | IEC 60320 C14 |
| Plug/Connector Type | IEC 60320 C14 |
| Product Line | SmartPro |
| Product Line | SmartPro |
| Product Name | SmartPro SMX1200XLHG 1000 VA Tower UPS |
| Product Name | SmartPro SMX1200XLHG 1000 VA Tower UPS |
| Product Type | Line-interactive UPS |
| Product Type | Line-interactive UPS |
| Receptacle Type | IEC 60320 C13 |
| Receptacle Type | IEC 60320 C13 |
| Software Included | PowerAlert Software |
| Software Included | PowerAlert Software |
| Typical Battery Recharge Time | 4.50 Hour |
| Typical Battery Recharge Time | 4.50 Hour |
| UPC Alternates | 037332140425 373321404254 818243171964 |
| UPC Alternates | 037332140425 373321404254 818243171964 |
| Weight (Approximate) | 45.50 lb |
| Weight (Approximate) | 45.50 lb |
| Width | 7.5" |
| Width | 7.5" |
