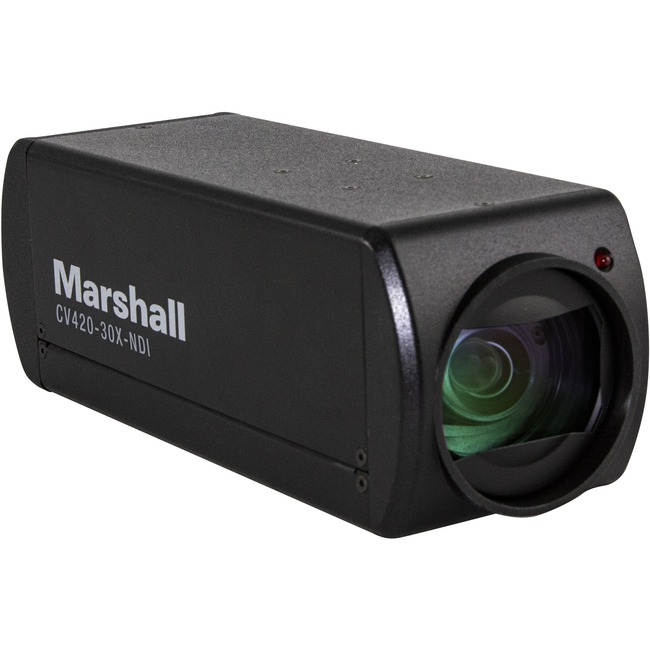

Marshall CV420-30X-NDI 8.5 Megapixel Indoor/Outdoor 4K Network Camera - Color - HEVC, H.264 - 3840 x 2160 - 4.60 mm- 135 mm Varifocal Lens - 30x Optical - CMOS - HDMI
HEVC, H.264 - 3840 x 2160 - 4.60 mm- 135 mm Varifocal Lens - 30x Optical - CMOS - HDMI
| Analog Video Signal Format | NDI |
| Field of View | Horizontal: 68 to 3.5° |
| Indoor/Outdoor | Indoor/Outdoor |
| Maximum Aperture | f/1.5 |
| Minimum Aperture | f/3.4 |
| Minimum Focal Length | 4.60 mm |
| Minimum Operating Temperature | 32°F (0°C) |
| Brand Name | Marshall |
| Color Supported | Color |
| Connectivity technology | Wired |
| Effective Camera Resolution | 8.5 Megapixel |
| Features | 2D Noise Reduction |
| Features | 3D Noise Reduction |
| Features | Mirror |
| Features | Day/Night |
| Features | Defog |
| Features | Dual Stream |
| Features | Automatic White Balance |
| Features | Wide Dynamic Range |
| Features | Audio Compression |
| HDMI | Yes |
| Image Sensor Type | CMOS |
| Input voltage | 12 V DC |
| Lens Type | Varifocal |
| Longest Shutter Speed | 1/1 Second |
| Manufacturer | Marshall Electronics Inc |
| Manufacturer Part Number | CV420-30X-NDI |
| Manufacturer Website Address | http://www.mars-cam.com |
| Marketing Information | The CV420-30X-NDI 30X optical zoom NDI® camera utilizes a professional grade 8.5-megapixel sensor to capture crisp HD video up to 3840x2160p at 60fps with support for all HD formats. Marshall's straight forward design and ease of use make this camera a valuable tool in a wide variety of broadcast and professional A/V applications. 30X Optical Zoom
The 30X optical zoom block offers an extensive zoom range from 4.6mm to 135mm starting at 68° all the way out to 3° horizontal angle-of-view for maintaining image crispness from ultra-wide to long telephoto shots. NDI® Workflow
To keep your productions looking great NDI® preserves visual quality frame accuracy and source synchronization. NDI® also opens a wide range of NDI® Tools available to make your new camera easily discoverable controllable adjustable and consumable into NDI® workflows.
Low-light Sensitivity
The CV420-30X-NDI operates with exceptional low-light sensitivity ensuring a clear picture in variable and challenging lighting conditions including live events houses of worship indoor or outdoor sporting events and other dynamic lighting environments.
NDI® Network
Ideal for use in NDI® networked and A/V installations the CV420-30X-NDI offers the convenience of NDI®|HX2. and HDMI simultaneous outputs with stereo audio embedding.
|
| Maximum Focal Length | 135 mm |
| Maximum frame rate | 60 fps |
| Maximum Operating Temperature | 104°F (40°C) |
| Maximum Video Resolution | 3840 x 2160 |
| Optical zoom | 30x |
| Power source type | DC |
| Product Name | CV420-30X-NDI 4K60 30x NDI & HDMI |
| Product Type | Network Camera |
| Recording Formats | 4K |
| Shortest Shutter Speed | 1/10000 Second |
| UPC Alternates | 801813192445 |
| Video Formats | H.264 |
| Video Formats | HEVC |
| Weight (Approximate) | 2.20 lb |
