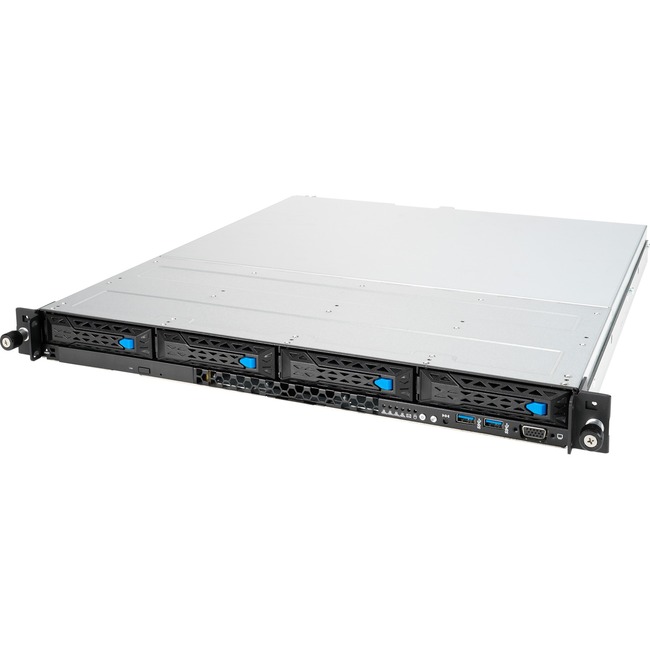

Asus Barebone System - 1U Rack-mountable - Socket LGA-1200 - 1 x Processor Support - Intel C252 Chip - 128 GB DDR4 SDRAM DDR4-3200/PC4-25600 Maximum RAM Support - 4 Total Memory Slots - Serial ATA/600 RAID Supported Controller - ASPEED AST2600 64 MB Graphic(s) - 4 3.5" Bay(s) - 6 SATA Interface(s) - Processor Support (Xeon, Pentium) - Gigabit Ethernet - 2 USB 3.2 Gen 1 Port(s) - 2 x 450 W - 1 Year
Intel C252 Chip - 128 GB DDR4 SDRAM DDR4-3200/PC4-25600 Maximum RAM Support - 4 Total Memory Slots - Serial ATA/600 RAID Supported Controller - ASPEED AST2600 64 MB Graphic(s) - 4 3.5" Bay(s) - 6 SATA Interface(s) - Processor Support (Xeon, Pentium) - Gigabit Ethernet - 2 USB 3.2 Gen 1 Port(s) - 2 x 450 W - 1 Year
| Chipset | Intel C252 |
| Chipset Manufacturer | Intel |
| Chipset Model | C252 |
| Graphics Controller Manufacturer | ASPEED |
| Graphics Controller Model | AST2600 |
| Graphics Memory Capacity | 64 MB |
| Maximum Memory Supported | 128 GB |
| Maximum Power Supply Wattage | 450 W |
| Memory Standard | DDR4-3200/PC4-25600 |
| Number of External 5.25" Bays | 1 |
| Number of Power Supplies Installed | 2 |
| Number of SATA Interfaces | 6 |
| Number of Total Expansion Slots | 3 |
| Processor Socket | Socket LGA-1200 |
| Processor Supported | Xeon |
| Processor Supported | Pentium |
| Supported Storage Drive Interfaces | Serial ATA III |
| Supported Storage Drive Types | SSD |
| Supported Storage Drive Types | HDD |
| Brand Name | Asus |
| Controller Type | Serial ATA/600 |
| Depth | 19.6" |
| Environmental Certification | RoHS |
| Environmentally Friendly | Yes |
| Ethernet Technology | Gigabit Ethernet |
| Form factor | Rack-mountable |
| Height | 1.7" |
| Input voltage | 120 V AC |
| Input voltage | 230 V AC |
| Limited Warranty | 1 Year |
| Manufacturer | ASUS Computer International |
| Manufacturer Part Number | RS300-E11-WOCPU011Z |
| Manufacturer Website Address | http://usa.asus.com |
| Marketing Information | KEY FEATURES - Ideal for remote office/branch office (ROBO) use and everyday business environments
- Powered by eight-core Intel Xeon E-2300-series processor with support for up to 95 W TDP
- Four 3.5" or 2.5" hot-swap drives on front panel and one M.2 to enable extensive storage
- Up to two PCIe® 4.0 slots and one PCIe® 3.0 proprietary slot to drive higher bandwidth
- High power efficiency with redundant 450 W 80 PLUS Platinum power supplies
- Dual Intel I210AT Gigabit Ethernet with teaming support
- Onboard ASUS ASMB10-iKVM for out-of-band management with ASPEED AST2600 controller
- Integrated PFR FPGA as the platform Root-of-Trust solution for firmware resiliency
Intel Xeon E-2300 processors Small businesses require reliability and security to support their critical business and customer data needs. Available with up to eight cores and featuring a TDP of up to 95 watts Intel Xeon E-2300 processors deliver essential server performance expandability and reliability small businesses to support critical business and customer data needs. PCIe 4.0 Ready PCI Express® (PCIe®) 4.0 delivers 16 GT/s bandwidth which is double the speed of PCIe 3.0 offering lower power consumption better lane scalability and backwards compatibility. ASUS RS300-E11 servers are PCIe 4.0 ready to support a diverse array of graphics storage and networking - enabling flexible scalability for demanding or increasing workloads. Redundant Platinum PSU support RS300-E11-RS4 supports redundant 450W 80 PLUS Platinum power supplies which are 96%+ efficient directly reducing operating costs and capital expenses. The 1+1 power-supply design allows the server to keep working even if one power supply requires maintenance enabling uninterrupted operation. Enhanced security ASUS RS300-E11 servers integrate PFR FPGA as the platform Root-of-Trust solution for firmware resiliency to prevent from hackers from gaining access to infrastructure. ASUS security solutions are fully compliant with the 2018 National Institute of Standards and Technology (NIST) SP 800 193 specification.
In addition all RS300-E11 servers also include support Trusted Platform Module 2.0 (TPM 2.0) to secure hardware through integrated cryptographic keys and offer regular firmware update for vulnerabilities. High-resolution HDMI monitoring RS300-E11 server features a HDMI 1.4 port directed from CPU to offer higher-resolution monitoring and easier maintenance for IT administrators in business environments. A VGA port directed from BMC is also available for dual-display monitoring. |
| Memory Technology | DDR4 SDRAM |
| Number of Total Expansion Bays | 5 |
| Number of Total Memory Slots | 4 |
| Product Name | RS300-E11-RS4 Barebone System |
| Product Series | RS300-E11-RS4 |
| Product Type | Barebone System |
| Rack Height | 1U |
| UPC Alternates | 195553518482 |
| Weight (Approximate) | 22.71 lb |
| Width | 17.3" |
