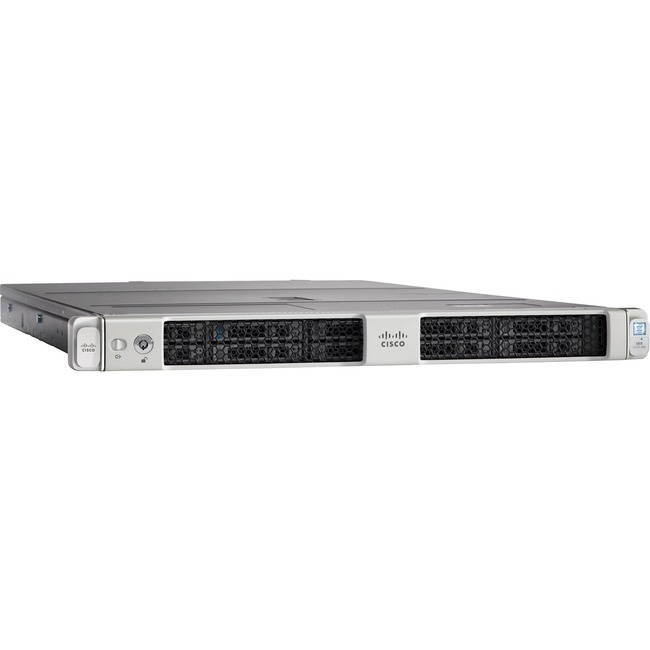

Cisco Barebone System - 1U Rack-mountable - 2 x Processor Support - Intel C620 Chip - 3 TB DDR4 SDRAM DDR4-2666/PC4-21300 Maximum RAM Support - 24 Total Memory Slots - 12Gb/s SAS RAID Supported Controller - ASPEED Pilot 4 16 MB Graphic(s) - 10 2.5" Bay(s) - Processor Support (Xeon) - 10 Gigabit Ethernet, Gigabit Ethernet - 2 USB 3.0 Port(s)
Intel C620 Chip - 3 TB DDR4 SDRAM DDR4-2666/PC4-21300 Maximum RAM Support - 24 Total Memory Slots - 12Gb/s SAS RAID Supported Controller - ASPEED Pilot 4 16 MB Graphic(s) - 10 2.5" Bay(s) - Processor Support (Xeon) - 10 Gigabit Ethernet, Gigabit Ethernet - 2 USB 3.0 Port(s)
| 64-bit Processing | Yes |
| Chipset | Intel C620 |
| Chipset Manufacturer | Intel |
| Chipset Model | C620 |
| Graphics Controller Manufacturer | ASPEED |
| Graphics Controller Model | Pilot 4 |
| Graphics Memory Capacity | 16 MB |
| Maximum Memory Supported | 3 TB |
| Memory Standard | DDR4-2666/PC4-21300 |
| Number of Internal 2.5" Bays | 10 |
| Number of Processors Supported | 2 |
| Processor Supported | Xeon |
| Brand Name | Cisco |
| Controller Type | 12Gb/s SAS |
| Depth | 31" |
| Ethernet Technology | 10 Gigabit Ethernet |
| Ethernet Technology | Gigabit Ethernet |
| Form factor | Rack-mountable |
| Height | 1.7" |
| Input voltage | 230 V AC |
| Input voltage | 120 V AC |
| Manufacturer | Cisco Systems Inc |
| Manufacturer Part Number | UCSC-C220-M5SX |
| Manufacturer Website Address | http://www.cisco.com |
| Marketing Information | The UCS C220 M5 SFF server extends the capabilities of Cisco's Unified Computing System portfolio in a 1U form factor with the addition of the Intel® Xeon® Processor Scalable Family 24 DIMM slots for 2666MHz DIMMs and up to 128GB capacities two 2 PCI Express (PCIe) 3.0 slots and up to 10 SAS/SATA hard disk drives (HDDs) or solid state drives (SSDs). The C220 M5 SFF server also includes one dedicated internal slot for a 12G SAS storage controller card.
The C220 M5 server included one dedicated internal modular LAN on motherboard (mLOM) slot for installation of a Cisco Virtual Interface Card (VIC) or third-party network interface card (NIC) without consuming a PCI slot in addition to 2 x 10Gbase-T Intel x550 embedded (on the motherboard) LOM ports.
The Cisco UCS C220 M5 server can be used standalone or as part of the Cisco Unified Computing System which unifies computing networking management virtualization and storage access into a single integrated architecture enabling end-to-end server visibility management and control in both bare metal and virtualized environments. |
| Memory Technology | DDR4 SDRAM |
| Number of Total Memory Slots | 24 |
| Product Name | UCS C220 M5 Barebone System |
| Product Series | C220 M5 |
| Product Type | Barebone System |
| Rack Height | 1U |
| UPC Alternates | 889728014144 889728014151 |
| Weight (Approximate) | 37.50 lb |
| Width | 19" |
