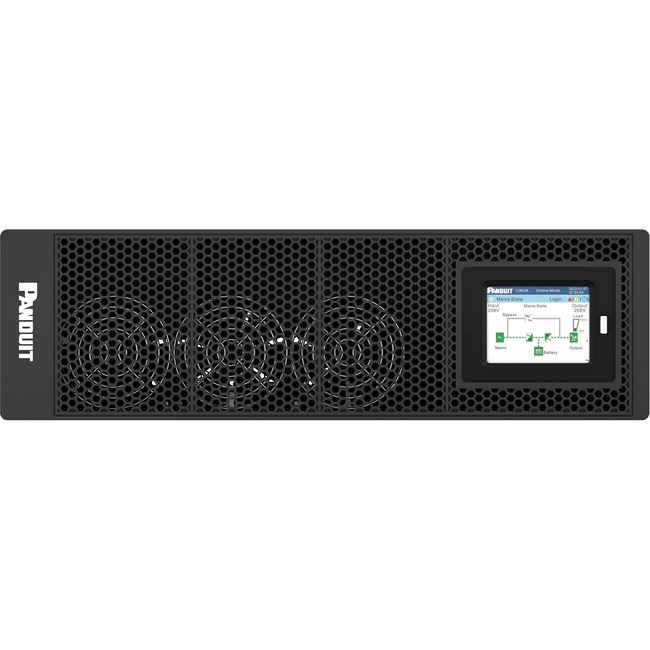

Panduit SmartZone U06S11V 6000VA Rack/Tower UPS - 2U Rack/Tower, Rail Mountable - AVR - 6 Hour Recharge - 120 V AC, 230 V AC Input - 208 V AC, 240 V AC Output - Single Phase - Serial Port - 2 x NEMA L6-30
2U Rack/Tower, Rail Mountable - AVR - 6 Hour Recharge - 120 V AC, 230 V AC Input - 208 V AC, 240 V AC Output - Single Phase - Serial Port - 2 x NEMA L6-30
| Backup/Run Time With External Battery Cabinet (Full Load) | 9.70 Minute |
| Backup/Run Time With External Battery Cabinet (Full Load) | 9.70 Minute |
| Backup/Run Time With External Battery Cabinet (Half Load) | 25.30 Minute |
| Backup/Run Time With External Battery Cabinet (Half Load) | 25.30 Minute |
| DC System Voltage | 240 V DC |
| DC System Voltage | 240 V DC |
| Load Capacity (VA) | 6000 VA |
| Load Capacity (VA) | 6000 VA |
| Load Capacity (W) | 6000 W |
| Load Capacity (W) | 6000 W |
| Maximum Operating Elevation | 9842.52 ft |
| Maximum Operating Elevation | 9842.52 ft |
| Output Frequency | 60 Hz |
| Output Frequency | 60 Hz |
| Phase | Single Phase |
| Phase | Single Phase |
| Receptacle Detail | 2 x NEMA L6-30 |
| Receptacle Detail | 2 x NEMA L6-30 |
| Storage Temperature | -13°F (-25°C) - 131°F (55°C) |
| Storage Temperature | -13°F (-25°C) - 131°F (55°C) |
| Waveform Type | Pure Sine Wave |
| Waveform Type | Pure Sine Wave |
| Additional Warranty Information | - 3 Years for UPS & EBP
- 2 Years for Battery
|
| Additional Warranty Information | - 3 Years for UPS & EBP
- 2 Years for Battery
|
| Application/Usage | Data Center |
| Application/Usage | Computer |
| Application/Usage | IT Equipment |
| Application/Usage | Edge Computing |
| Application/Usage | Computer |
| Application/Usage | IT Equipment |
| Application/Usage | Data Center |
| Application/Usage | Edge Computing |
| Battery capacity | 9000 mAh |
| Battery capacity | 9000 mAh |
| Battery Characteristics | Valve-regulated Maintenance-free Hot-swappable |
| Battery Characteristics | Valve-regulated Maintenance-free Hot-swappable |
| Battery Chemistry | Sealed Lead Acid (VRLA) |
| Battery Chemistry | Sealed Lead Acid (VRLA) |
| Battery life | 5 Year |
| Battery life | 5 Year |
| Battery Size | 12V |
| Battery Size | 12V |
| Brand Name | Panduit |
| Brand Name | Panduit |
| Dataline Protection | RJ-45 |
| Dataline Protection | RJ-45 |
| Depth | 26.2" |
| Depth | 26.2" |
| Environmental Certification | REACH |
| Environmental Certification | ENERGY STAR 2.0 |
| Environmental Certification | RoHS |
| Environmental Certification | REACH |
| Environmental Certification | ENERGY STAR 2.0 |
| Environmental Certification | RoHS |
| Form factor | Rail Mountable |
| Form factor | Rail Mountable |
| Form factor | Rack/Tower |
| Form factor | Rack/Tower |
| Height | 5.2" |
| Height | 5.2" |
| Hot Swappable | Yes |
| Hot Swappable | Yes |
| Input frequency | 70 Hz |
| Input frequency | 70 Hz |
| Input voltage | 120 V AC |
| Input voltage | 230 V AC |
| Input voltage | 230 V AC |
| Input voltage | 120 V AC |
| Input Voltage Range | 185 V AC - 264 V AC |
| Input Voltage Range | 110 V AC - 285 V AC |
| Input Voltage Range | 110 V AC - 285 V AC |
| Input Voltage Range | 185 V AC - 264 V AC |
| Limited Warranty | 3 Year |
| Limited Warranty | 3 Year |
| Load Capacity | 6000 VA/6000 W |
| Load Capacity | 6000 VA/6000 W |
| Manufacturer | PANDUIT CORP |
| Manufacturer | PANDUIT CORP |
| Manufacturer Part Number | U06S11V |
| Manufacturer Part Number | U06S11V |
| Manufacturer Website Address | http://www.panduit.com |
| Manufacturer Website Address | http://www.panduit.com |
| Marketing Information | The Panduit® SmartZone™ UPS with maintenance free VRLA battery 5-10kVA single phase 208 V and 230 V units is a pure Online Double Conversion system that delivers highly efficient and reliable power protection and power backup for your computer IT equipment. With excellent electrical performance enhanced intelligent monitoring and network functions complying with ENERGY STAR® 2.0 EMC and safety standards to meet the continually growing power demands of Data Center Enterprise and Edge IT Infrastructure. |
| Marketing Information | The Panduit® SmartZone™ UPS with maintenance free VRLA battery 5-10kVA single phase 208 V and 230 V units is a pure Online Double Conversion system that delivers highly efficient and reliable power protection and power backup for your computer IT equipment. With excellent electrical performance enhanced intelligent monitoring and network functions complying with ENERGY STAR® 2.0 EMC and safety standards to meet the continually growing power demands of Data Center Enterprise and Edge IT Infrastructure. |
| Maximum Operating Temperature | 104°F (40°C) |
| Maximum Operating Temperature | 104°F (40°C) |
| Number of Batteries | 20 |
| Number of Batteries | 20 |
| Output voltage | 208 V AC |
| Output voltage | 240 V AC |
| Output voltage | 208 V AC |
| Output voltage | 240 V AC |
| Plug/Connector Type | Hard Wire 3-wire (2PH + G) |
| Plug/Connector Type | Hard Wire 3-wire (2PH + G) |
| Product color | Black |
| Product color | Black |
| Product Line | SmartZone |
| Product Line | SmartZone |
| Product Name | SmartZone U06S11V 6000VA Rack/Tower UPS |
